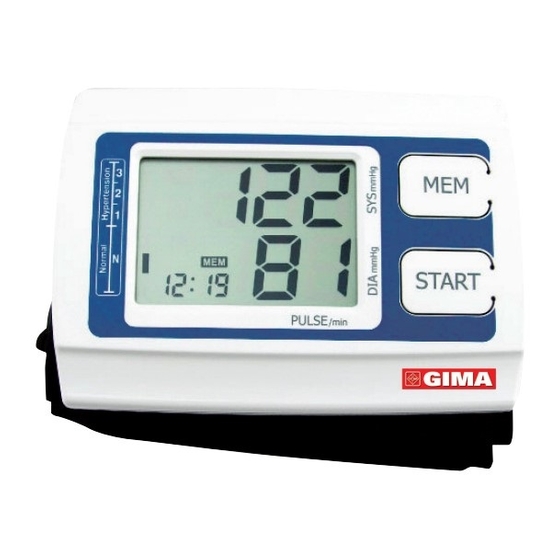

Smart automatic blood pressure monitor
Hide thumbs Also See for KD-558:
Table of Contents

Advertisement

Quick Links

PROFESSIONAL MEDICAL PRODUCTS
SFIGMOMANOMETRO AUTOMATICO SMART
SMART AUTOMATIC BLOOD PRESSURE MONITOR
TENSIOMÈTRE AUTOMATIQUE SMART
TENSIÓMETRO AUTOMATICO SMART
ESFIGMOMANÔMETRO AUTOMÁTICO SMART
SMART AUTOMATISCHES BLUTDRUCKMESSGERÄT
AUTOMATYCZNY SFIGMOMANOMETR SMART
ΑΥΤΌΜΑΤΌ ΣΦΥΓΜΌΜΑΝΌΜΕΤΡΌ SMART
SMART
32921 / KD-558
ANDON HEALTH CO., LTD.
No. 3 JinPing Street, Ya An Road,
Nankai District, Tianjin 300190, China
Made in China
iHealthLabs Europe SAS
36 Rue de Ponthieu,
75008, Paris, France
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
0197

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-558 and is the answer not in the manual?

Questions and answers

Related Manuals for Gima KD-558

Summary of Contents for Gima KD-558

  • Page 1 TENSIÓMETRO AUTOMATICO SMART ESFIGMOMANÔMETRO AUTOMÁTICO SMART SMART AUTOMATISCHES BLUTDRUCKMESSGERÄT AUTOMATYCZNY SFIGMOMANOMETR SMART ΑΥΤΌΜΑΤΌ ΣΦΥΓΜΌΜΑΝΌΜΕΤΡΌ SMART SMART 32921 / KD-558 0197 ANDON HEALTH CO., LTD. No. 3 JinPing Street, Ya An Road, Nankai District, Tianjin 300190, China Made in China iHealthLabs Europe SAS...

  • Page 2: Table Of Contents

    ENGLISH INDEX IMPORTANT INFORMATION ..............21 CONTENTS AND DISPLAY INDICATORS ..........21 INTENDED USE ..................22 CONTRAINDICATION ................22 PACKAGE CONTENTS ................. 22 PRODUCT DESCRIPTION ..............22 SPECIFICATIONS .................. 23 NOTICE ....................23 SETUP AND OPERATING PROCEDURES ........... 26 Battery loading ................26 Clock and date adjustment ............

  • Page 3: Important Information

    ENGLISH IMPORTANT INFORMATION Normal blood pressure fluctuation All physical activity, excitement, stress, eating, drinking, smoking, body posture and many other activities or factors (including taking a blood pressure meas- urement) will influence blood pressure value. Because of this, it is mostly unu- sual to obtain identical multiple blood pressure readings.

  • Page 4: Intended Use

    ENGLISH INTENDED USE Fully Automatic Electronic Sphygmomanometer is for use by medical profes- sionals or at home and is a non-invasive blood pressure measurement system intended to measure the diastolic and systolic blood pressures and pulse rate of an adult individual by using a non-invasive technique in which an inflatable cuff is wrapped around the upper arm.

  • Page 5: Specifications

    ENGLISH SPECIFICATIONS 1. Product name: Arm Blood Pressure Monitor 2. Model: KD-558 3. Classification: Internally powered, Type BF applied part, IP20, No AP or APG, Continuous operation 4. Machine size: Approx. 138mm × 98mm × 48mm (5 7/16” x 3 27/32” x 1 7/8”) 5.
  • Page 6 ENGLISH 5. Measuring on same arm for each measurement. 6. Please always relax at least 1 or 1.5 minutes between measurements to allow the blood circulation in your arm to recover. Prolonged over-infla- tion (cuff pressure exceed 300 mmHg or maintained above15 mmHg for longer than 3 minutes) of the bladder may cause ecchymoma of your arm.
  • Page 7 ENGLISH Please do not share the cuff with other infective person to avoid cross-in- fection. 16. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 8: Setup And Operating Procedures

    ENGLISH SETUP AND OPERATING PROCEDURES 1. Battery loading a. Open battery cover at the back of the monitor. b. Load four “AA” size batteries. Please pay attention to polarity. c. Close the battery cover. When LCD shows battery symbol , replace all batteries with new ones. Rechargeable batteries are not suitable for this monitor.

  • Page 9: Connecting The Cuff To The Monitor

    ENGLISH c. You can turn off the monitor by pressing “START” button when the minute is blinking, then the time and date is confirmed. d. The monitor will turn off automatically after 1 minute of no operation, with the time and date unchanged. e.

  • Page 10: Body Posture During Measurement

    ENGLISH Note: 1. Please refer to the cuff circumference range in “SPECIFICATIONS” to make sure that the appropriate cuff is used. 2. Measuring on same arm each time. 3. Do not move your arm, body, or the monitor and do not move the rubber tube during measurement.

  • Page 11: Displaying Stored Results

    ENGLISH Picture 6 Picture 6-1 Picture 6-2 c. After selecting the memory bank, the monitor starts to seek zero pressure. See picture 6-3. d. The monitor inflates the cuff until sufficient pressure has built up for a meas- urement. Then the monitor slowly releases air from the cuff and carries out the measurement.
  • Page 12 ENGLISH Picture 7 Picture 7-1 Picture 7-2 b. Alternatively, press “MEM” button in Clock Mode to display the stored results. The current memory bank will blink and the amount of results in this bank will be displayed. See picture 7-1. Press “START” button to change over to other bank.

  • Page 13: Deleting Measurements From The Memory

    ENGLISH Picture 7-8 Picture 7-9 e. When displaying the stored results, the monitor will turn off automatically after 1 minute of no operation. You can also press the button “START” to turn off the monitor manually. 8. Deleting measurements from the memory When any result (except average reading of the last three results) is displaying, keeping on pressing button “MEM”...

  • Page 14: Technical Alarm Description

    ENGLISH Sistolic (mmHg) BLOOD PRESSURE CLASSIFICATION mmHg mmHg Severe Hypertension Optimal <120 <80 Moderate Hypertension Normal 120-129 80-84 Mild Hypertension High-Normal 130-139 85-89 High-normal BP Grade 1 Hypertension 140-159 90-99 Grade 2 Hypertension Normal BP 160-179 100-109 Grade 3 Hypertension ≥180 ≥110 WHO/ISH Definitions and classification of blood...

  • Page 15: Troubleshooting 2

    ENGLISH 12. Troubleshooting 2 PROBLEM POSSIBLE CAUSE SOLUTION LCD shows low battery Low Battery Change the batteries symbol Pressure system is unstable LCD shows “Er 0” before measurement Don’t move and try again LCD shows “Er 1” Fail to detect systolic pressure LCD shows “Er 2”...
  • Page 16 ENGLISH 9. The monitor can maintain the safety and performance characteristics for a minimum of 10,000 measurements or three years, and the cuff can maintain the performance characteristics for a minimum of 1000 measurements. 10. It is recommended the cuff should be disinfected 2 times every week if needed (For example, in hospital or in clinique).

  • Page 17: Explanation Of Symbols On Unit

    ENGLISH EXPLANATION OF SYMBOLS ON UNIT Product code Lot number Keep in a cool, dry place Keep away from sunlight Manufacturer Date of manufacture Medical Device complies with Directive 93/42/EEC Caution: read instructions (warnings) carefully WEEE disposal Follow instructions for use Authorized representative in the European community Serial number Type BF applied part...

  • Page 18: Electromagnetic Compatibility Information

    ENGLISH ELECTROMAGNETIC COMPATIBILITY INFORMATION Table 1 Emission Phenomenon Compliance Electromagnetic environment RF emissions CISPR 11 Home healthcare environment Group 1, Class B Harmonic distortion IEC 61000-3-2 Home healthcare environment Class A Voltage fluctuations and flicker IEC 61000-3-3 Home healthcare environment Compliance Table 2 Enclosure Port...
  • Page 19 Disposal: The product must not be disposed of along with other do- mestic waste. The users must dispose of this equipment by bringing it to a specific recycling point for electric and electronic equipment. GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
