8. Target Board

The C8051F336 Development Kit includes a target board with a C8051F338 device pre-installed for evaluation and
preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping
using the target board. Refer to Figure 3 for the locations of the various I/O connectors. Figure 4 on page 8 shows
the factory default shorting block positions. A summary of the signal names and headers is provided in Table 6 on
page 13.
P1 Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
P2 USB connector (connects to PC for serial communication)
J1 26-pin Expansion I/O connector
J2 MCU power header (VDD)
J3 Port I/O configuration header
J4 DEBUG connector for Debug Adapter interface
J5 USB connector for UART0 interface
J6 Connects pin P0.1 to node IDAC and resistor R2
J7, J8 Connects the potentiometer (R14) to pin P1.6 and +3VD
J9, J10 External crystal enable connectors
J11 Touch Sense Switch connection header
TB1 Analog I/O terminal block
Pin 2
J11
Pin 1
R14
SW3
J7 J8
P1.3
D7
Pin 1 Pin 2
J6
J1
J5
SILICON LABS
www.silabs.com
TB1
+3VD
GND
Pin 1
Prototype Area I/O Connection Points

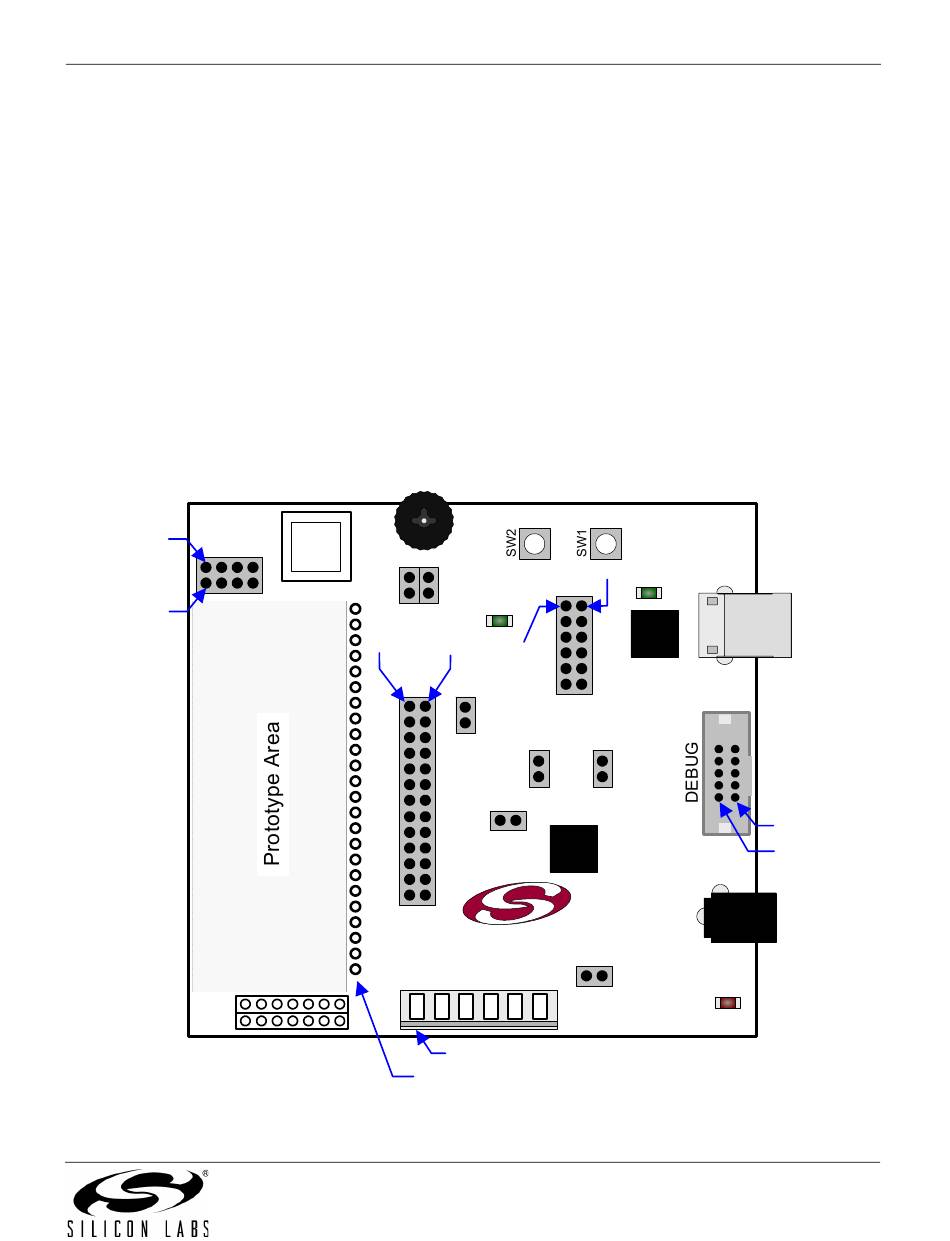

Figure 3. C8051F338 Target Board
