  • Page 2 Statement The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................2 2. Hardware Specifications ................2 3. Hardware Usage Instruction ................4 3.1 Dimensions Chart ..................4 3.2 Interface Definition ................... 5 3.2.1 Jumper, Header and Interface Diagram ..........5 3.2.2 Jumper and Header Definition............6 3.3 Accessories Installation Steps ..............

  • Page 4: Product Introduction

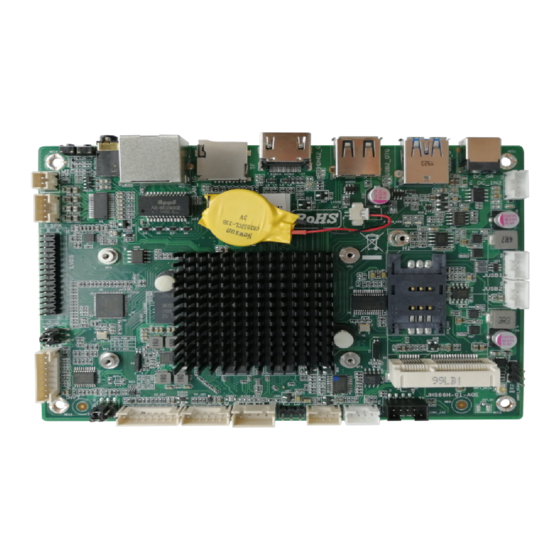

    1. Product Introduction Embedded motherboard IBC-381 adopts RK3328 Quad-core ARM Cortex-A53 CPU. With one LVDS (Optional: HDMI) display output, it supports 4K resolution. The board is suitable to be applied in all-in-one digital signage solution, POS and smart control applications.
  • Page 5 eMMC Onboard 16GB, Up to 64GB Storage TF Card 1 x TF Card Reader WatchDog Timer 0~255 Second Time Out Support Auto Power On Power Activated Automatically Start JAHC Set Up Independently Every day, A Week as a Cycle Wake On LAN Remote wakeup in the same LAN Operation Android7.1...

  • Page 6: Hardware Usage Instruction

    3. Hardware Usage Instruction 3.1 Dimensions Chart - 4 -...

  • Page 7: Interface Definition

    3.2 Interface Definition 3.2.1 Jumper, Header and Interface Diagram - 5 -...

  • Page 8: Jumper And Header Definition

    3.2.2 Jumper and Header Definition Jumper/Hea Name Function PIN Definition DCIN DC_IN2 DC IN PIN MIC PIN SPEAKER SPEAKER PIN LVDS LVDS LVDS PIN LVDS_P LVDS_PWR_ LVDS_PWR_ SEL PIN - 6 -...
  • Page 9 INVETER INVETER INVT BACKLIGHT PIN LVDS SETTING; 1-3:1PORT LVDS_ LVDS_SET 3-5:2PORT 2-4:8bit 4-6:6bit IO_KEY KEY KEYPAD PIN TP_I2C：I2C TOUCH TP_I2C TP_I2C PANEL JLED1 JLED1 LED PIN INFRARED JIR1 JIR1 RECEIVER PIN - 7 -...

  • Page 10: Accessories Installation Steps

    EITHER OF F_COM1_TTL COM1_ F_COM1_TTL AND F_COM1_232 F_COM1 EITHER OFF_COM1_ F_COM1_232 _232 TTLAND F_COM1_232 UART2_ DEBUGGING SERIAL UART2_DEBUG DEBUG PORT JUSB1 JUSB USB PIN*2 JUSB2 3.3 Accessories Installation Steps For safety reasons, please ensure that the board is disconnected with power before installation.

  • Page 11: Sim Card Installation

    3.3.2 SIM Card Installation This product supports standard SIM card with the size of 25mm × 15mm. 1. [Open] the SIM card holder and pull it up. 2. Insert the SIM card. 3. [Lock] the card holder. - 9 -...

  • Page 12: Firmware Upgrade Guide

    Host PC with screen and installed the Windows operation system. USB OTG Cable (RP-SMA Male↔RP-SMA Male).  After you get the Archive from Giada technical support, copy the Archive to your host PC, you will find below files inside: ...
  • Page 13 b. Apply all changes and warnings during the installation. c. Click “ok” after the installation finish 4.2.2. Connect the motherboard with host PC In order to connect the motherboard with Host PC and run bootloader mode, you should perform following steps: - 11 -...

  • Page 14: Connect The Motherboard With Host Pc

    a. Please ensure that the power of the motherboard is disconnected. b. Run Android tool V2.38 under the windows of the host PC. c. Connect motherboard to the host PC via usb OTG port. Firstly, hold the motherboard recovery button (please refer to fig1 for the location of the button), then connect the power adaptor to the motherboard, you will see “Found a MSC Device”...

  • Page 15: Start The Firmware Updating

    4.2.3. Start the firmware updating a. Click “Firmware” button and specify the path to the firmware file which is stored in the host PC (Please refer to Fig2). b. Wait around 5 seconds to upload the program, FW information will display on the screen. After the “Upgrade”...
  • Page 16 c. In the end, you will see a report indicating a successful operation. - 14 -...

  • Page 17: Jahc App

    The user can set up automatic startup and shutdown, one week as a circle. 5.2 Startup(open) & shutdown(close) time setup System Requirements:  Giada player with JAHC APP function.  Android OS includes JAHC APP（please refer to Fig1）. (Fig1) a. After enter the android desktop, click the JAHC APP icon and the JAHC interface will pop up...
  • Page 18 ‘New’ button to set open time (Fig3) and then click Close time button to set close time. One Click week as a circle, maximum 3 schedules per day. Select each schedule to set up the Open time and Close time. c.
  • Page 19 (Fig5) Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down - 17 -...
  • Page 20 - 18 -...
