  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................3 2. Interface Description and Hardware Specifications ........3 2.1 Interface Description .................. 4 2.2 Hardware Specifications ................5 3. Accessories Installation Steps ................. 6 3.1 Memory Installation ..................7 3.2 MSATA/WiFi/3G/4G Installation ..............8 3.3 SSD(M.2) Installation ..................
  • Page 4 4.2.6 HM Monitor and Smart Fan .............. 22 4.2.7 OEM configuration ................24 4.2.8 System Devices Configuration ............25 4.3 Security Setup ..................... 26 4.4 Booting ......................27 4.5 Save & Exit ....................29 5. JAHC Introduction ..................30 5.1 Auto Power on .................... 30 5.2 JAHC Software ...................

  • Page 5: Product Introduction

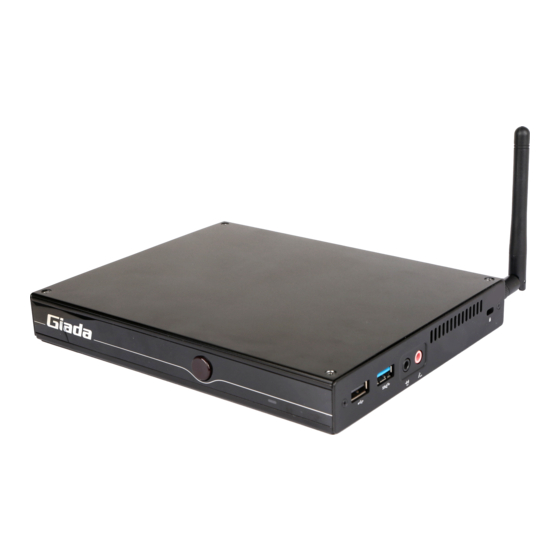

    Based on Intel ® Whiskey Lake platform, Giada D68 adopts DDR4 dual-channel memory as well as M.2 and mSATA storage interface design. With one DP and two HDMI display outputs, it supports 4K resolution. The player is suitable to be applied in high-end digital signage applications.

  • Page 6: Hardware Specifications

    Left I/O Port Right I/O port 2.2 Hardware Specifications D68-N1-8145U40M0G D68-N1-8265U40M0G ® ® Intel Core i3-8145U Intel Core i5-8265U Processor Frequency 1.60 GHz (Up to 3.90 GHz) 2.10 GHz (Up to 3.90 GHz) BIOS AMI Source Code Chipset Type DDR4-2400MHz Memory Socket 2 x SO-DIMM...
  • Page 7 5 x USB 3.1 Serial Port 1 x RS232 Audio 1 x MIC-IN, 1 x AUDIO-OUT I/O Interface M.2 (2230) 1 x M.2 (2230) for WiFi 1 x SIM Slot Mini PCIe 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G mSATA 1 x Full-size mSATA (Optional) Storage 1 x M.2 (2242/2280) for SSD JAHC...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and remove the top cover. (SO-DIMM #1, mini PCIE slot for MSATA/WIFI/3G/4G, M.2 for SSD and SIM card slot are on top side) Unscrew the four screws, push the bottom cover and remove it.

  • Page 9: Memory Installation

    3.1 Memory Installation This product only supports DDR4 SO-DIMM memory modules. 1. Locate the SO-DIMM slot on the board. 2. Gently insert the module into the slot in a 45-degree angle. 3. Carefully push down the memory module until it snaps into the locking mechanism. - 7 -...

  • Page 10: Msata/Wifi/3G/4G Installation

    3.2 MSATA/WIFI/3G/4G Installation  MSATA Installation 1. Plug the MSATA module into the mini PCIE slot. 2. Secure the module to the carrier by tightening up the screw.  WIFI Installation 1. Tighten the WIFI module and WIFI module bracket with screws. 2.

  • Page 11: Ssd(M.2) Installation

    3.3 SSD (M.2) Installation 1. Plug the SSD (M.2) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3.4 WIFI (M.2) Installation 1. Plug the WIFI module into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3.

  • Page 12: Sim Card Installation

    3.5 SIM Card Installation This product supports standard SIM card with the size of 25mm × 15mm. 1. [Open] the SIM card holder and pull it up. 2. Insert the SIM card. 3. [Lock] the card holder. - 10 -...

  • Page 13: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded.Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 14 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 15 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities,CPU, HDD, etc. 3) Security (set the administrator/user password) 4) Boot (startup configuration characteristics) 5) Save &...

  • Page 16: Main (Standard Cmos) Setup

    4.1 Main (Standard CMOS Setup) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 14 -...

  • Page 17: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS Setup) 4.2.1 ACPI Setting - 15 -...

  • Page 18: Cpu Configuration

    ACPI Options Description You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state Suspend Disabled: Disable system Suspend.  S3 (Suspend to RAM): Enable S3(Suspend to RAM)  State After G3 means after restore power supply. ...
  • Page 19 The menu Description CPU Configuration Max Non-Turbo Performance: the best performance.  Boot performance mode  Max Battery.  Turbo performance. Intel Virtualization Technology is enabled by default. User Intel (VMX) Virtualization Technology can enable and disable the Intel Virtualization Technology function.

  • Page 20: Graphics Configuration

    4.2.3 Graphics Configuration Options Description Graphics Configuration Primary Display options include Auto, IGFX, PEG, PCI, SG mode and The Primary Display is Auto mode by default.  Auto: It means the discrete graphics is primary display.  IGFX: It means the Intel's integrated graphics is primary display.

  • Page 21: Trusted Computing

    4.2.4 Trusted Computing Options Description Trusted Computing TPM20 Device Found Firmware Version: It shows the information of TPM device. Vendor: Disable or Enable the SHA-1 PCR Bank. The option is enabled SHA-1 PCR Bank by default. Disable or Enable the SHA256 PCR Bank. The option is SHA256 PCR Bank enabled by default.

  • Page 22: Csm Configuration

    TPM2.0 UEFI Options, TCG_1_2 or TCG_2. The version is TPM2.0 UEFI spec version TCG_2 by default. Physical Presence Spec Version You can choose 1.2 or 1.3. The version is 1.3 by default. TPM 20 Interface Type TPM2.0 Interface Type is TIS by default. You can select TPM1.2 or TPM2.0 or Auto.
  • Page 23  Force BIOS. (This option is set by default) Option ROM Messages Keep Current.   Immediate (This option is set by default) INT19 Trap Response  Postponed.  Adjust. (This option is set by default) HDD Connection Order  Keep.

  • Page 24: Hm Monitor And Smart Fan

    4.2.6 HM monitor & Smart Fan. Pc Health Menu Description Pc Health Status It includes Full on mode Smart Fan manual mode " ", " " " ".  Full on mode. CPU Smart Fan Mode  Smart Fan: Smart Fan is enabled by default. ...
  • Page 25 Pc Health Menu Description limit value, the FAN will work at full speed.  1 PWM  2 PWM PWM slope1 setting  4 PWM  8 PWM  1 PWM 2 PWM  PWM slope2 setting  4 PWM ...

  • Page 26: Oem Configuration

    4.2.7 OEM Configuration OEM Menu Functions Description OEM Configuration JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology JAHC Enabled Manager).  Disabled: The JAHC is disable by default.  Enabled. Wake On LAN Function.

  • Page 27: System Devices Configuration

    4.2.8 System Devices Configuration Advanced Option Description System Devices Configuration SATA Controller. SATA Controller(s)  Disabled.  Enabled: The SATA controller is enabled by default.  AHCI: AHCI mode. SATA Mode Selection  Intel RST Premiun With Intel Optane System Acceleration: IRST mode.

  • Page 28: Security Setup

    4.3 Security Setup (set the administrator/user password) If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password.

  • Page 29: Booting

    4.4. Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, Setup Prompt Timeout it won't respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.
  • Page 30 Boot Item Description Boot Option #2 The second boot device. Boot Option #3 The third boot device. Boot Option #4 The fourth boot device. Boot Option #5 The fifth boot device. Boot Option #6 The sixth boot device. Boot Option #7 The seventh boot device.

  • Page 31: Save&Exit

    4.5 Save&Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices - 29 -...

  • Page 32: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 33 b. Select Advanced- > OEM configuration- > JAHC Enable- > Enabled. c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 31 -...

  • Page 34: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 35 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 33 -...
  • Page 36 d. Click [Install] button to continue the installation. - 34 -...

  • Page 37: Startup And Shutdown Time Setup

    Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup &...
  • Page 38 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 39: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 37 -...
  • Page 40 - 38 -...
