Giada F110D Series Assembly Manual

Giada F110D/F102D Series Assembly Guide v1.1
Thank you for choosing Giada product. In such an epoch of PC development, we launched Giada
Barebone which is characterized by the mini shape, vogue and ultra-thin structure, environment
friendly, Giada will allow you to undergo new experience in the field. This Guide shows you how to do
installation and uninstallation quickly and correctly.
WARNING:
This motherboard contains static-sensitive components and should be handled with care. Failure to employ
adequate anti-static measures can cause partial or complete device failure, performance degradation, or
reduced operating life. The battery must be replaced with the correct type of lithium cell battery; otherwise
there is a risk of damage to the motherboard. To avoid electrostatic discharge (ESD) damage upon handling
this product, it is strongly recommended that you wear a grounded wrist strap or other static dissipating
device.
CONTENT:
Memory, SSD, Wireless Module and HDD installation
Remark:
The picture shown in this document is only a model of our series products, the actual
object is subject to change depends on the model you purchase.

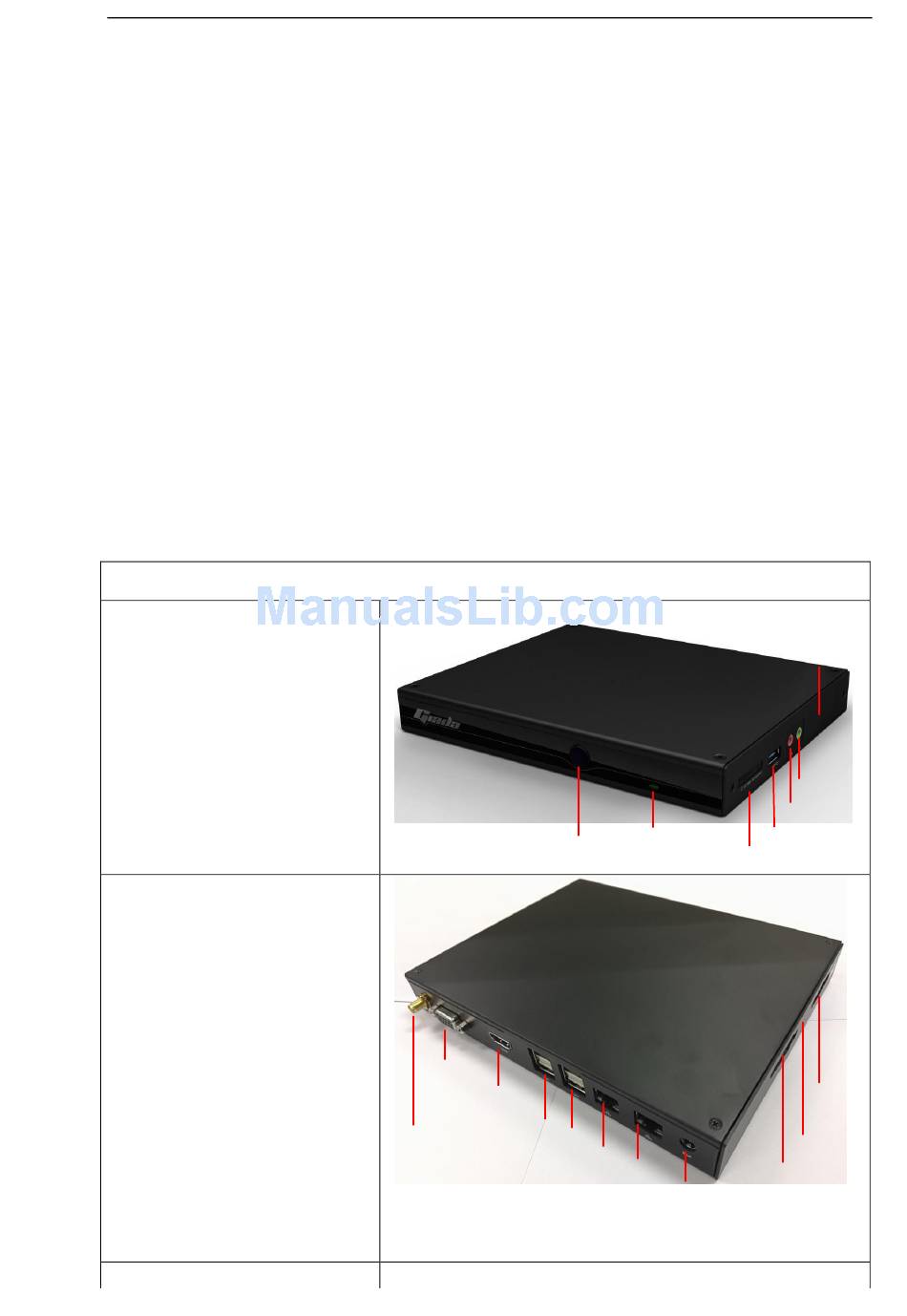

Part 1. Appearance

The Front and Right Panel.
The Back and Left Panel.
Power Switch
VGA
HDMI
For antenna
4*USB 2.0
Kensington
Lock Hole
Power LED
4 in 1 Card Reader
2*Rj45
DC-IN
Audio out
Mic in
USB Port
1*COM
Clear CMOS
1*COM
1 / 5
