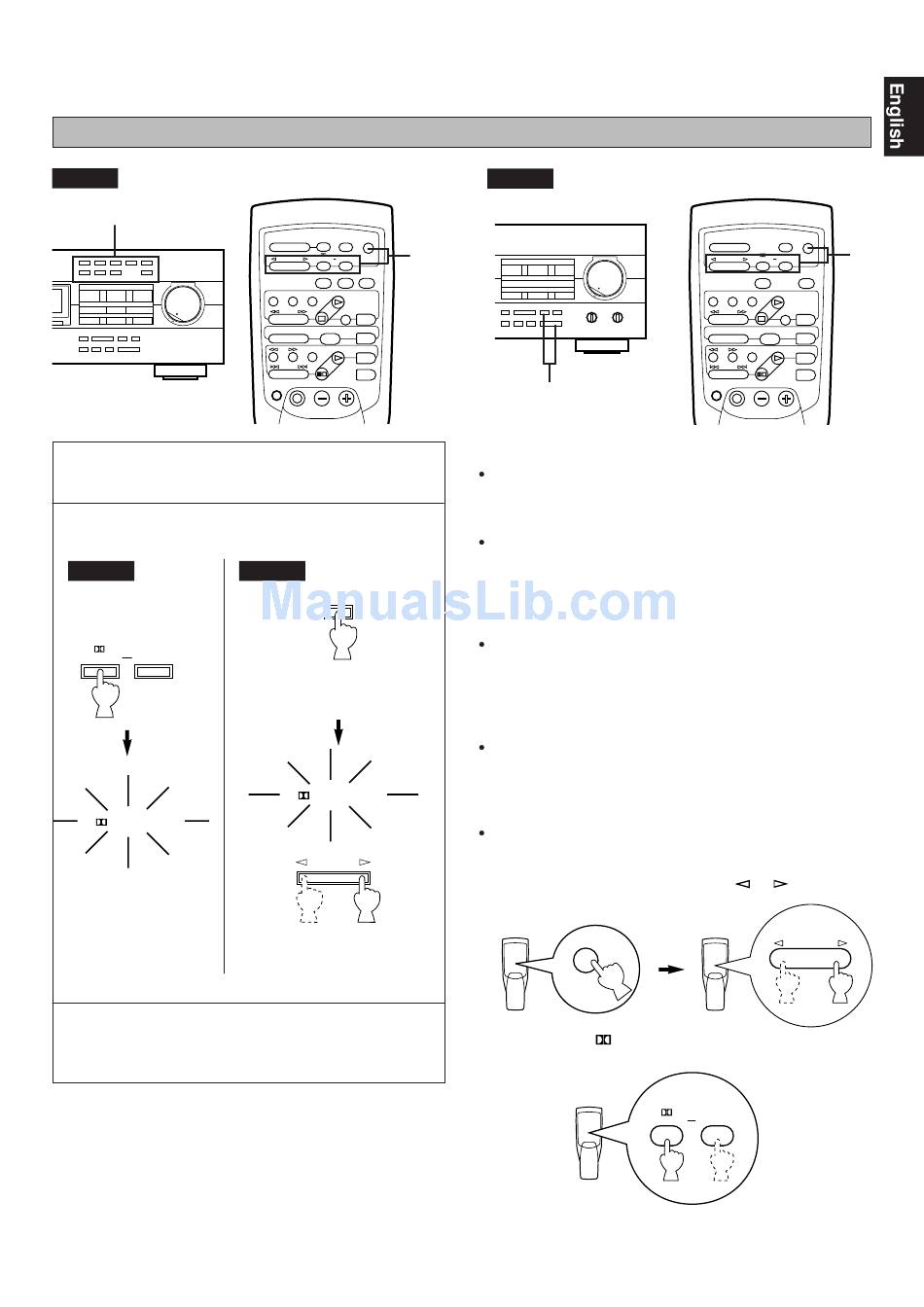

To play a source with the digital sound field processor

R-V702
2
l6
20 l2
28 8
40 4
60 2
0
–dB
1
Follow steps 1 – 6 shown in "BASIC OPERATIONS" on
page 23.
2
Select the desired program that is suitable for the
source.
R-V702
PRO LOGIC ENHANCED
PRO LOGIC
The selected program name is shown on the display.
3
If desired, adjust the delay time and the output level of
each speaker. (For details, refer to the corresponding
descriptions on page 32 and 33.)
TIME/
DELAY/CENTER
– +
LEVEL TEST EFFECT
/REAR
2
ON/OFF
PROGRAM PROLOGIC ENHANCED
VCR TV/DBS DVD/LD
DIR A DIR B REC/PAUSE PLAY
TAPE
A/B
– +
A/B/C/D/E TUNER
PRESET
PLAY
DISC
CD
PHONO
POWER VOLUME
SLEEP
R-V502
a)
EFFECT
Turn the DSP on so that a
program name lights up on
the display.
PRO LOGIC
b)
PROGRAM
Select a desired program
confirming it on the display.
R-V502
l6
20 l2
28 8
40 4
60 2
0
–dB
2
Notes
Program selection can be made to individual input sources.
Once you select a program, it is linked with the input source
selected at that time. So, when you select the input source
next time, the same program is automatically called.
If you prefer to cancel the DSP, press the EFFECT button.
The sound will be the normal 2-channel stereo without
surround sound effect.
When CONCERT VIDEO, MONO MOVIE, DISCO,
STADIUM, ROCK CONCERT or CONCERT HALL is
selected, no sound is heard from the center speaker.
When a monaural sound source is played with DOLBY PRO
LOGIC or DOLBY PRO LOGIC ENHANCED, no sound is
heard from the main speakers and the rear speakers.
Sound is heard only from the center speaker. However, if
the center channel mode is in PHANTOM, the main
speakers output the sound of the center channel.
When this unit's Dolby Pro Logic Surround decoder is used,
if the main-source sound is considerably altered by
overadjustment of the BASS or TREBLE control, the
relationship between the center and rear channels may
produce an unnatural effect.
To select a DSP program on the remote control transmitter,
first turn the DSP on so that a program name lights up on
the display by pressing the EFFECT key. Next, select a
desired DSP program by pressing the
PROGRAM key.
EFFECT
ON/OFF
* Pressing the PROLOGIC or ENHANCED key turns
the DSP on and selects the corresponding program
directly.
PROLOGIC
– +
DELAY TIME TEST EFFECT
2
ON/OFF
PROGRAM PROLOGIC ENHANCED
VCR VIDEO
PLAY
DIR A DIR B REC/PAUSE
TAPE
A/B
– +
PRESET A/B/C/D/E TUNER
DISC PLAY
CD
PHONO
POWER VOLUME
SLEEP
or side of
PROGRAM
ENHANCED
31
