- Page 1 Technical Documentation VISY-X VISY-View Touch Version: 6 Edition: 2020-01 Art. no.: 350055 FAFNIR GmbH • Schnackenburgallee 149 c • 22525 Hamburg • Germany • Tel: +49 /40 / 39 82 07-0 • Fax: +49 / 40 / 390 63 39...
- Page 2 © Copyright: Reproduction and translation is only permitted with the written consent of the FAFNIR GmbH. The FAFNIR GmbH reserves the right to carry out product alterations without prior notice. Content...
-
Page 3: Table Of Contents
Table of contents Properties......................1 Safety instructions ....................2 Design and function description ................. 3 Display ......................... 4 Interfaces ........................4 Installation ......................5 Wall mounting ......................5 Mounting bracket (option) ................... 5 Desktop bracket (option) ....................6 Commissioning ..................... 7 Initial start-up ...................... -
Page 4: Properties
VISY-View Touch is an optional part of the VISY-X system (volume information system). With the VISY-X system, highly precise, continuous level measurements in up to 16 tanks are carried out directly at the petrol station. The product temperature and the water level are gauged simultaneously. -
Page 5: Safety Instructions
Safety instructions The VISY-X system is used for measuring and evaluating the levels of petroleum fuels in petrol station tanks. The system must be used exclusively for this purpose. The manu- facturer accepts no liability for any form of damage resulting from improper use! The VISY-View Touch has been developed, manufactured and tested in accordance with the latest good engineering practices and generally accepted safety standards. -
Page 6: Design And Function Description

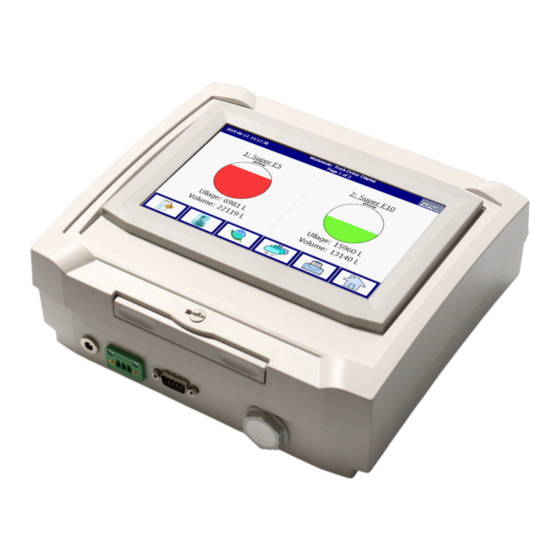

Design and function description 1 Display with touch function AC/DC adapter port (touch screen) 2 Casing cover RS-485 VISY-Command interface 3 Locking Screw RS-232 printer interface 4 Unlock button Blind plug Figure 1: VISY-View Touch front Page 3/11 VISY-View Touch... -
Page 7: Display
RS-232 interface (D-sub 9-pin) for connecting to a printer • As a printer, a thermal printer with 32 columns and serial interface is pro- vided. The printer is available as an option at the company FAFNIR. For configuration of the printer see: ... -
Page 8: Installation
Installation The VISY-View Touch is suitable for wall mounting and also intended to use as a desktop unit. Wall mounting For wall mounting, open the casing cover and mark the mounting points on the intended position on the wall. Drill the holes and mount the device. To open the casing cover loose the locking screw by turning it counterclock- wise and press the unlock button. -
Page 9: Desktop Bracket (Option)
Desktop bracket (option) For use as a desktop unit, VISY-View Touch can be equipped with an optional desktop bracket. Figure 3: Desktop bracket (option) Installation Page 6/11... -
Page 10: Commissioning
Commissioning Initial start-up To start up the VISY-View Touch proceed as follows: The VISY-View Touch is connected to the extension interface of the VISY- Command control unit according to the following table: Interface ports B– B– ⊥ ⊥ RS-232 RS-485 RS-485 Host Extension... - Page 11 The supplied cable tie serves as strain relief. It aims to secure the cable to the base body of the connector housing. Use the side screws of the connector housing to securely fix the connector to the VISY-View Touch. 1 2 3 1 RS-485 VISY-Command interface with numbering of the contacts 2 Connector (3 pin)
-
Page 12: Operation
Operation VISY-View Touch is operated via the software VISY-SoftView, see: Technical Documentation VISY-SoftView (English) – Art. no. 350026 Page 9/11 VISY-View Touch... -
Page 13: Technical Data
Technical data Display 7" colour touch screen with embedded micro-computer and software VISY-SoftView Alarm signalling Display and buzzer Power supply AC/DC adapter included in the scope of delivery Ambient temperature 0 °C ... +60 °C RS-485 interface Communication with VISY-Command, not galvanically isolated, 3-pin RS-232 interface Printer port, 9-pin, D-Sub male connector... - Page 15 Blank page...
