Page 1: Technical Documentation

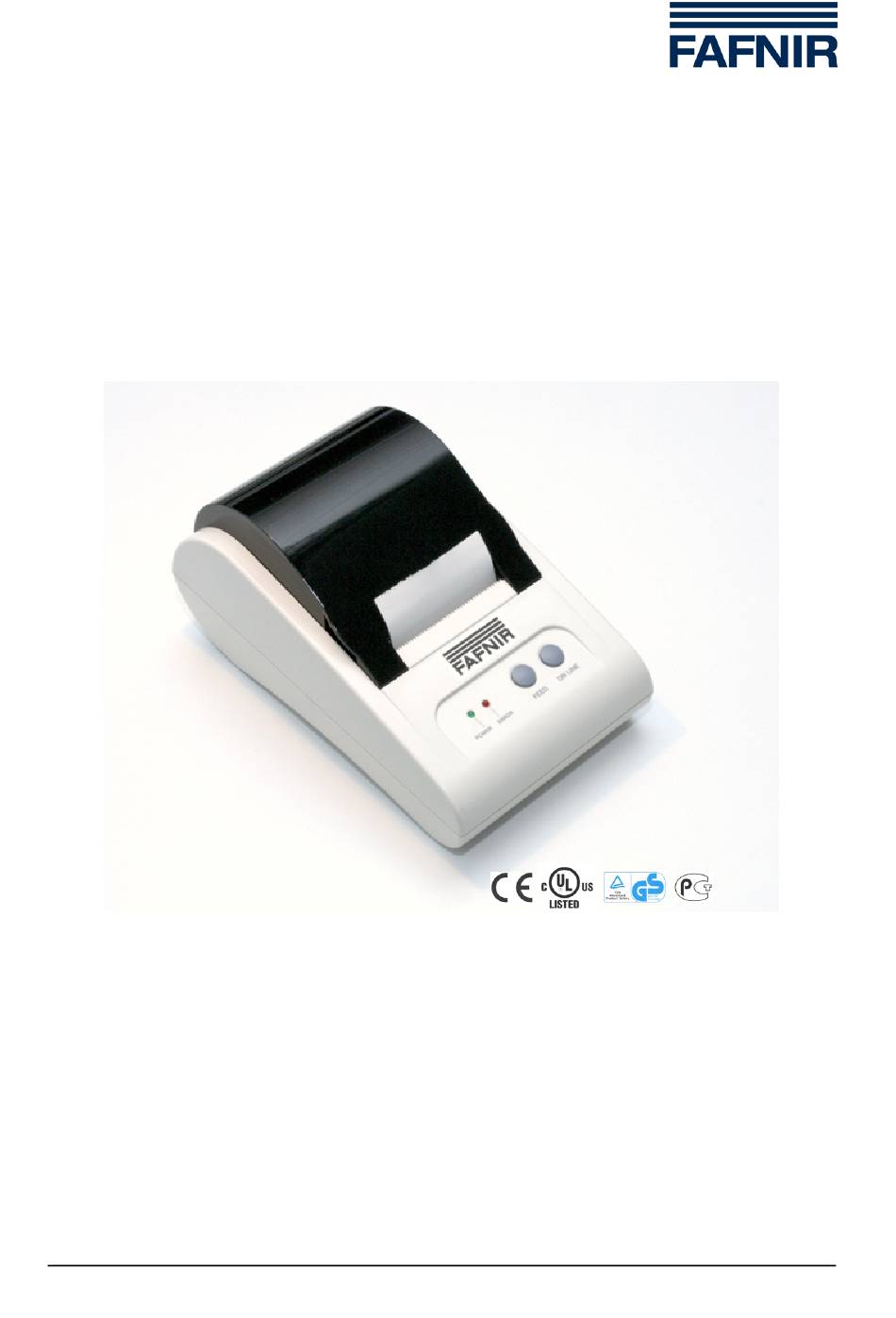

Technical Documentation VISY-X VISY-View Printer Release: 2016-10 Version: 1 Article No.: 207163 FAFNIR GmbH • Schnackenburgallee 149 c • 22525 Hamburg • Tel: +49 /40 / 39 82 07-0 • Fax: +49 /40 / 390 63 39... -
Page 2: Table Of Contents
List of figures ....................8 List of tables ..................... 8 © Copyright: Reproduction and translation only with the written consent of the FAFNIR GmbH. The FAFNIR GmbH reserves the right to carry out product alterations without prior notice. Page 2/8... -
Page 3: Introduction
Especially the following regulations must be observed during installation and use of the VISY-View Printer: • The VISY-View Printer is designed for operation within the VISY-X system only. • Modifications of the VISY-View Printer are prohibited without the prior consent of the manufacturer. -
Page 4: Installation
Installation Connecting to VISY-View The communication connection between VISY-View and the VISY-View Printer is done by the delivered serial cable. Proceed as follows to connect the printer with the VISY-View: • Plug the 25-pole connector securely into the printer's interface connector. •... -
Page 5: Control Panel
Control panel The control panel has two indicator LEDs and two buttons. Figure 1: Control panel The indicator LEDs provide information about the printer conditions. Under normal circumstances the POWER LED should be constantly on and the ERROR LED should be off. The buttons are used to perform a manual paper feeding and to change between online and offline mode. -
Page 6: Paper Roll Installation
Paper roll installation To change the paper roll proceed as follows: Switch off the printer Open the printer cover Remove the used paper roll if there is one Insert the new paper roll with the paper coming from the bottom Pull out a small amount of paper Close the printer cover Switch on the printer again... -
Page 7: Paper Specifications
Roll spool outer diameter Ø 18 mm (0.71”) Table 1: Paper specification Paper rolls can be ordered from FAFNIR. (Article No. 908615 – 10 pc). DIP switches During normal printer operation with the VISY-View the factory preset positions of the DIP switches do not need to be changed. -
Page 8: Technical Data
Technical Data Dimensions: H 90 x W 100 x D 191 [mm] Ambient temperature: 0 °C ... +40 °C Power supply: 100 V AC … 240 V AC, 50 … 60 Hz, via AC adapter Printing method: Thermal line printing Paper changing: Easy paper drop in Paper width:...
