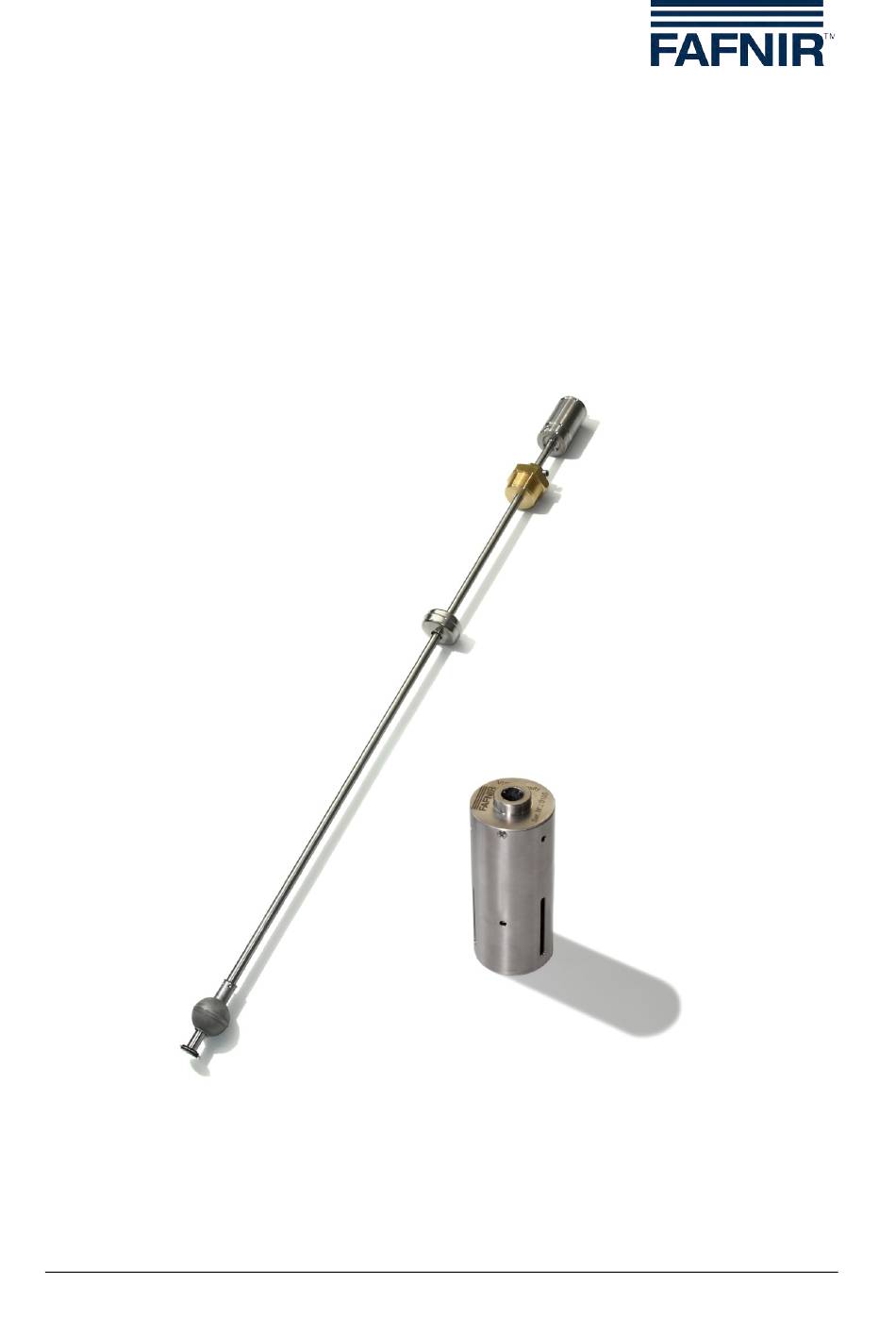

- Page 1 Technical Documentation VISY-X Subsequent installation of VISY-Density Edition: 2016-08 Version: 2 Art. No.: 350063 FAFNIR GmbH • Schnackenburgallee 149 c • 22525 Hamburg • Tel.: +49 / 40 / 39 82 07–0 • Fax: +49 / 40 / 390 63 39...
-
Page 2: Table Of Contents
Read out density information with VISY-Setup ............... 11 List of figures .................. 12 © Copyright: Reproduction and translation is only permitted with the written consent of the FAFNIR GmbH. The FAFNIR GmbH reserves the right to carry out product alterations without prior notice. Table of Content... -
Page 3: Requirements
Requirements For the subsequently installation of VISY-Density you need: VISY-Density (Part. No. 908560) • Distance bushing • FAFNIR USB Adapter (Part. No. 900040) • Driver for FAFNIR USB Adapter • Calibration Data of VISY-Density (comes with VISY-Density) • Plastic safety ring (spare part) •... -
Page 4: Assemble Visy-Density
Slide the distance bushing and then VISY-Density on the VISY-Stick Ad- Earth connector vanced. Sensor head Make sure that VISY-Density is installed with the laser printed side showing to Screw-in unit the top/sensor head. If present slide the water float with the marking “TOP”... -
Page 5: Configure Visy-Density
Configure VISY-Density Installing FAFNIR USB Adapter Connect the FAFNIR USB Adapter to the USB-Port of your PC/Laptop. A window will open telling you that a new hardware has been found. For the FAFNIR USB Adapter you have to install the driver “FAFNIR USB Adapter”... - Page 6 Select “Install from a list or specific location (Advanced)” • Click on “Next >” • Select “Search for the best driver in these locations” • and choose the location of the drivers Click on “Next>” • Subsequent installation of VISY-Density Page 4/12...
-
Page 7: Visy-Density Configuration
Check under “Control Panel” “System” Tab “Hardware” “Devices” for the ComPort of the “FAFNIR USB Adapter”. Open the HyperTerminal and select the ComPort of the FAFNIR USB Adapter. Fill in a suitable name (for example: density) under “Connection Description” and click on “OK”. - Page 8 Click on “ASCII Setup” • Check “Send line ends with line feeds” and ”Echo typed characters locally”. • Confirm both windows with “OK” • Click on the phone “Connection” button to connect again. • Subsequent installation of VISY-Density Page 6/12...
- Page 9 Type-in in HyperTerminal: RXP[Serial No. VISY-Stick Advanced]DS Type-in the DS Command (to be found on the table received with VISY- Density) of the installed VISY-Density module behind the first part (see exam- ple below) Press <Enter> and the probe will answer with (i.O.). If the probe does not answer please make sure that you have done each step correctly.
-
Page 10: Reinstall Visy-Stick Advanced
Reinstall VISY-Stick Advanced Before installation, pull out the 3 locking pins from the VISY-Density. Place the VISY- Stick Advanced back in the tank. Make sure every VISY-Stick Advanced is in the right tank. Set new “Product very low” Alarm Read out the position of the product float with VISY-Setup (“Current Values” ... -
Page 11: Read Out Density Information With Visy-Softview
Command GUI. VISY-SoftView is able show the density data together with other tank details. VISY-SoftView will be showing the density or the sump density depending on the position in which VISY-Density is installed at the VISY-Stick Advanced. In order to see the density with VISY-SoftView the function needs to be activated. To activate go to “System Functions”... - Page 12 To see the density for one tank click on the desired tank and the following window will open: Figure 4: Tank Details Subsequent installation of VISY-Density Page 10/12...
-
Page 13: Read Out Density Information With Visy-Setup
Open VISY-Setup and connect with the VISY-Command by using the corresponding ComPort. Go to “Current Values” and scroll down. You will be finding the “Product Density” and the “Sump Density”. Depending on the position of VISY-Density you will be seeing data in either one of those fields. -
Page 14: List Of Figures
List of figures Figure 1: VISY-Stick Advanced with VISY-Density ............. 2 Figure 2: Hardware Wizard Installation steps ..............3 Figure 3: Configuration Density Visibility ................. 9 Figure 4: Tank Details ....................10 Figure 5: VISY-Density Values ..................11 Subsequent installation of VISY-Density... - Page 16 FAFNIR GmbH Schnackenburgallee 149 c 22525 Hamburg, Germany Tel.: +49 / 40 / 39 82 07 – 0 Fax: +49 / 40 / 390 63 39 E-Mail: info@fafnir.com Web: www.fafnir.com...
