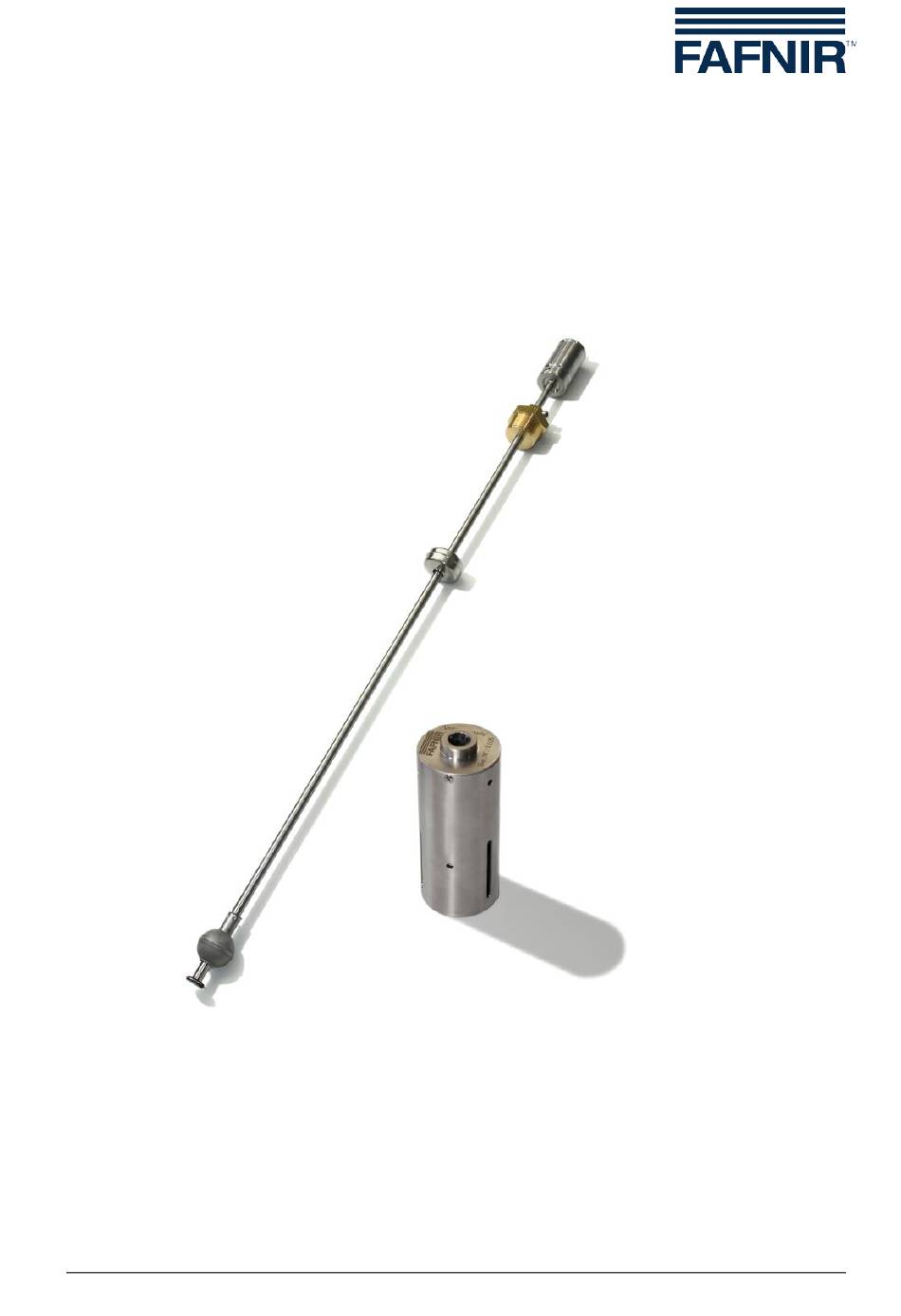

- Page 1 Technical Documentation VISY-X VISY-Density (LPG) Version: Edition: 2016-08 Art. no.: 350213 FAFNIR GmbH • Schnackenburgallee 149 c • 22525 Hamburg, Germany • Tel.: +49 /40 / 39 82 07-0 • Fax: +49 / 40 / 390 63 39...
- Page 2 © Copyright: Reproduction and translation is permitted only with the written consent of the FAFNIR GmbH. The FAFNIR GmbH reserves the right to carry out product alterations without prior notice. Table of contents...
-
Page 3: Table Of Contents
Assembly of VISY-Density (LPG) ....................6 3.2.2 Installation and commissioning of the VISY-Stick Advanced ..........7 Retrofitting the VISY-Density (LPG) module ........8 Scope of delivery of module for retrofitting ..............8 Assembly and commissioning ....................8 Overhaul ....................13 Maintenance .......................... -
Page 4: Overview
The VISY-Density (LPG) module is an extension of the VISY-Stick Advanced level sensor in the VISY-X system for the measurement of product/sump density of fuel or liquefied petroleum gas (LPG). The module is available for use in fuel tanks as "VISY-Density" and for use in LPG tanks as "VISY-Density LPG". -
Page 5: Requirements For Service Engineers
This manual contains a description of all steps needed for the implementation. Please also observe the additional instructions in the following manuals: Technical Documentation VISY-Command VI-4, art. no. 207184 Technical Documentation VISY-Stick and VISY-Reed, art. no. 207194 Requirements for service engineers The complete VISY-X system should only be installed by trained service engineers. - Page 6 When installing and servicing the sensors, the requirements of the Explosion Protection Regulations, the Industrial Health and Safety Regulations and the Equipment Safety Regulations as well as generally accepted rules of engineer- ing and these operating instructions must be observed. Observe also the the local safety and accident prevention regulations which are not stated in these operating instructions.
-
Page 7: Visy-Density (Lpg)
The VISY-Density (LPG) module allows the determination of the product density or the sump density (level below the suction pipe) of commercially available fuels or liquefied petroleum gas. For fuel tanks the module is available as "VISY-Density" and for LPG tanks as "VISY-Density LPG“". -
Page 8: Installation Visy-Stick Advanced (Lpg) Density
Complete scope of delivery of filling level sensor VISY-Density and, if required, additional floats are supplied in a carton separate from the VISY-Stick Advanced probe. For the appropriate assignment the module and probe are numbered, e.g module 1 belongs to probe 1, etc. -
Page 9: Assembly And Commissioning
210 mm, the product density is determined (see Fig. 1). (9) Remove the transport locks (3 plastic pins) from the VISY-Density Module The float of the VISY-Density is protected by a transport lock, which consists of three lateral inserted plugs. The transport lock must be pulled out before oper- ating the VISY-Density. -
Page 10: 3.2.2 Installation And Commissioning Of The Visy-Stick Advanced
All wiring operations must solely be carried out with the power disconnected. The relevant safety precautions must be adhered to for the installation in LPG tanks. The LPG tank must have been properly emptied before the VISY-Density LPG module is installed. -
Page 11: Retrofitting The Visy-Density (Lpg) Module
Density (LPG) module. The sensor must be programmed on-site with the calibration data of the VISY-Density (LPG) module with the aid of a PC/laptop. Scope of delivery of module for retrofitting For a later order of the VISY-Density (LPG) extension set you will receive the following components: VISY-Density (LPG) •... - Page 12 Remove the transport locks (3 plastic pins) from the VISY-Density Module • The float of the VISY-Density is protected by a transport lock, which consists of three lateral inserted plugs. The transport lock must be pulled out before oper- ating the VISY-Density.
- Page 13 VISY-Density (LPG) configuration Start the Windows program "Hyperterminal" to configure the VISY-Density (LPG) • module (if not available, the Hyperterminal must be installed) Connect the VISY-Stick Advanced (LPG) with the FAFNIR USB adapter • Enter the used COM port of the FAFNIR USB adapter •...
- Page 14 30144 0 +22749= +89357= +46137= 39 Input of characters: RXP[the device number]DS[DS command] • (the DS command *** is contained in the configuration table for all VISY-Density modules) and confirm with ENTER RXP30144DS*** Example of the configuration table with the DS commands:...
- Page 15 Output of "OK" for successful programming. • If "OK" is not displayed, programming has not been carried out Remove the FAFNIR USB adapter from VISY-Stick Advanced (LPG) • Connect the equipotential cable and M12 connector to the sensor head Connect the power supply of the VISY-Command...
-
Page 16: Overhaul
Return shipment Before returning any FAFNIR equipment the returned goods authorization by the FAFNIR customer service is required. Please contact your account manager or the customer care to get the instructions for the return of goods. -
Page 18: Annex
Technical information The VISY-Stick sensors have the following approvals: • TÜV 99 ATEX 1496, IECEx TUN 05.0004, NEPSI GYJ 11.1568 For details on explosion protection, permissible ambient temperature (sensor • head), and the connection data please refer to the approvals and operating in- structions. - Page 20 FAFNIR GmbH Schnackenburgallee 149 c 22525 Hamburg, Germany Tel.: +49 / 40 / 39 82 07–0 Fax: +49 / 40 / 390 63 39 E-mail: info@fafnir.com Web: www.fafnir.com...
