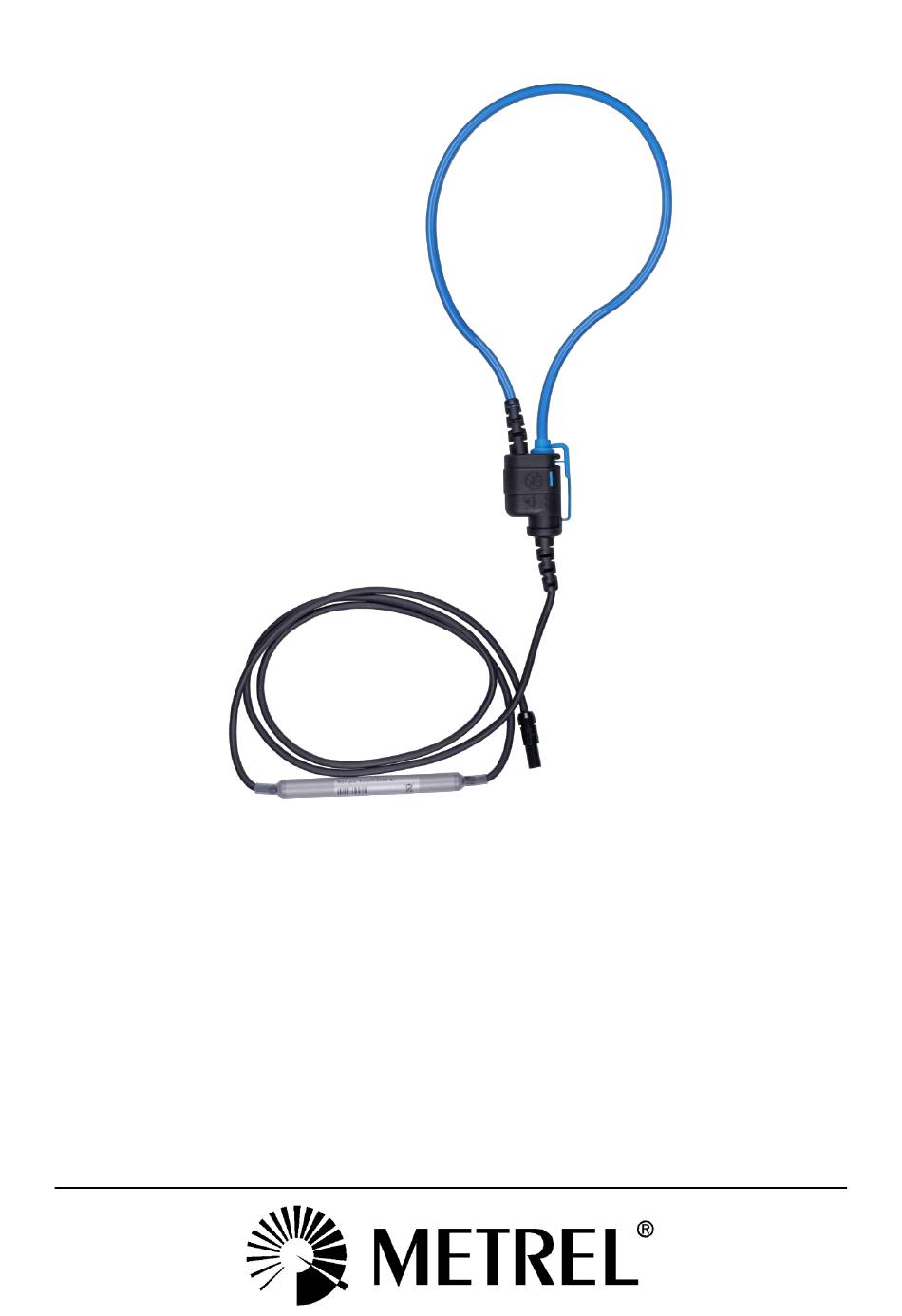

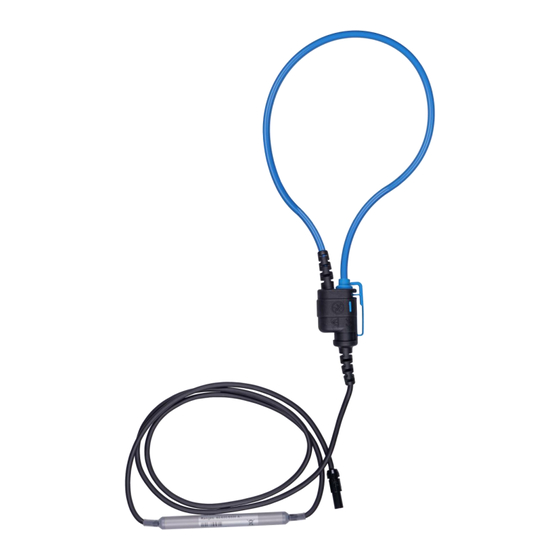

- Page 1 Flex current clamps A 1501, A 1502 and A 1503 Instruction Manual Version 1.1.1; Code No. 20 752 759...
- Page 2 Mark on your equipment certifies that it meets European Union requirements for EMC, LVD, ROHS regulations © 2017 Metrel No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL.
-
Page 3: Table Of Contents
Flex current clamps A 1501, A 1502 and A 1503 Table of contents Introduction ......................4 Main features ......................4 Safety ........................5 Symbols ........................5 Typical applications ....................6 Power Quality Measurement ................6 Energy and Power Measurement ..............6 Connecting and using clamps in the field.............. -
Page 4: Introduction
Flex current clamps A 1501, A 1502 and A 1503 1 Introduction Flexible Current Clamps A 1501, A 1502 and A 1503 are based on Rogowski coil principle and can measure alternating currents on low and medium power installations. Unlike standard current transformers, this type of current sensor does not use magnetic cores. -
Page 5: Safety
Flex current clamps A 1501, A 1502 and A 1503 3 Safety Read the operating instructions before use and follow all safety instructions. If the test equipment is used in a manner that is not specified in this user manual, the protection provided by the equipment might be impaired! Adhere to local and national safety codes. -
Page 6: Typical Applications
Flex current clamps A 1501, A 1502 and A 1503 5 Typical applications 5.1 Power Quality Measurement Current clamps have linear response through wide frequency bandwidth (see Figure 7 and Figure 11). Therefore they are well suited for: Power Quality auditing, ... - Page 7 Flex current clamps A 1501, A 1502 and A 1503 It is very important that the conductor is in the centre and perpendicular to the current censor as much as possible, in order to minimise position measurement error. Minimise influence of adjacent current-carrying conductors, and measure at the point where they are far away from each other.
-
Page 8: Effective Current Measuring Range
30A range Effective measuring range Error > 5% wave 3000A 30000A 300A Figure 3: A 1501 and A 1502 effective measuring range (error is <5% of m.v.) Pure sin Error > 5% Effective measuring range 6000A range wave 160A 12kA... -
Page 9: Technical Specifications
Flex current clamps A 1501, A 1502 and A 1503 7 Technical specifications 7.1 A 1501 and A 1502 FEATURES DESCRIPTION NOTES A 1501 – 25 cm / 10 in Length of the sensor A 1502 – 48 cm / 25 in A 1501 –... -
Page 10: Range 30A - Typical Characteristics
Flex current clamps A 1501, A 1502 and A 1503 7.1.1 Range 30A - Typical Characteristics 1,40 0,12 1,20 0,10 1,00 0,08 0,80 0,06 0,60 0,04 0,40 0,02 0,20 0,00 0,00 0,10 1,00 10,00 RMS Current (A) RMS Current [A]... - Page 11 Flex current clamps A 1501, A 1502 and A 1503 7.2 A 1503 FEATURES DESCRIPTION NOTES Length of the sensor 90 cm / 35 in Max. conductor diameter 27 cm / 10,6 in Nominal current range 60 A / 600 A / 6000 A ac rms, with crest factor 3 or less 60A range: 6 A …...
-
Page 12: Range 60A - Typical Characteristics
Flex current clamps A 1501, A 1502 and A 1503 7.2.1 Range 60A - Typical Characteristics 0,70 0,12 0,60 0,10 0,50 0,08 0,40 0,06 0,30 0,04 0,20 0,02 0,10 0,00 0,00 0,10 1,00 10,00 100,00 RMS Current (A) RMS Current (A) -
Page 13: Cleaning
Do not use liquids based on petrol or hydrocarbons! Do not spill cleaning liquid over the device! 9 Service For repairs under or out of warranty time please contact your Metrel distributor for further information. Name and address of manufacturer: METREL d.d.
