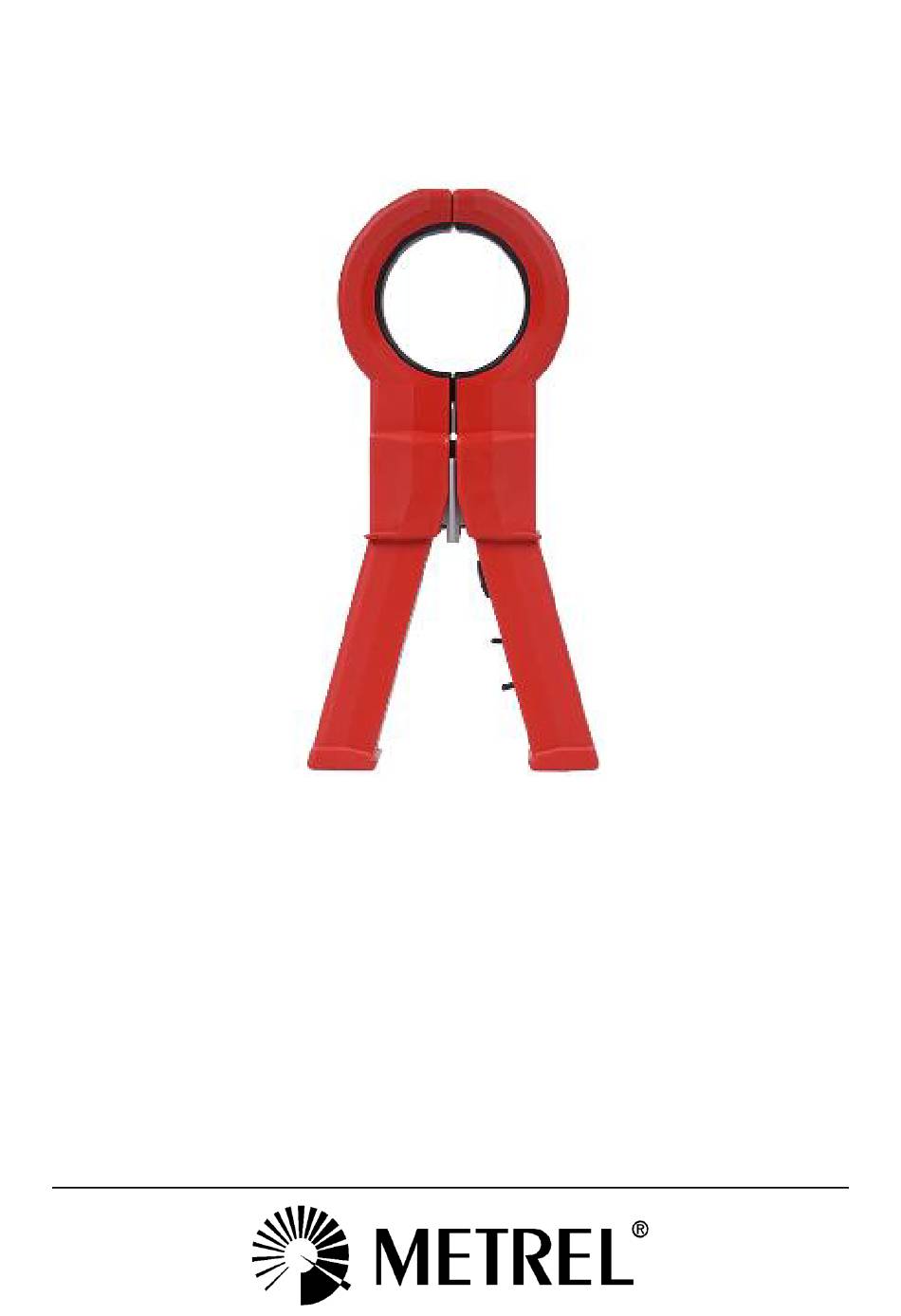

- Page 1 AC/DC current clamps 100/1000 A A 1717 Instruction manual Version 1.2.3; Code No. 20 753 060...
- Page 2 Mark on your equipment certifies that it meets requirements of all subjected EU regulations Hereby, Metrel d.o.o. declares that the A 1717 is in compliance with subjected EU directives. The full text of the EU declaration of conformity is available at the following internet address https://www.metrel.si/DoC.
-
Page 3: Table Of Contents
A 1717 AC/DC current clamps 100/1000 A Table of contents Table of contents General Description .................... 4 Safety and operational considerations ............. 5 Warnings and notes ..................5 Standards applied ..................6 Current clamp operation..................7 Inspection ......................8 Cleaning ....................... 8 Service and Calibration .................. -
Page 4: General Description
I. A 1717 current clamp has two measuring ranges 100A / 1V and 1000A / 1V and the output voltage of sensor is: 10 mV / 1A or 100mV / 1A, it means that when the input current is 1A, the ratio-metric... -
Page 5: Safety And Operational Considerations
In order to maintain the highest level of operator safety while carrying out various tests and measurements Metrel recommends keeping your A 1717 AC/DC current clamps 100/1000 A in good condition and undamaged. When using the A 1717, consider the following general warnings: symbol on the A 1717 means »Read the Instruction manual with special ❑... -
Page 6: Standards Applied
Mark on your equipment certifies that it meets requirements of all subjected UK regulations. This equipment should be recycled as electronic waste. 2.2 Standards applied The A 1717 AC/DC current clamps 100/1000 A are manufactured and tested in accordance with the following regulations: Electromagnetic compatibility (EMC) EN 61326 - 1 Electrical equipment for measurement, control and laboratory use –... -
Page 7: Current Clamp Operation
A 1717 AC/DC current clamps 100/1000 A Current clamp operation 3 Current clamp operation Step 1 Connect A 1717 AC/DC current clamps 100/1000 A to the desired input on the measuring instrument. Step 2 Clamp the probe around the insulated current-carrying conductor(s) to be measured. Make sure that probe jaws are tightly closed around the conductor(s). -
Page 8: Inspection
Jaw surface must be clean. Pollution on jaw surfaces reduces the current clamp sensitivity. 5 Cleaning No special maintenance is required for the housing. To clean the surface of the A 1717, use a soft cloth slightly moistened with soapy water or alcohol. Then leave the A 1717 to dry totally before use. -
Page 9: Technical Specifications
A 1717 AC/DC current clamps 100/1000 A Technical specifications Technical specifications Nominal current (I ) ........100 A / 1000 A Range selection ..........Switch inside the handle Nominal current range ........3 % I … 100 % I Maximal peak current AC or DC (I ) ...
