- Page 1 DC/AC Current clamp 2000A A 1636 Instruction manual Version 1.2, Code no. 20 752 824...
- Page 2 Mark on your equipment certifies that this equipment meets the requirements of the EU (European Union) concerning safety and electromagnetic compatibility regulations. No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL.
-
Page 3: Table Of Contents
A 1636 DC/AC Current clamp Table of contents SYMBOLS AND WARNINGS .................. 4 DESCRIPTION OF CURRENT CLAMP ..............5 OPERATION INSTRUCTIONS ................6 MAINTENANCE ....................... 7 ........................7 NSPECTION ........................7 LEANING ..................... 7 ERVICE ALIBRATION TECHNICAL SPECIFICATIONS ................8... -
Page 4: Symbols And Warnings
A 1636 DC/AC Current clamp 1 Symbols and Warnings To ensure a high level of operator's safety during using of A 1636 DC/AC current clamps the following warnings has to be considered: Do not apply around or remove from hazardous live conductors. -
Page 5: Description Of Current Clamp

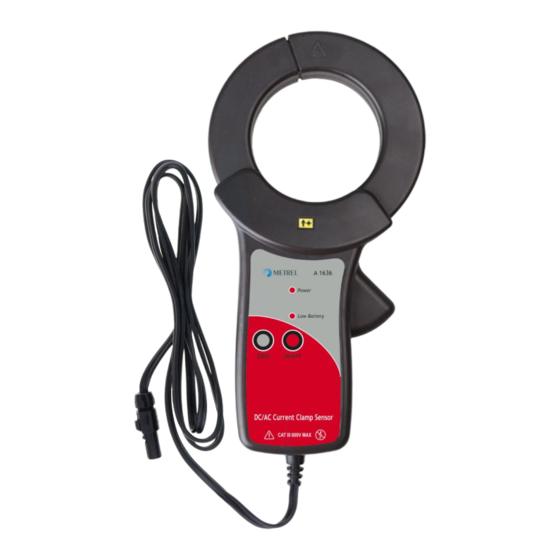

A 1636 DC/AC Current clamp 2 Description of current clamp ETCR068AD Clamp AC/DC current Sensor is used for measurement of AC/DC current, phase, power energy, power, power factor. Adopt the latest CT technology. It is portable, large clamp design, no need to disconnect the measured circuits, non-contact, safe and fast. It can be... -
Page 6: Operation Instructions
A 1636 DC/AC Current clamp 3 Operation Instructions Adopt the combination of split coil and hall element, can use to measure AC current and DC current, when current Ⅰ go through the sensor, hall element will output a hall voltage V and calculate the current Ⅰ. -
Page 7: Maintenance
Service and Calibration It is essential that your clamp is regularly calibrated in order to guarantee the technical specification listed in this Instruction manual. We recommend 2-year calibration interval. Metrel encloses an original calibration certificate with every new instrument and clamp. -
Page 8: Technical Specifications
A 1636 DC/AC Current clamp 5 Technical Specifications Measurement of AC/DC current, phase, power Function energy, power, power factor Zn-Mn dry cell 6F22 9VDC (external power source is Power supply allowed) Rated current 15mA Test mode Clamp CT Φ68mm Clamp Size Range DC 0.0A~2000A;...
