EGO POWER+ LINE AS1200E Operating Manual

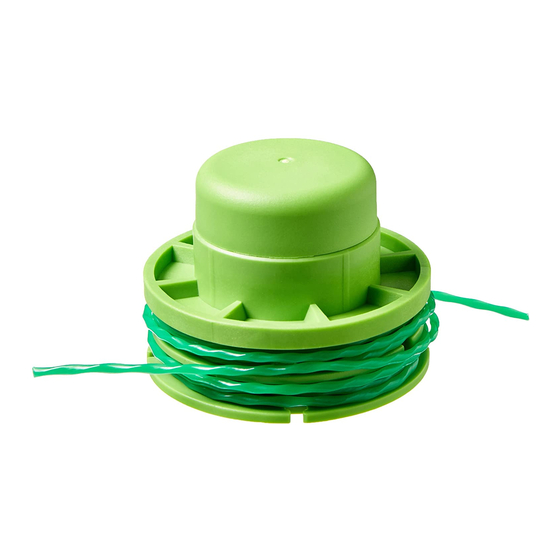

LINE TRIMMER SPOOL
This pre-wound trimmer spool is for use only with the EGO line
trimmer ST1200E.
WARNING:
To prevent serious personal injury, remove the
battery pack from the tool before servicing, cleaning, changing
attachments or removing material from the trimmer.
WARNING:
When servicing, use only identical EGO
replacement parts. Use of any other accessory or attachment may
increase the risk of injury.
WARNING:
Replace a cracked, damaged or worn-out trimmer
head immediately, even if damage is limited to superficial cracks. Such
attachments may shatter at high speed and cause serious or fatal injury.

HOW TO REPLACE THE LINE TRIMMER SPOOL

1. Press the release tabs on the spool retainer and remove the
retainer by pulling it straight out (Fig. 1).
1
Tab
OPERATING MANUAL
MODEL NUMBER AS1200E
Tab
2. Remove the spool. Use a clean cloth to clean the inner surface of
the spool base.
3. Note the notches from which the lines protrude in the new spool. Align
the notches with the eyelets in the spool retainer and position the
spool in the retainer (Fig. 2).
2
Notch
Eyelet
4. Holding both the spool and spool retainer, grasp the line and pull it to
release the line from the notch in the eyelet (Fig. 3).
3
Notch
Eyelet
