Step 10: Connect the 1/16" ball links to the servo horn

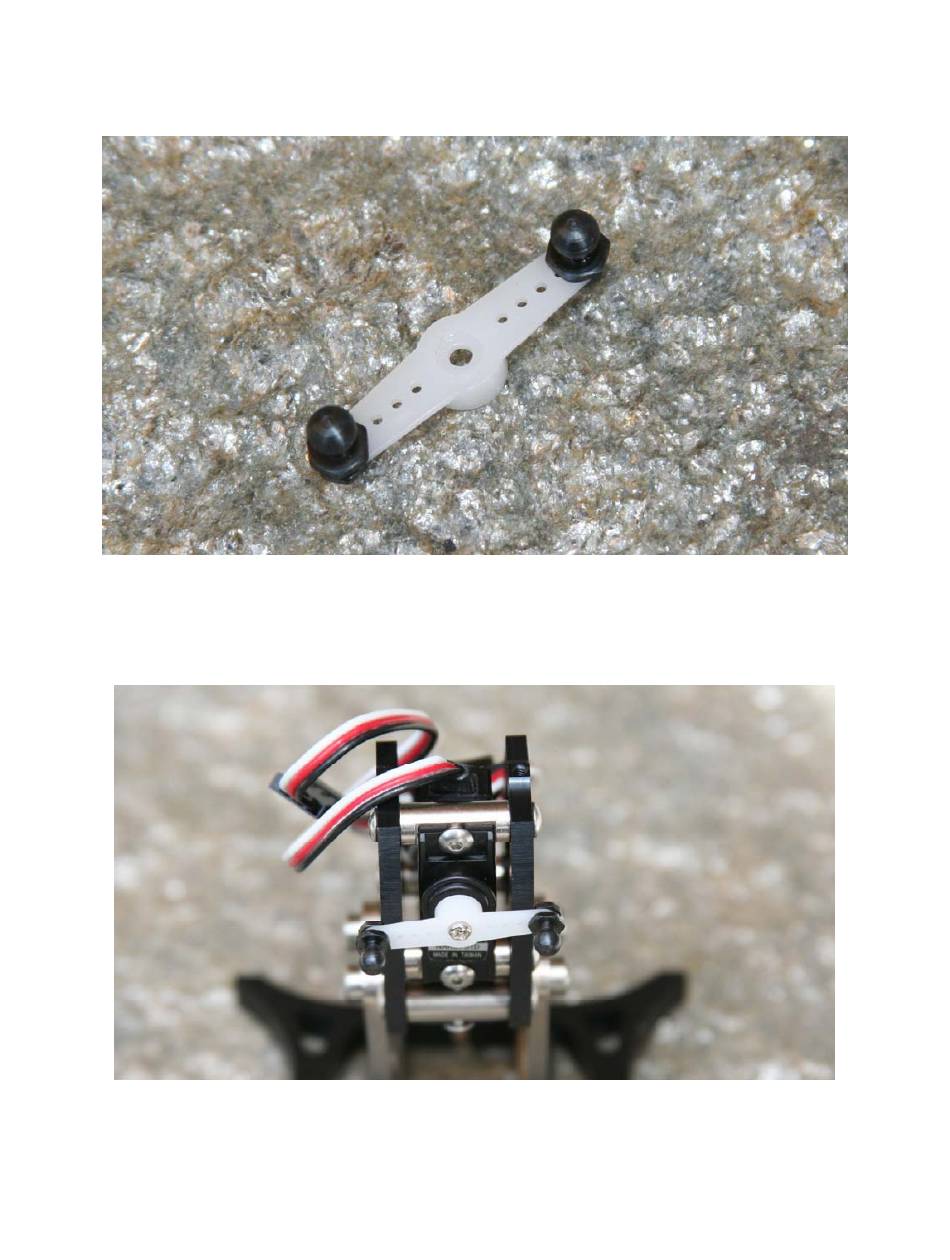

Install the two 1/16" ball links on the servo horn. Tighten carefully but don't deform the plastic.
Step 11: Attach the servo horn to the tilt servo
Press the assembled servo horn onto the tilt servo, positioning it cross-wise to the Penguin body. Do not
over-tighten the screw; you may need to take off the horn and re-center the servo if it gets moved
during the next step.
