Sumo Subsoiler Operator's Manual And Parts List
Trailed machines 7 and 9 leg
Hide thumbs
Also See for Subsoiler:
- Operator's manual and parts list (27 pages) ,
- Operator's manual and parts list (19 pages) ,
- Operator's manual (48 pages)
Related Manuals for Sumo Subsoiler
Summary of Contents for Sumo Subsoiler

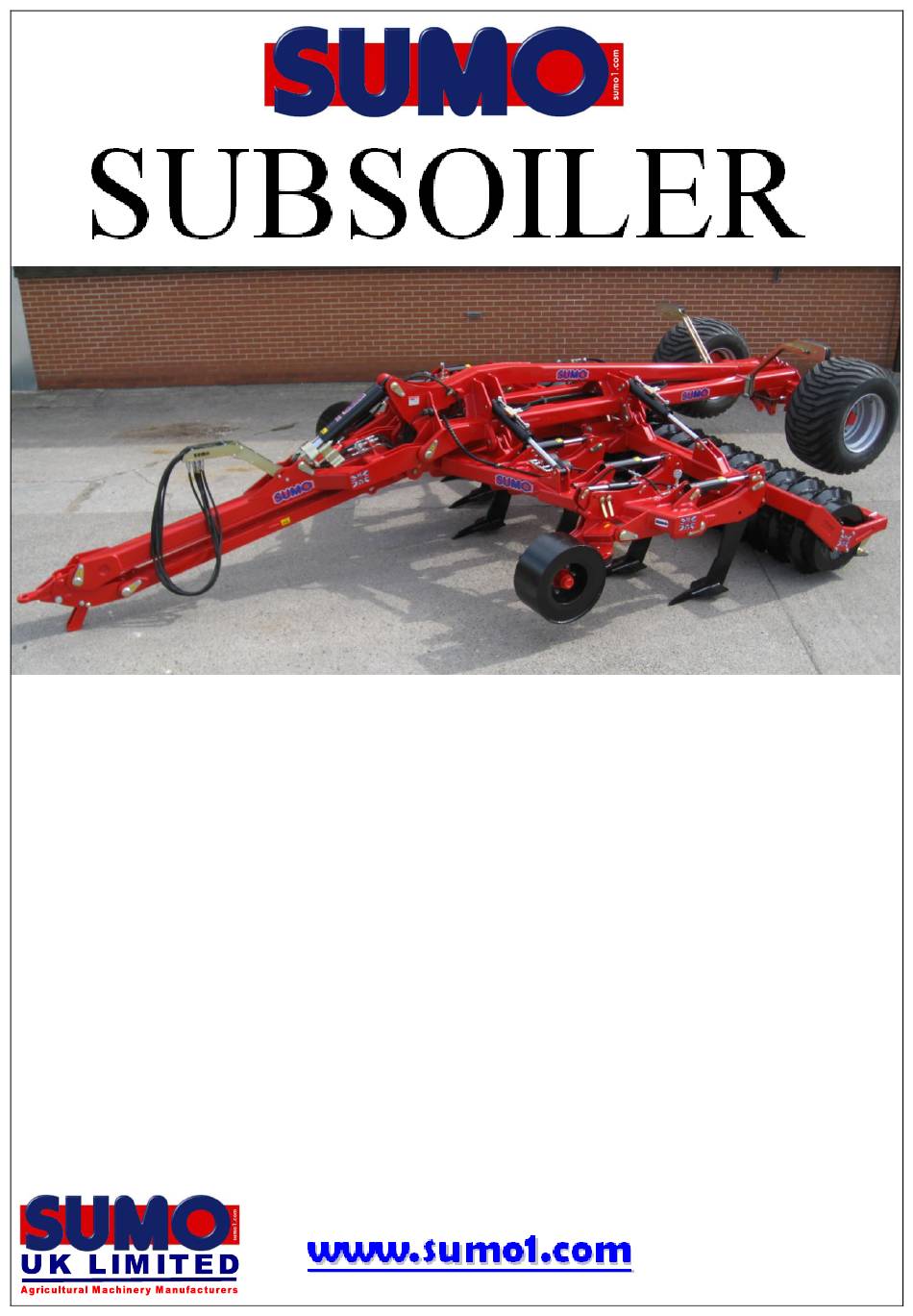

- Page 1 7 and 9 Leg Trailed Machines 2012 Operator Manual Parts List Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901...
-
Page 3: Registration
1.0 Registration To activate your SUMO Warranty, you must complete this page and send it back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 (NO REGISTRATION = NO WARRANTY) SUMO SERIAL No: For your own records. - Page 4 In order to obtain your free pair of Sumo overalls and baseball cap please fill in this form and send back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 SUMO SERIAL No:...
-
Page 5: Summary
The design of the Subsoiler point/leg arrangement means that the forward mounted point creates a wedge under the soil, lifting and cracking the soil profile ahead of the leg, in doing so, opens a slot for the leg to run through, reducing the amount of power needed to move forward in the soil. -
Page 6: Table Of Contents
Table of Contents 1.0 Registration ........................3 2.0 Summary ........................5 3.0 Safety..........................7 3.1 Qualification and Training ........................7 3.2 General safety ............................8 3.3 Special safety instructions ........................8 4. 0 Maintenance ........................9 4.1 Spares ..............................9 4.2 Adjustments ............................ -
Page 7: Safety
(accident prevention). SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and ancillary equipment not supplied and/or approved by SUMO. -
Page 8: General Safety
Take extreme care when hitching up or unhitching machine to/from the tractor. Never allow persons to stand between the tractor and the SUMO machine unless the tractor is secured against rolling away by means of parking brake and/or wheel chocks. -
Page 9: Maintenance
4.2 Adjustments Depth adjustment of the subsoiler legs is achieved by altering the height at which the packer is set with the pins, the front depth wheels with the pins and by removing or adding slices to the drawbar ram. The machines wings should always remain level when working. -
Page 10: Replacement Parts
The Subsoiler legs are removed by firstly removing the M10 bolt near the leg handle and then by extracting the R-clip the shear pin can be removed and finally the M30 bolt needs removing, freeing the leg. -
Page 11: Parts And Assembly
5.0 Parts and Assembly 5.1 Assembly Overviews Item Description Page Drawbar Hitch Drawbar Hinge Front Depth Wheel Assembly Axle, Wheels and Brakes Packer Depth Control Main Frame and Wings 16,17 Lights Leg and Point Assembly 19, 20 Packer and Scraper Assembly Hydraulic Assemblies 22-26 Stickers and Paint... - Page 12 Item Description Page Drawbar Hitch Drawbar Hinge Front Depth Wheel Assembly Axle, Wheels and Brakes Packer Depth Control Main Frame and Wings 16,17 Lights Leg and Point Assembly 19, 20 Packer and Scraper Assembly Hydraulic Assemblies 22-26 Stickers and Paint...
-
Page 13: Drawbar Hitch
5.2 Drawbar Hitch Item Part No. Description Quantity per machine SW417 Drawbar box SW416 Lower parallel link SW134 Drawbar hitch unit SW135 Towing eye SWB105 Lynch pin SWB108 50x58x50 PB1 bush SW136 Stand SWM30180 M30 x 180 bolt SWM30001 M30 flat washer SWM30004 M30 nylock nut SWM16160... -
Page 14: Drawbar Hinge
5.3 Drawbar Hinge Item Part No. Description Quantity per machine SW416 Lower link SW417 Drawbar box SWM16004 M16 nylock nut SWM16001 M16 flat washer SWM1655 M16 x 55 bolt SW143 40 x 148 tabbed pin SWB108 50 x 58 x 50 PB1 bush SWH293 780.120 ram SW144... -
Page 15: Front Depth Wheels
5.4 Front depth wheels Quantity per machine Item Part No. Description SW503 RH trailed 7 leg subsoiler wing SW504 LH trailed 7 leg subsoiler wing SWH276 640/2 ram SW505 RH depth wheel arm SW506 LH depth wheel arm SWM1235 chsq... -
Page 16: Axle, Wheels And Brakes
5.5 Axle, Wheels and Brakes Item Part No. Description Quantity per machine SWB133 10 stud braked hub SWB134 Brake ram SWB188 12mm clevis pin SWB189 Brake arm SWM12001 M12 flat washer SWB190 Small R-clip SWB191 14x60 roll pin SWB192 Ram mount/adjuster SWB193 Circlip SWB194... -
Page 17: Packer Depth
5.6 Packer Depth Item Part No. Description Quantity per machine SWM30004 M30 Nylock nut SWM30001 M30 washer SW227 15mm packer arm bush SW125 12mm packer arm bush SW129 15mm x 75 outer washer SWM30110 M30 x 110 bolt SW130 Packer depth pin SW105 Linch pin... -
Page 18: Main Frame And Wings
5.7 Main Frame and Wings... - Page 19 SW513 Trailed subsoiler RH wing frame SW514 Trailed subsoiler LH wing frame (not shown) SW692 A/R Trailed subsoiler RH wing frame (not shown) SW693 A/R Trailed subsoiler LH wing frame (not shown) SW142 50 x 58 x 50 Oilite bush...
-
Page 20: Lights
5.8 Lights Item Part No. Description Quantity/ machine SWM16001 M16 flat washer SWM16200 M20 x 150 U bolt SW444 Light bracket left SW445 Light bracket right (not shown) SWB165 Rubberlite rear light (complete) SWM8001 M8 flat washer SWM8003 M8 plain nut SWM16004 M16 nylock nut... -
Page 21: Leg Assembly - Shearbar
Quantity/ 7 leg machine 9 leg machine Item Part No. Description SWM30004 M30 nylock nut SWB106 Pin retainer Clip SW193 2007 subsoiler shear pin SWM30110 M30x110 bolt SW191 2007 subsoiler leg SW194 2007 subsoiler point c/w M16 nut and bolt... -
Page 22: Leg Assembly - Auto Reset
M12 flat washer SW399 Radius Arm SWM16004 M16 nylock nut SWM30004 M30 nylock nut SW400 35 x 125 Tabbed Pin SW191 Subsoiler leg SWM30001 M30 flat washer SWM30140 M30x140 bolt SWM16001 M16 flat washer SWM1665 M16x65 bolt SWB108 50x50x58 PB1 bush... -
Page 23: Packer, Scrapers And Bearings
5.11 Packer, scrapers and bearings Quantity/ 7 leg Quantity/ 9 leg Item Part No. Description machine machine SWB104 TMSF60 bearing SWM1670 M16 x 70 bolt SWM16001 M16 flat washer SWM16004 M16 nylock nut SW650 2009 scraper mount SW651 2009 full scraper plate SWM12100ub M12x100 U-bolt SWM12001... -
Page 24: Drawbar Hydraulics
5.12 Drawbar Hydraulics Item Part No. Description Quantity SWH293 780.120 ram SWH226 1/2" Hyd hose bottom ram to bulk head SWH227 1/2" Hyd hose top ram to bulk head SWH224 1/2" Hyd hose bulk head to spools (3500mm) SWH142 1/2" dowty washer SWH143 1/2"... -
Page 25: Wing Hydraulics
5.13 Wing Hydraulics... - Page 26 Item Part No. Description Quantity SWH145 15L tap SWH171 15L female to female fitting SWH144 15L bulk head fitting SWH155 12L cross SWH156 12L Tee SWH147 Male quick coupler 1/2’’ dowty washer SWH142 1/2’’ banjo bolt SWH143 SWH169 3/8" dowty washer SWH154 Pilot operated check valve SWH157...
-
Page 27: Auto Reset Hydraulic Circuit
5.14 Auto reset hydraulic circuit Quantity/ 7 leg Quantity/ 9 leg Item Part No. Description machine machine SWH125 705/2 ram SWH185 3/8" Hyd hose 400 banjo-12Lsw90 SWH156 12L Tee branch SWH169 3/8" dowty washer SWH170 3/8" Banjo bolt SWH184 Accumulator nut SWH178 Accumulator SWH180... -
Page 28: Auto Reset Hydraulic Circuit - Adjustment
5.15 Auto reset hydraulic circuit – Adjustment To increase the pressure in the Auto Reset hydraulic circuit, the correct procedure is as follows: 1. Open the taps near the depth wheel rams (both wings). 2. Raise the machine using the drawbar ram. 3. -
Page 29: Stickers And Paint
Description Quantity Part No. Big Sumo horizontal sticker SWB125 450 x 125mm Big Union Jack sticker SWB127 150 x 100mm Small Sumo Red and SWB199 White Sticker Sumo Red 1/2 litre SWB131 Touch up paint Sumo Black 1/2 litre SWB132...
