Sumo subsoiler Operator's Manual And Parts List
3, 4, 5 and 7 leg mounted machines
Hide thumbs
Also See for subsoiler:
- Operator's manual and parts list (27 pages) ,
- Operator's manual and parts list (29 pages) ,
- Operator's manual (48 pages)
Related Manuals for Sumo subsoiler
Summary of Contents for Sumo subsoiler
-

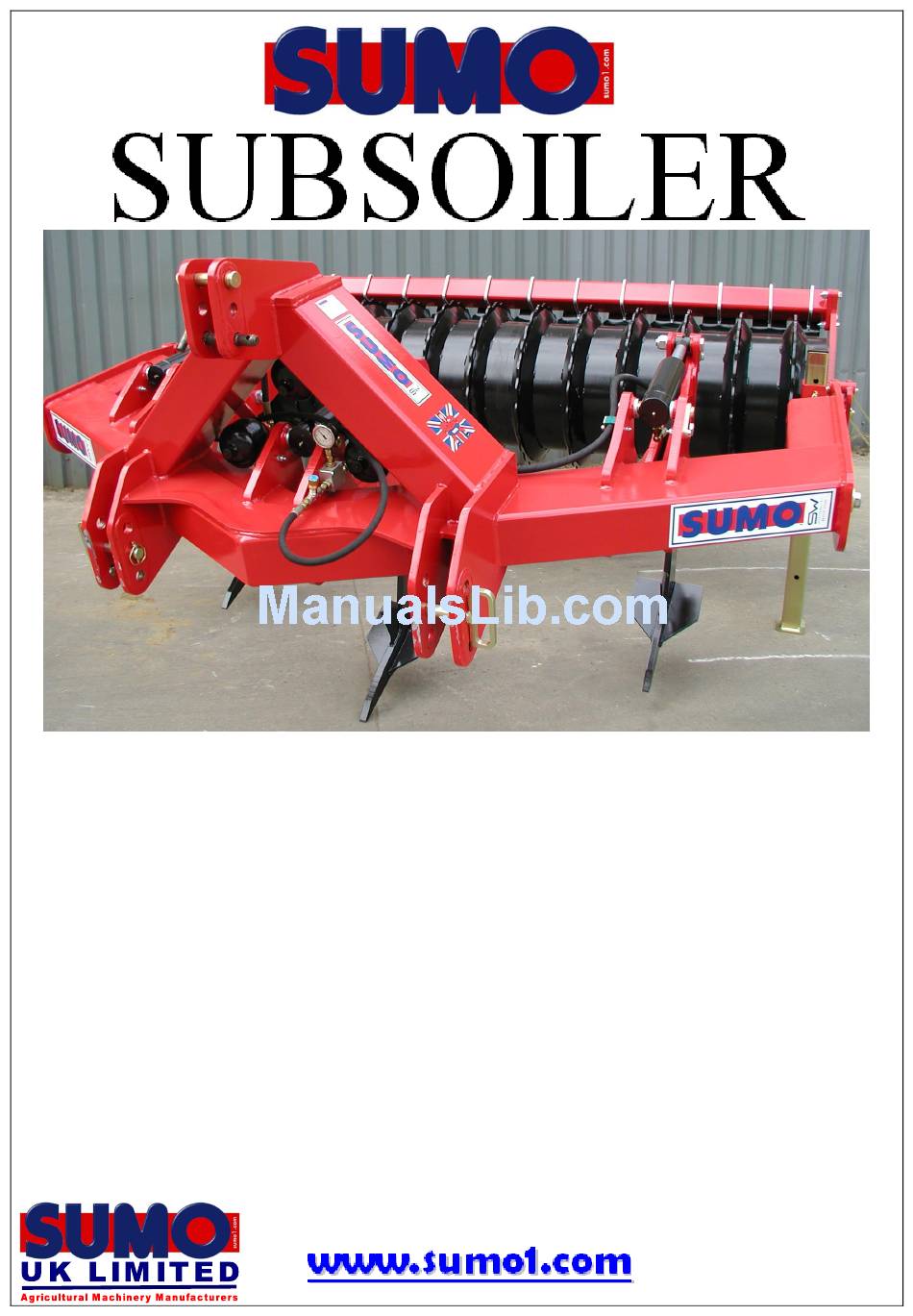

Page 1: Parts List
3, 4, 5 and 7 leg Mounted Machines 2010 Operator Manual Parts List Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901... -
Page 2: Registration
1.0 Registration To activate your SUMO Warranty, you must complete this page and send it back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 (NO REGISTRATION = NO WARRANTY) SUMO SERIAL No: For your own records. -
Page 3: Summary
This aggressive action increases the aeration, leaving a surface 50 - 100mm raised up. The Sumo range of Subsoilers can be used successfully as a primary and a secondary source of cultivation, leaving the surface weather proof and ready to drill. - Page 4 Table of Contents 1.0 Registration .............................. 1 2.0 Summary ..............................2 3.0 Safety ............................... 4 3.1 Qualification and Training ......................4 3.2 General safety ..........................5 3.3 Special safety instructions ......................5 4.0 Operation and Adjustment ........................6 4.1 Operating ............................6 4.2 Adjustments ............................
-
Page 5: Safety
(accident prevention). SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and ancillary equipment not supplied and/or approved by SUMO. -
Page 6: General Safety
3.2 General safety Warning signs and other notices on the machine provide important information for the safe operation. Observing them will serve your safety. Before starting work, make yourself familiar with all the equipment and controls as well as their functions. -
Page 7: Operation And Adjustment
The top link should be as short as possible whilst remaining as close to horizontal as is achievable. In the majority of cases this means using the bottom hole on the Subsoiler and the top hole on the tractor. It is important to ensure the machine is running level to allow the optimum level of soil disturbance as well as to prolong the life of the wearing parts. -
Page 8: Maintenance
The packer bearings should be greased with one pump once a week and after washing off. The condition of the subsoiler legs and the points should be regularly monitored in order to maintain the most efficient use of the machine. -
Page 9: Parts And Assembly
6.0 Parts and Assembly 6.1 Assembly Overviews Item Description Page Main frame Leg Assemblies 9 - 10 Point Assembly Depth control Packer Assembly Scraper Assembly Auto Reset Assembly... -
Page 10: Shear Pin Assembly
6.2 Shear pin Assembly Quantity/3leg Quantity/4leg Quantity/5leg Quantity/7leg machine machine machine machine Item Part No. Description SWB106 Shear bar R-Clip Subsoiler shear SW193 SWM30110 M30x110 bolt SWM30004 M30 nylock nut SW191 Subsoiler leg... -
Page 11: Leg Assembly – Auto Reset
M12 flat washer SW399 Radius Arm SWM16004 M16 nylock nut SWM30004 M30 nylock nut SW400 35 x 125 Tabbed Pin SW191 Subsoiler leg SWM30001 M30 flat washer SWM30140 M30x140 bolt SWM16001 M16 flat washer SWM1665 M16x65 bolt SWB108 50x50x58 PB1 bush... -
Page 12: Point Assembly
6.4 Point Assembly Quantity/ 3 leg Quantity/ 4 leg Quantity/ 5 Quantity/ 7 leg machine machine leg machine machine Item Part No. Description Subsoiler point c/w SW194 bolts and nuts SWM1665 M16x65 bolt SWM16004 M16 nylock nut SW191 Subsoiler leg... -
Page 13: Depth Control
SW125 12 mm spacer sm SWM300 M30 Nylock Packer depth adjust SW130 SWB105 Linch pin SW248 Subsoiler Packer Arm SW249 3 leg Main Frame SW729 4 leg main frame SW250 5 leg Main Frame SW251 7 leg Main Frame 1 (not shown) -
Page 14: Packer Assembly
SWM20004 M20 nylock nut 3 leg subsoiler scraper SW252 5 leg subsoiler scraper SW253 7 leg subsoiler scraper SW254 3 leg (3 m) subsoiler SW255 packer 5 leg (3.4 m )subsoiler SW256 packer 7 leg (4.7 m) subsoiler SW257 packer... -
Page 15: Scraper Assembly
M12x35 cup head square SWM1235chsq bolt 2007 scraper mount SW455 subsoiler SW456 2007 scraper plate subsoiler SW252 3 leg subsoiler scraper bar SW253 5 leg subsoiler scraper bar SW254 7 leg subsoiler scraper bar SWM12002 M12 spring washer SWM16004 M16 nylock nut... -
Page 16: Main Frame
AR 3 leg Main Frame SW728 AR 4 leg Main Frame SW402 AR 5 leg Main Frame SW403 AR 7 leg Main Frame Subsoiler Cat III top SW261 link pin SWB107 Cat III safety linch pin Subsoiler Cat III lower SW260... -
Page 17: Stickers And Paint
Description Quantity Part No. Big Sumo horizontal sticker SWB125 450 x 125mm Big Union Jack sticker SWB127 150 x 100mm Small Sumo Red and SWB199 White Sticker Sumo Red 1/2 litre SWB131 Touch up paint Sumo Black 1/2 litre SWB132... -
Page 18: Hydraulics
7.0 Hydraulics 7.1 Auto Reset Hydraulic Circuit Quantity/3 Quantity/5 Quantity/7 Quantity/4 machine machine machine Item Part No. Description leg machine SWH125 705/2 ram 3/8" Hyd hose 400 banjo- SWH185 12Lsw90 SWH156 12L Tee branch SWH169 3/8" dowty washer SWH170 3/8" Banjo bolt SWH184 Accumulator nut SWH178...
