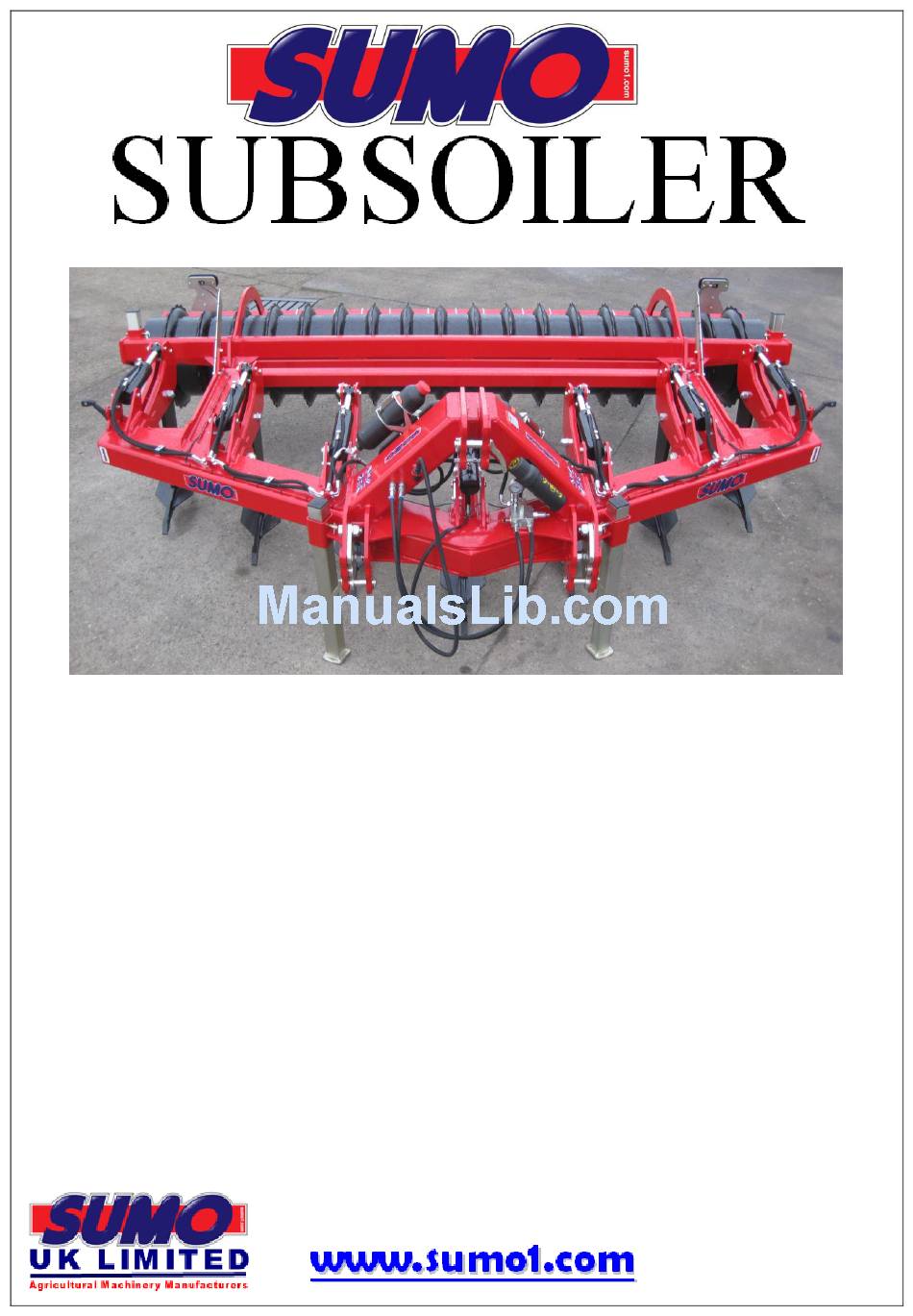

- Page 1 3, 4, and 5 leg Mounted Machi 3,4,5 and 7 Leg Mounted Subsoiler 2016 Operator Manual Redgates Parts List Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901...
-
Page 3: Registration
1.0 Registration To activate your SUMO Warranty, you must complete this page and send it back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 (NO REGISTRATION = NO WARRANTY) SUMO SERIAL No: For your own records. - Page 4 In order to obtain your free pair of Sumo overalls and baseball cap please fill in this form and send back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 SUMO SERIAL No:...
- Page 5 This aggressive action increases the aeration, leaving a surface 50 - 100mm raised up. The Sumo range of Subsoilers can be used successfully as a primary and a secondary source of cultivation, leaving the surface weather proof and ready to drill.
-
Page 6: Table Of Contents
Table of Contents 1.0 Registration ...Page 1 2.0 Summary ...Page 3 3.0 Safety ...Page 5 3.1 Qualification and Training ...Page 5 3.2 General Safety ...Page 6 3.3 Special Safety Instructions ...Page 6 3.4 Risk Assessment ...Page 7 4.0 Operation and Adjustment ...Page 8 4.1 Operating ...Page 8... -
Page 7: Safety
(accident prevention). SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and ancillary equipment not supplied and/or approved by SUMO. -
Page 8: General Safety
3.2 General safety Warning signs and other notices on the machine provide important information for the safe operation. Observing them will serve your safety. Before starting work, make yourself familiar with all the equipment and controls as well as their functions. -
Page 9: Risk Assessment
Description of machine: A three-point-linkage mounted farm implement consisting of 2 major elements. 1. A bank of staggered subsoiler legs. 2. A rigid packer roller All of the above is arranged in a heavy duty fabricated steel framework. The Machine is designed to couple to a suitably powered tractor. -
Page 10: Operation And Adjustment
The top link should be as short as possible whilst remaining as close to horizontal as is achievable. In the majority of cases this means using the bottom hole on the Subsoiler and the top hole on the tractor. It is important to ensure the machine is running level to allow the optimum level of soil disturbance as well as to prolong the life of the wearing parts. -
Page 11: Auto Reset
4.3 Auto Reset hydraulic circuit 1) To lift the legs up and out of the work position; pressurize line B (the lower of the two hoses entering the valve block & marked “B” on the valve itself). The legs will lift as oil is returned to the tractor through Line A. -
Page 12: Maintenance
The packer bearings should be greased with one pump once a week and after washing off. The condition of the subsoiler legs and the points should be regularly monitored in order to maintain the most efficient use of the machine. -
Page 13: Parts And Assembly
M16x65 Bolt SWM16004 M16 Nylock Nut SWM30140 M30x140 Bolt Drawings and design information found herein remain the sole property of Sumo SWM30001 M30 Washer UK Ltd. Reproductions may only be made with the permission of the owner. SWM30004 M30 Nylock Nut... -
Page 14: Shear Bar Assembly
Shear Pin Assembly SWM30110 M30 x 110 Bolt SWM30001 M30 Washer Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be SWM30004 M30 Nylock Nut made with the permission of the owner. SCALE 1:5... -
Page 15: Leg And Point Assembly
SWM1665 M16 x 65 Bolt SWM16004 M16 Nylock Nut Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be 25mm Weld on Leg SW192 made with the permission of the owner. Bottom... -
Page 16: Packer Bearing Assembly
5 Leg Subsoiler Scraper SW253 SW255 3 Leg Subsoiler Packer Drawings and design information found herein remain the sole property of Sumo SW1200 4 Leg Subsoiler Packer UK Ltd. Reproductions may only be made with the permission of the owner. - Page 17 Packer Depth Control 12mm Small SW125 Spacer Drawings and design information found SWM30004 M30 Nylock Nut herein remain the sole property of Sumo UK Ltd. Reproductions may only be Subsoiler Packer made with the permission of the owner. SW248 SCALE 1:5 REVISION:...
-
Page 18: Scraper Assembly
SWM12002 M12 Spring Washer SWM12003 M12 Plain Nut Drawings and design information found Triple Scraper herein remain the sole property of Sumo SW1003 Hanger (not UK Ltd. Reproductions may only be made with the permission of the owner. shown) SCALE 1:7... -
Page 19: Light Assembly
M16 nylock Nut Light Assembly SW761/SW760 Light Bracket L/H & R/H (not shown) Drawings and design information found herein remain the sole property of Sumo Wiring Loom (not UK Ltd. Reproductions may only be SWB175 made with the permission of the owner. -
Page 20: Main Frame
Main Frame 4 Leg Auto Reset SW1203 Main Frame Drawings and design information found herein remain the sole property of Sumo 5 Leg Auto Reset UK Ltd. Reproductions may only be SW402 made with the permission of the owner. Main Frame... - Page 21 3/8 hose 12LSF/ 3/8 SWH406 Banjo SWH407 3/8 hose 15LSF/ 12L45 Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be 3/8 hose 12LSF/ 1/2M made with the permission of the owner. SWH373 1500mm...
- Page 22 SWH411 3/8 hose 12LSF/ 3/8 Banjo Drawings and design information found SWH412 3/8 hose 12LSF/ 15LSF herein remain the sole property of Sumo UK Ltd. Reproductions may only be 3/8 hose 12LSF/ 1/2M made with the permission of the owner.
- Page 23 SWH402 560mm 3/8 hose 12LSF/ 12LSF SWH403 655mm Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be 3/8 hose 12LSF/ 1/2M made with the permission of the owner. SWH373 1500mm SCALE 1:17...
- Page 24 6.12 7 Leg Hydraulics...
- Page 25 DO NOT SCALE DRAWING Mounted Subsoiler MACHINE/COMPONENT: TITLE: 7 Leg Hydraulics Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be made with the permission of the owner. SCALE: 1:11 REVISION: DATE:...
- Page 26 DO NOT SCALE DRAWING Mounted Subsoiler MACHINE/COMPONENT: TITLE: 7 Leg Hydraulics Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be made with the permission of the owner. SCALE 1:11 REVISION: DATE:...
-
Page 27: Stickers
Description Quantity Part No. Big Sumo horizontal sticker SWB125 450 x 125mm Big Union Jack sticker SWB127 150 x 100mm Small Sumo Red and SWB199 White Sticker Sumo Red 1/2 litre SWB131 Touch up paint Sumo Black 1/2 litre SWB132...
