- Page 1 C U L T I V A T O R Operator Manual 2021 Range Sumo UK LTD, Redgates, Melbourne, York YO42 4RG. Copyright 2021...
- Page 2 Introduction Thank you for purchasing your new Sumo machine. We at Sumo pride ourselves in our ability to produce compact, heavy duty and quality machinery. We hope you enjoy our products and that it helps improve your productivity in every way. For any further enquiries about...
-
Page 3: Table Of Contents
Contents 1. Safety Page 5 Qualification & Training - Page 5 General Safety - Page 6 Personal Protective Equipment (PPE) - Page 7 Warning Symbols - Page 7 2. Product Summary & Machine Identification Page 10 Summary Description - Page 10 Intended Use - Page 11 Machine Identification... - Page 4 - Page 33 7. Optional Extras/Attachments Page 34 Point Variations - Page 34 Packer Options - Page 34 Sumo Seeder & Seeder Fitting Kit (SFK) - Page 35 Trailing Kit - Page 36 Front Discs - Page 36 Rear Drawbar...
-
Page 5: Safety
Qualification & Training Use of the machine by untrained operators can lead to injury or even death. To prevent accidents occurring ensure that operators have been trained by a Sumo dealer or technician. The following requirements must be met: Personnel must be of statutory minimum age in the country of operation. - Page 6 Any repair work to structural components of the machine must be carried out by a workshop approved by Sumo, otherwise the warranty will be invalidated. P a g e...
-
Page 7: General Safety
The following instructions are advised to help ensure this is made possible. Due to the nature of Sumo machines, the entire machine and surrounding area is classified as a Danger Zone, and the following instructions must be followed: Warning signs and other notices on the machine provide important information for safe operation. -
Page 8: Personal Protective Equipment (Ppe)
As a general rule, Sumo advise all PPE to be worn at all times, just to be safe. P a g e... -
Page 9: Warning Symbols
Sumo. If there are any warning/stickers you are unsure of, or you think maybe be missing, either on the machine or in this manual, make sure to contact Sumo or a local dealership before taking any further action. - Page 10 Closed top link only. Do not use Open Top Link. Never reach in to working parts. Risk of crush injury. Shear Pin Machines Only! Advance new replacement shear pin through two extra positions on this Keep Fingers Clear! Change leg depth from underneath. Stay clear of machine while manoeuvring, stationary but unsupported, and/or working.
- Page 11 Warning! Ensure stands are raised and safety link is removed before unfolding. Failure to do so will result in damage to the wings. 11 | P a g e...
-
Page 12: Product Summary & Machine Identification

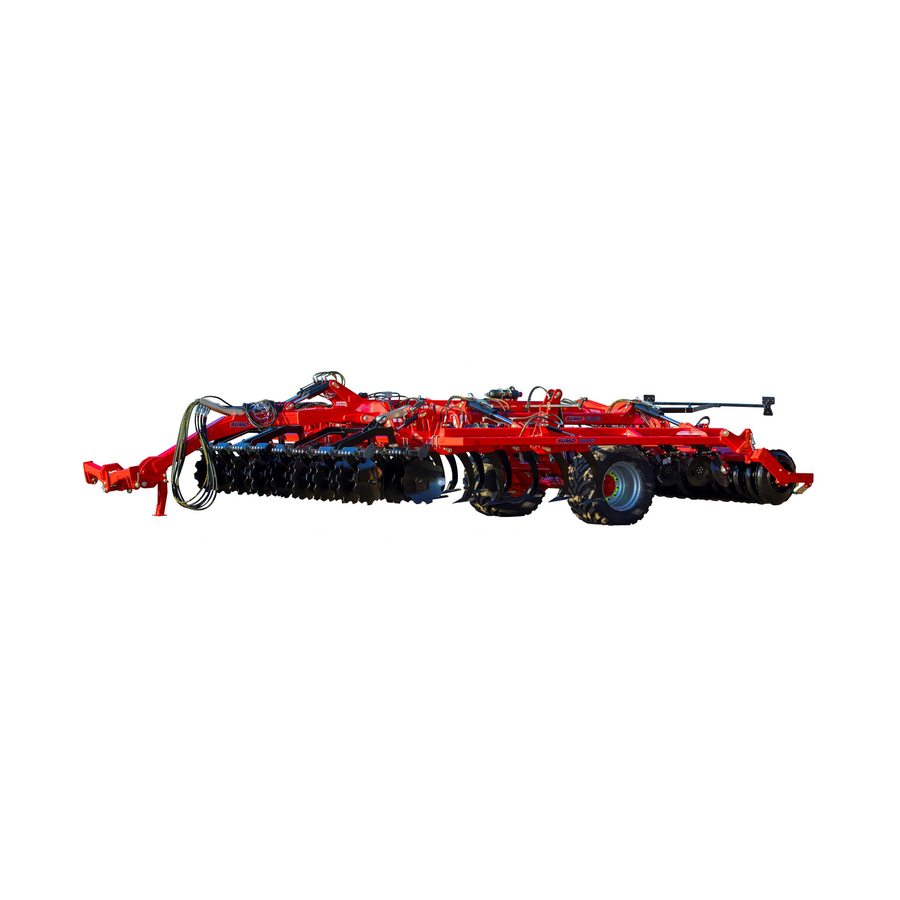

The following are brief summaries for each machine type, outlining the design concept and intended use. Trio - The Trio is a one pass seed bed preparation machine, designed to alleviate sub-surface compaction and mix stubble and soil, leaving a level surface ready for seeding. - Page 13 Front Multipacka - The Front Multipacka is a heavy-duty machine that breaks up the soil and creates an even consolidation, as well as having the benefit of acting like a front weight. 13 | P a g e...
-
Page 14: Intended Use
To identify your machine, find your serial plate and cross-reference the details with the Technical Data that follows. Note: It is important when talking to a Sumo representative that you provide the year of manufacture in order to ensure clarity of the machine being discussed, as different years may have slight or major design variations. - Page 15 Height have been omitted from all Mounted machines as the value is entirely dependent on the connected tractor. Machine Type Key: Mounted = Machine mounted directly to a Tractor. Rigid = Trailed Machine that does not fold. Folding = Trailed/Mounted Machine that hydraulically folds. Trio Range Code Machine Working Length Width...
- Page 16 Multipress Range Code Machine Working Length Width Height Weight Type Width (m) (kg) MUL3 Mounted 2440 MUL5 Folding 7.91 3.35 6950 MUL6 Folding 7.91 3.59 7770 Mixidisc Range Machine Working Code Length Width Height Weight Type Width (m) (kg) MIX3 Mounted 2010 MIX4...
- Page 17 S4SP Folding 2360 S4AR Folding 2575 S5SP Folding 3000 S5AR Folding 3250 SF7SP Folding 7204 SF7AR Folding 8014 SF9SP Folding 8248 SF9AR Folding 8818 Note: SP = Shear Pin, AR = Auto Reset. See adjustments section of this manual for more details.
-
Page 18: Preparation & Set Up
3. Preparation & Set Up The following statements apply to the full range of Sumo cultivators. For an overview of your specific machine, see associated Machine Manual and Parts Book in conjunction with these instructions. Pre-Check & System Overview Before performing any other action on a Sumo machine, always check the following: Check the machine for worn or loose parts, mechanical and structural integrity, hydraulic leaks, exposed or corroded wires, warning label cleanliness and clarity. - Page 19 Fixed (3) Adjustable Bolted Standard Hydraulic Connections – Colour Code Sumo’s colour coding is done through a sequence of cable ties attached to the individual hydraulic hoses, as seen in this picture. Before connection, ensure all connections are cleaned to reduce the risk of contamination.
-
Page 20: Mounted Machines
Ensure hose is depressurised before coupling/uncoupling. 3.2.1 Mounted Machines Due to the physical nature and weight distribution of some Sumo machines a category three enclosed ball top link is highly recommended. Due to the exaggerated loads experienced during normal working conditions, the top link pin is considered as a consumable part and should be checked for wear on a regular basis. -
Page 21: Electronics Connection & Testing
Never uncouple on an uneven or unstable surface. Ensure both the tractor and the Sumo machines are on level, solid ground and put them in a secured configuration, by use of handbrakes, chocks and any other movement prevention systems available. - Page 22 Locate machine on the provided stands, or parking elements (see parking section of this manual), Depressurise all hydraulics before disconnection, and ensure all electrics are detached and safely tied back. Only once the machine is fully stabilised and clear of the tractor linkage should the tractor be driven slowly away, remaining vigilant to not drag or knock the machine.
-
Page 23: Transportation
& loading. Due to the length and design of many Sumo machines, the transportation wheels are often to the rearmost of the machine meaning it will cut corners. Care must be taken to ensure a wide swing and reasonable turning arc is maintained to avoid any fouling of other vehicles or road markings/obstacles. -
Page 24: Transport Guidelines & Route Planning
It is the sole responsibility of the operator to ensure they comply with all local road laws and Sumo accepts no liability for negligence or carelessness. - Page 25 Fixed Stands Fixed Stands generally consist of a welded bracket, a bolted joint and a pin, offering two positions: In Work and Retracted. Simply remove pin, rotate the bracket until in retracted or in work position and re-insert pin. Pins must always be secured with an additional lynch pin.
- Page 26 Adjustable Jack Stands: Adjustable jack stands generally consist of winding or lever systems allowing for a much slower and measured movement, whilst also providing greater support, or assistance with hitching/unhitching. To position an adjustable jack stand, support stand with one hand and pinch the two clasp levers together with your other hand until clear of holes, then lower slowly pivot and lower the unit down until in next set of holes.
-
Page 27: Pneumatic Brakes
Crank Lever Release Winding Handle Catch 4.3.3 Pneumatic Brakes Pneumatic brakes generally consist of two brake cylinders (one per wheel), a pressurised air tank, a set of configured brake levers (Both usually located at the rear of the machine closest the axle/wheels), and an REV (Typically located near the front of the machine). -
Page 28: Hydraulic Brakes
4.3.4 Hydraulic Brakes Hydraulic brakes generally consist of two hydraulic cylinders attached directly to the axle brake levers, typically located at the rear of the machine/mid- machine axle. For connection details, see Hitching and tractor connections section of this manual. Example: 28 | P a g e... -
Page 29: Operation & Adjustment
5. Operation & Adjustment Before using any Sumo machine, you must ensure you are qualified and trained to use the machine in the safest possible manner. Familiarise yourself with both the machine and this manual and follow its instructions. Sumo will accept no liability for any persons trained/untrained using the machine inappropriately. -
Page 30: Hydraulics
Accumulators Sumo hydraulic systems use high pressure accumulators, which can present a danger if tampered with or misused. This includes drilling, welding or any other process that could compromise the safety of the accumulator. It is expressly forbidden for an operator, or any third party to dismantle or adjust the accumulator in any way. -
Page 31: Leg Depth
This will set the working depth for any related elements. The machine should then be levelled/limited through the use of the cylinder shim holder, see Shim holders’ section. For trailed machines, the retractable wheel axle can now be retracted. 5.2.2 Leg Depth It is advised that the soil is assessed prior to working to determine the level of compaction within the soil profile and the depth this compaction is at. -
Page 32: Shear Pin
5.2.3 Shear Pin (SP) Shear pins only need adjusting once the shear pin has sheared off. Simply remove the retention clip, correct the angle of the Retention leg and advance the shear pin through legs oblong hole to the Clip next stage, re-insert retention clip. -
Page 33: Discs
Even though the pressure is locked in the circuit, this system does remain active in that the legs can be raised up out of work. The tractor hydraulics should be returned to float to relieve any back pressure before commencing work at the new pressure Note: It is advised that on a machine fitted with auto reset legs the double acting feature is used in road transport to retract the legs and reduce the overall width... -
Page 34: Paddles
5.2.6 Paddles Paddle arrangements operate using a simply tilt mechanism linked to a sequence hydraulic cylinders. To lower or raise, simply adjust the hydraulic pressure, hydraulic connections section of this manual. 5.2.7 Scrapers Scrapers come in an assortment of brackets and profiles, depending on the packer type &... -
Page 35: Depth Wheel
5.2.9 Depth Wheel Depth wheels come in a variety of different forms, but generally work either on a simple pin or top link system. For Pin Systems, simply remove the pin, raise and lower the depth wheel to the desire specification and reinsert the pin. -
Page 36: Parts Replacement
& Parts Book. For any parts not covered in these documents, contact Sumo directly, as they may be relevant to a set period of manufacture. Sumo do not sanction the use of any products/parts not produced and managed by Sumo. Using external products will invalidate your warranty. -
Page 37: Maintenance & Storage Program
Some Sumo parts are intended to be wearable due to the nature of their design and use. For best results, check routinely and replace as required. This will help prevent loss/destruction of implements during work. -
Page 38: Cleaning
Storage It is generally advised to store Sumo machines in their folded positions to minimise the exposure of unpainted rams, and lessen the impact on tools/wearable components. Follow all parking guidance given within this manual. Wherever possible, try to find a sheltered environment. -
Page 39: Optional Extras/Attachments
7. Optional Extras/Attachments A variety of machines come with the options for multiple extras or attachments. For a list of available options, please consult your Sumo catalogue, contact your local dealership or Sumo directly, or search online – www.sumo1.com. The following is a general overview of the Standard available options, there intended use, and any special safety measures associated with that part/assembly. -
Page 40: Sumo Seeder & Seeder Fitting Kit (Sfk)
Roller – Is most suited to intensive consolidation of varying soil types. Sumo Seeder & Seeder Fitting Kit (SFK) The Sumo Seeder is the perfect addition for the decerning customer wishing to optimise their primary-activity output and productivity. These fit a wide variety of machines and can be bought in isolation or with specific fitting kits designed specifically to match your machine. -
Page 41: Trailing Kit
Trailing Kit Pre-2012 machines only. Trailing Kits offer our customers the unique opportunity to transform their old mounted trio into a trailed machine complete with a front drawbar and rear axle, allowing for better ground control and easier transportation. Trailing kits are adjusted in the same way as the regular trailed machines. -
Page 42: Wheel Eradicators
Wheel Eradicators Sumo Wheel eradicators are designed to disrupt the compaction created by the tractor’s tyres using shear pin technology, and are very easily adjusted due to the handy bolt design, facilitating multiple tractor axle widths. Adjustment: Simply loosen the clamp bolts joint and slide to match wheel base, then re-tighten. -
Page 43: Straight Leading Disc
Changing this bolt position can allow the harrow to sit at three different angles of scarification. Height Adjustment: The entire harrow assembly can be moved to a lower position by moving the pivot to a lower hole. This can be particularly useful when the tines have worn down. Pivot Reverse Break- Angle 3... -
Page 44: Hydraulic Parking Stand
7.13 Single Disc Opener’s (SDO’s) Sumo bolt on SDO’s come in three forms; standard outlets, bolt on racks, or trailed folding racks, depending on the machine and desired use. Standard Outlets Our standard outlets come in a variety... - Page 45 Bolt-On Racks Sumo SDO racks are design to slice through the ground at a desired set height and seed directly after. For ease of assembly, Sumo SDO racks can be purchased, and attached to the rear of a packer frame via the use of two or three adjustable bolted clamps, allowing the SDO rack to lift and fold in accordance with the packer’s movement.
-
Page 46: Homologation
For all the follow points, proper PPE and care must be taken. Read and follow the instructions given within this manual exactly. Anything un resolved must be needs to be brought to the attention of your dealer/sumo representative. Mechanical Assemblies... -
Page 47: Electrical Faults
Electrical Faults Problem Solution Control Box 4-Way: Check Box is plugged in correctly, turn it on and off again, if No Green Light no green light, check 20A fuse, replace if faulty, if not faulty, replace LED Electric Wiring / If under Warranty period contact dealer. -
Page 48: External Documentation
9. External Documentation The following documents must be read and adhered to whilst using any piece of Sumo equipment. This is for your own safety and the safety of those around you. List of Machine Manuals & Parts Book A full list of Machine Manuals & Parts Books can be found at www.sumo1.com. Note: The manuals and machine parts books are relative to the time of purchase/date of manufacture and may not fully represent your machine.
