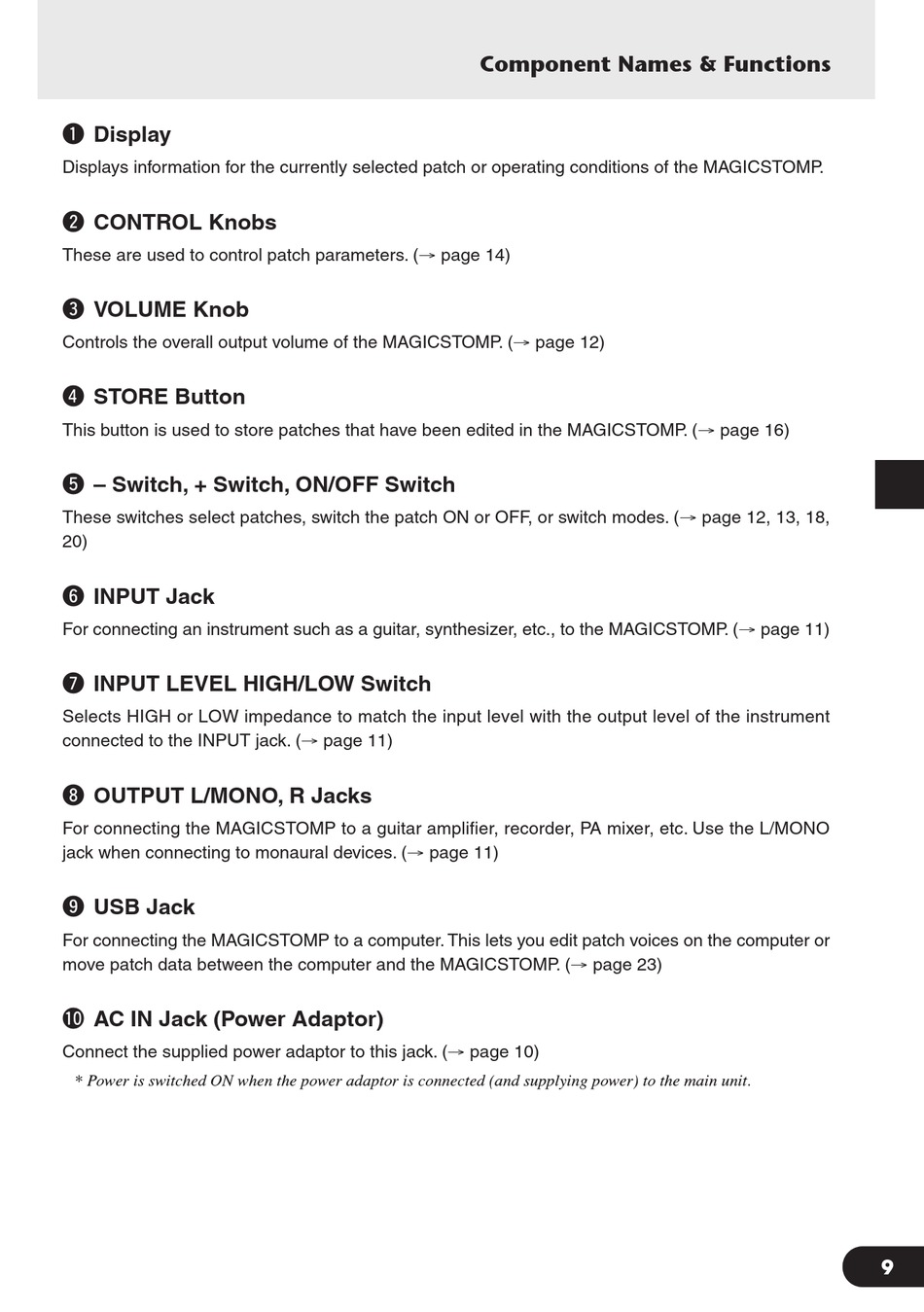

Component Names & Functions
q Display
Displays information for the currently selected patch or operating conditions of the MAGICSTOMP.
w CONTROL Knobs
These are used to control patch parameters. (→ page 14)
e VOLUME Knob
Controls the overall output volume of the MAGICSTOMP. (→ page 12)
r STORE Button
This button is used to store patches that have been edited in the MAGICSTOMP. (→ page 16)
t – Switch, + Switch, ON/OFF Switch
These switches select patches, switch the patch ON or OFF, or switch modes. (→ page 12, 13, 18,
20)
y INPUT Jack
For connecting an instrument such as a guitar, synthesizer, etc., to the MAGICSTOMP. (→ page 11)
u INPUT LEVEL HIGH/LOW Switch
Selects HIGH or LOW impedance to match the input level with the output level of the instrument
connected to the INPUT jack. (→ page 11)
i OUTPUT L/MONO, R Jacks
For connecting the MAGICSTOMP to a guitar amplifier, recorder, PA mixer, etc. Use the L/MONO
jack when connecting to monaural devices. (→ page 11)
o USB Jack
For connecting the MAGICSTOMP to a computer. This lets you edit patch voices on the computer or
move patch data between the computer and the MAGICSTOMP. (→ page 23)
!0 AC IN Jack (Power Adaptor)
Connect the supplied power adaptor to this jack. (→ page 10)
* Power is switched ON when the power adaptor is connected (and supplying power) to the main unit.
9
