Connecting To An Ibm-Pc/At Series Computer - Yamaha Clavinova CLP-820 Owner's Manual

HOST SELECT TO HOST
PC-2 PC-1
MIDI Mac
Set to the "PC-2"
position.
IBM-PC/AT
Series Computer
• If your system doesn't work properly with the connections and settings listed above, your software may require
NOTE
different settings. Check your software operation manual and if it requires a 31,250 bps. data transfer rate, set the
HOST SELECT switch to "PC-1".
• When using the TO HOST terminal to connect to a personal computer using Windows, a Yamaha MIDI driver must
be installed in the personal computer. The Yamaha MIDI driver can be obtained at Yamaha's home page on the
World Wide Web, <http://www.yamaha.co.jp/english/xg/>.
Connector Pin Numbers
MINI DIN 8-PIN
6 7 8
3 4 5
1 2
D-SUB 9-PIN
5 4 3 2 1
9 8 7 6

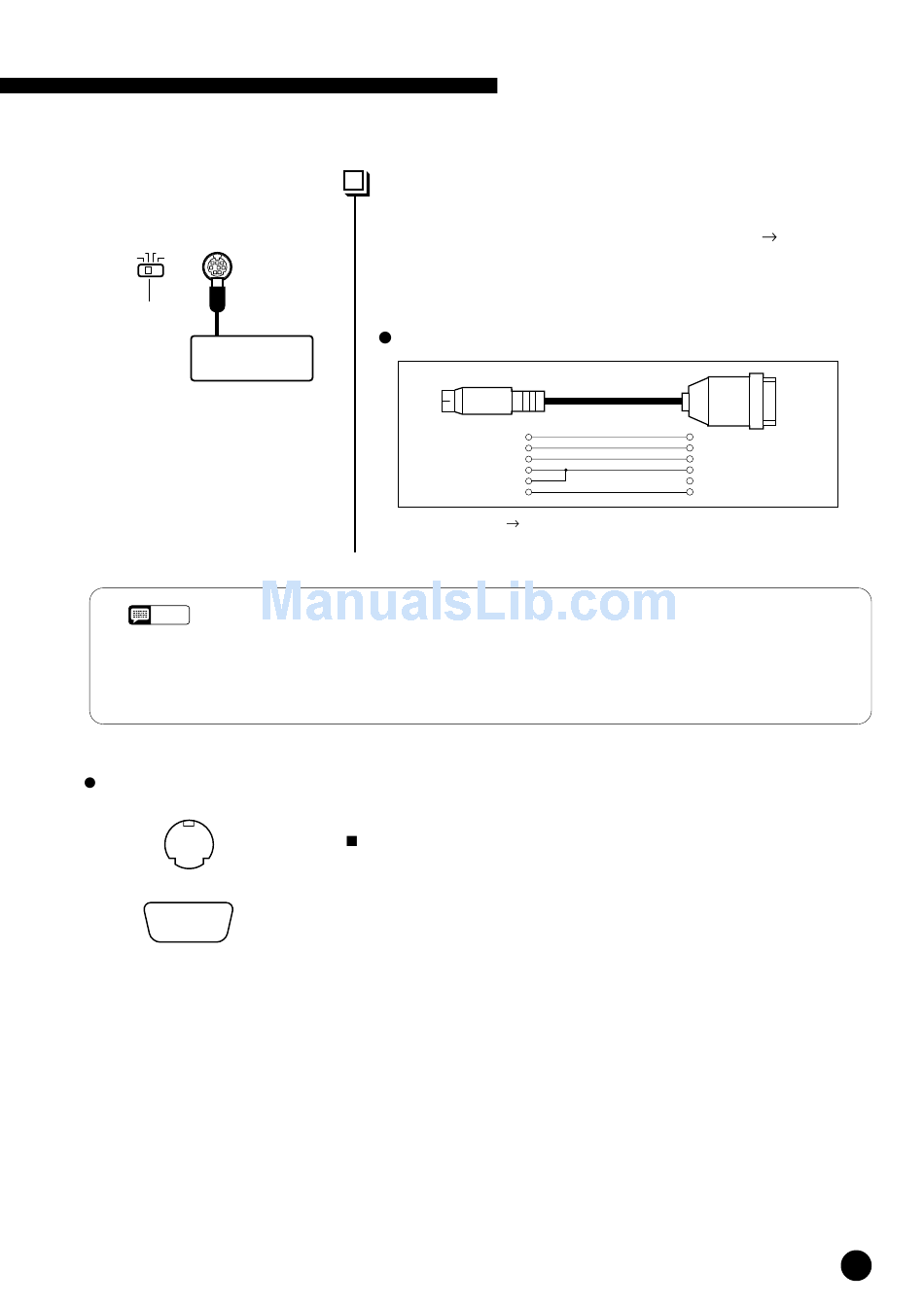

Connecting to a Personal Computer

Connecting to an IBM-PC/AT Series Computer

Connect the TO HOST connector of the Clavinova to the RS-232C port
on your IBM computer, using a standard 8-pin MINI DIN
cross cable. Set the HOST SELECT switch to the "PC-2" position.
Refer to your software owner's manual for information on any
settings you might have to make on the computer side.
"PC-2" Cable Connections
MINI DIN
8-PIN
1
2
3
4
8
5
• 8-pin mini DIN
• Data transfer rate: 38,400 bps.
Trademarks
• Apple and Macintosh are trademarks of Apple Computer, Inc.
• IBM-PC/AT is a trademark of International Business Machines Corporation.
• Windows is the registered trademark of Microsoft® Corporation.
All other trademarks are the property of their respective holders.
8 (CTS)
7 (RST)
2 (RxD)
5 (GND)
3 (TxD)
9-pin D-SUB cable.
............
9-pin D-SUB
D-SUB
9-PIN
39
CLP-880/860/840/820/820S
