Keysight N2140A Quick Start Manual

The probe cable is a sensitive part of the probe
and, therefore, you should be careful not to
damage it through excessive bending or pulling.
Avoid any mechanical shocks to the product to
guarantee accurate performance and protection.
Do not use the probe assembly if the red wear
indicator in the cable has become visible.
Some of the probe tips / accessories are very
sharp. You should handle these with care to
avoid personal injury.
Use only Grounded instruments. Do not connect
the probe's ground lead to a potential other than
earth ground. Always make sure that the probe
and oscilloscope are grounded properly.
Connect the probe to the oscilloscope and
connect the ground lead to earth ground before
connecting the probe to the circuit under test.
Disconnect the probe input and the probe ground
lead from the circuit under test before
disconnecting the probe from the oscilloscope.
Indoor Use Only. Do not operate in wet / damp
environments. Keep product surfaces dry and
clean.
Do not operate in an explosive environment.
Safety and Regulatory Information
CSA is the Canadian certification mark to
demonstrate compliance with the Safety requirements.
The CE mark is a registered trademark of the
European Community. ISM GRP 1-A denotes the
instrument is an Industrial Scientific and Medical
Group 1 Class A product. ICES/NMB-001
indicates product compliance with the Canadian
Interference-Causing Equipment Standard.
This symbol indicates the Environmental Protection
Use Period (EPUP) for the product's toxic
substances for the China RoHS requirements.
CAT II IEC Measurement category II is for measurements
performed on circuits directly connected to the
low voltage installation. Example. Household
appliances portable tools, and similar equipment.
If your probe requires cleaning, disconnect
it from the instrument and clean it with
mild detergent and water. Make sure the
probe is completely dry before connecting
it to the instrument.
© Keysight Technologies 2016
N2140-92000, July 2016,
Printed in USA
*N2140-92000*

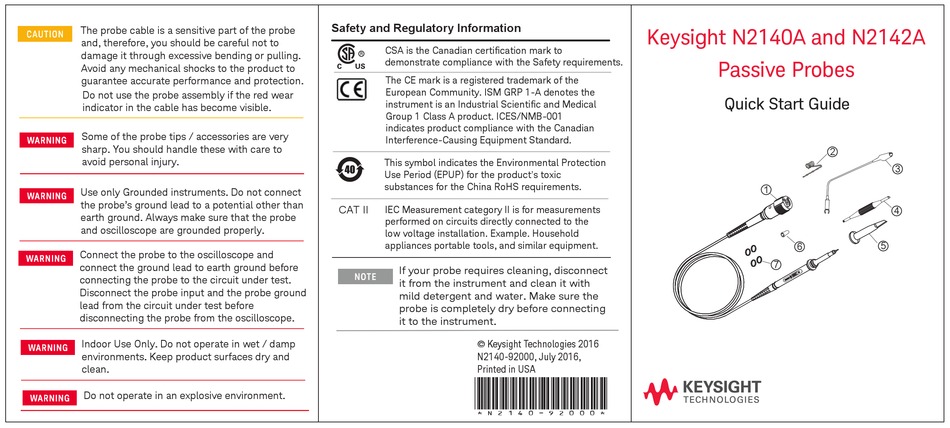

Keysight N2140A and N2142A
Passive Probes
Quick Start Guide
1
6
7
2
3
4
5
