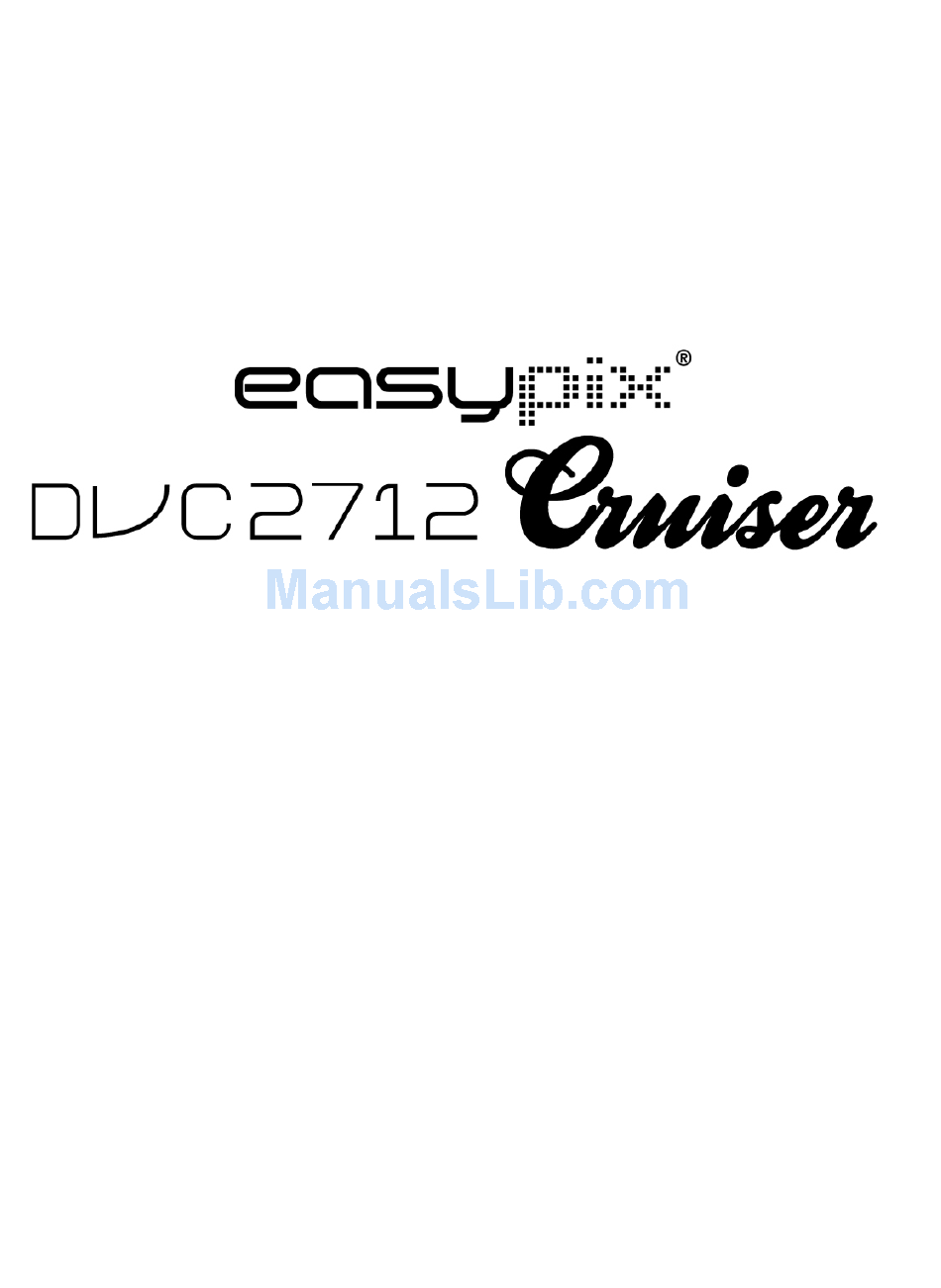

  • Page 1 User manual...
  • Page 2 Functions & Features The digital camcorder has various features and functions: l Digital Video l Digital Camera (5 million pixels) l 2.7″ resistive touch screen l Mass Storage (Removable disk) l PC Digital Video (Camera) l 8x digital zoom Accessories You will find the following main accessories after opening the package: USB connector Installation CD...
  • Page 3 Introduction...
  • Page 4 (1) Shutter key (2)Shaft (3) Hang rope buckle (4) Display screen (5) AV port (6) TF card slot (7) USB port (8) Power key (9) Mode switch key (10) Menu key (11) Charger light (12)W key (13) T key(14) Loudspeaker (15) Lens (16) LED fill light (17) Microphone...

  • Page 5: Start Using

    Camera key press functions and indicators Press/Indicator Functions Power key Turn the digital camcorder on/off Video mode, record video/stop recording, shooting Shutter key mode, act as a shutter Digital enlargement and digital zoom, select document by pressing T key left (playing back mode). Press up to select menu. After opening menu, the volume will be turned up (when display video)；...

  • Page 6: Switch Mode

    ─────────────────────────────────────────────── Note：lTurn the power off before replacing the memory card. lInsert cards in correct direction. Do not insert cards with large force to avoid damaging cards or any part of the digital video. If failed, check whether the direction is correct. l...
  • Page 7 Tap the center of the touch screen once to start recording; press it again to stop. Shoot In the shooting mode, press Shoot key to take photos. Tap the center of the touch screen once to start shooting. Self-timer mode: start countdown after pressing the Shoot key. Take one photo after delaying 2s or 10s.
  • Page 8 Play video: use Left/right keys to select targeted videos, and then press Shutter key to play. Press this key again to stop playing. During playing, press OK key to suspend, and then press such key again to continue playing. After selecting videos, tap icon to play it.

  • Page 9: Menu Settings

    ─────────────────────────────────── ─ NOTE：lIf setting auto power off on "OFF", the camera will not power off automatically until the power is low. ─────────────────────────────────── ─ Menu Settings In the shooting/video recording/playing back modes, press Menu key to open the menu, and then press Up/Down/Left/Right key to select menus, then press OK key to enter sub-menu.

  • Page 10: Connect To Computer

    Date & Time Settings Press Menu key to open the menu, and then press Left/Right keys to enter Setting menu. Press Down key to select the option of Date & Time, and then press OK key to enter the setting interface. In the setting interface, press Left/Right keys to select items to be adjusted (date or time).

  • Page 11: Advanced Operation

    Advanced Operation Video Recording Mode After being turned on, the digital camcorder will enter the video recording mode automatically. Press Shutter key to start recording, and press such key again to stop recording. After reaching a max. video recording time of 29 minutes the camera will automatically stop.
  • Page 12 White It indicates the current settings for white balance balance. Metering mode It indicates current metering mode. Video format It indicates current video resolution. The free time indicates the remaining Recording time available recording time; the recording time indicates the recorded time. icon indicates to insert the TF card memory card.
  • Page 13 Zoom It indicates the current times for digital instruction zoom. Menu Settings for video recording Press Menu key to open Video recording. Press T/W key to select menus, and then press shutter key to enter sub-menus. Press Menu key or OK key to return to the main menu.
  • Page 14 It subjects to one spot Spot metering when metering Auto It is fit for many conditions. It is fit for day light Day light circumstance. It is fit for cloudy Cloudy day White balance circumstance. It is fit for fluorescent lamp Fluorescent lamp circumstance.

  • Page 15: Shooting Mode

    When shooting/video recording, the date will be Date print on the lower right corner of files. When shooting/video recording, the date and Date & Time time will be print on the lower right corner of files Shooting Mode After being turned on, the digital camcorder will enter the video recording mode automatically, please press Mode Switch key to enter the shooting mode.
  • Page 16 1 2 3 4 5 6 7 Icon Name Description Shooting It indicates that it is able to take photos by mode pressing Shutter key in the shooting mode. Countdown for It instructs the countdown for self-timer. self-timer White It indicates the current settings for white balance balance.
  • Page 17 Available It indicates the remaining numbers of photos numbers of available to be taken. photos It indicates current ISO setting. The power Tap it on the touch screen to turn on/off LED on/off for LED fill light. fill light Menu key on the touch Tap it to open the menu.
  • Page 18 Zoom It indicates the current times for digital instruction zoom. Menu setting for shooting mode Press Menu key to open Shooting menu. Press T/W key to select menus, and then press shutter key to enter sub-menus. Press Menu key or OK key to return to the main menu.
  • Page 19 Excellent Excellent picture quality Picture quality Good Good picture quality Normal Normal picture quality It subjects to the central Central metering area when metering Multi-spot It subjects to multi spots Metering mode metering when metering It subjects to one spot Spot metering when metering Auto...
  • Page 20 Use the normal single photo shooting mode Use the 2s delayed self-timer mode. Shooting mode Use the 10s delayed self-timer mode. Continuous Continuous shooting shooting Normal Normal effect Black & White Black & White effect Return to the Return to the ancients ancients effect Special effects...
  • Page 21 When shooting/video recording, the date will be Date print on the lower right corner of files. When shooting/video recording, the date and Date & Time time will be print on the lower right corner of files. AUTO Set ISO value as Auto ISO 100 Set ISO value as 100 ISO 200...
  • Page 22 ◆ Display information on playing back mode screen 7 8 9 10 11 Icon name Description Playing back Indicates in playing back mode mode Document Indicates current document has been locked to protect. protection Indicates current document has Voice memo added voice memo After enlarging photo, click four icons Translational...
  • Page 23 When current document is photo, click this icon to enter photo enlargement state; when current Display icon document is video, click this icon to display video. Click this icon to display slide Slide automatically. Click this icon to select document to Right icon right.
  • Page 24 Menu Settings for Playing Back Mode Press Menu key to open the main menu, and then press Up/Down keys to select. Press OK key to enter the sub-menus. Press Menu key or OK key to return to the main menu. Press Up/Down keys to select, and then press OK key to confirm.
  • Page 25 Add voice memo to photos Voice memo Delete Delete voice from photos Note: It is able to add voice memo up to 30s to every photo. In the playing back mode, photos with voice memo will have icon. Press OK key to start to play voice memo, during which press Up key to suspend playing or press Menu key to stop playing.
  • Page 26 Main Menu Sub Menu Description Shutter On/off Starting up No/1/2/3 tone Sound Key tone On/off Volume 0/1/2/3 No playback after shooting Auto playback Playback 1s after shooting Playback 3s after shooting Set light source frequency as 50Hz 50HZ Power frequency Set light source frequency as 60Hz 60HZ...
  • Page 27 Disable the function of auto power off. Set date & time, together with the Date & Time date format English Set the menu language as English Français Set the menu language as French. Set the menu language as Español Spanish. Language Italiano Set the menu language as Italian.
  • Page 28 Connect Computers to Download Photos/Videos After connecting the digital camcorder with a computer and entering the removable disk mode, there will be a new removable disk in My Computer interface. Any shot photos or recorded video will be stored under the directory “DCIM\100MEDIA”...

  • Page 29: Installing Driver And Software

    Please ensure that selecting the Preview the menu of Option Installing driver and software The accessory CD contains the camera driver and provided software MAGIX Video easy SE / MAGIX Photo Manager MX (for photo and video processing). Installation interface Please insert the CD into the CD-ROM, the system will automatically run the installer in the CD, and the screen shows the installation wizard window as below.
  • Page 30 (The installer may take several seconds to start, depending on the PC performance. If the installation window doesn’t appear, please run “Windows Explorer”, and select “autorun.exe” in the CD.) Installing driver In the installation wizard window, click the “Install Driver” button and follow the wizard to install step by step.
  • Page 31 Specification Image sensor 5 million pixels CMOS image sensor Photo 12M (4000 x 3000), 8M (3264 x 2448), 5M (2592 x 1944), 3M (2048 x 1536)，1M（1280x1024） resolution Memory Card External TF card（4GB to 32GB） File format JPEG, AVI FHD1920x1080，HD 1280X720，VGA 640×480 Video resolution Self-timer delay 2 s / 10s...
  • Page 32 Focus distance f=5.8mm Aperture F2.8 Auto power off 1 min / 3 min /5 min/OFF Operating system Microsoft Windows 7, 2000,XP,VISTA requirements Size 110.5 mm × 55.7 mm × 21 mm Note: The design specification of the product was formulated according to the latest information when compiling this instruction.
  • Page 33 Camera menu. DECLARATION OF CONFORMITY easypix herebly declares that the product DCV2712 is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_dvc2712.pdf For technical help please visit our support area on www.easypix.eu.
