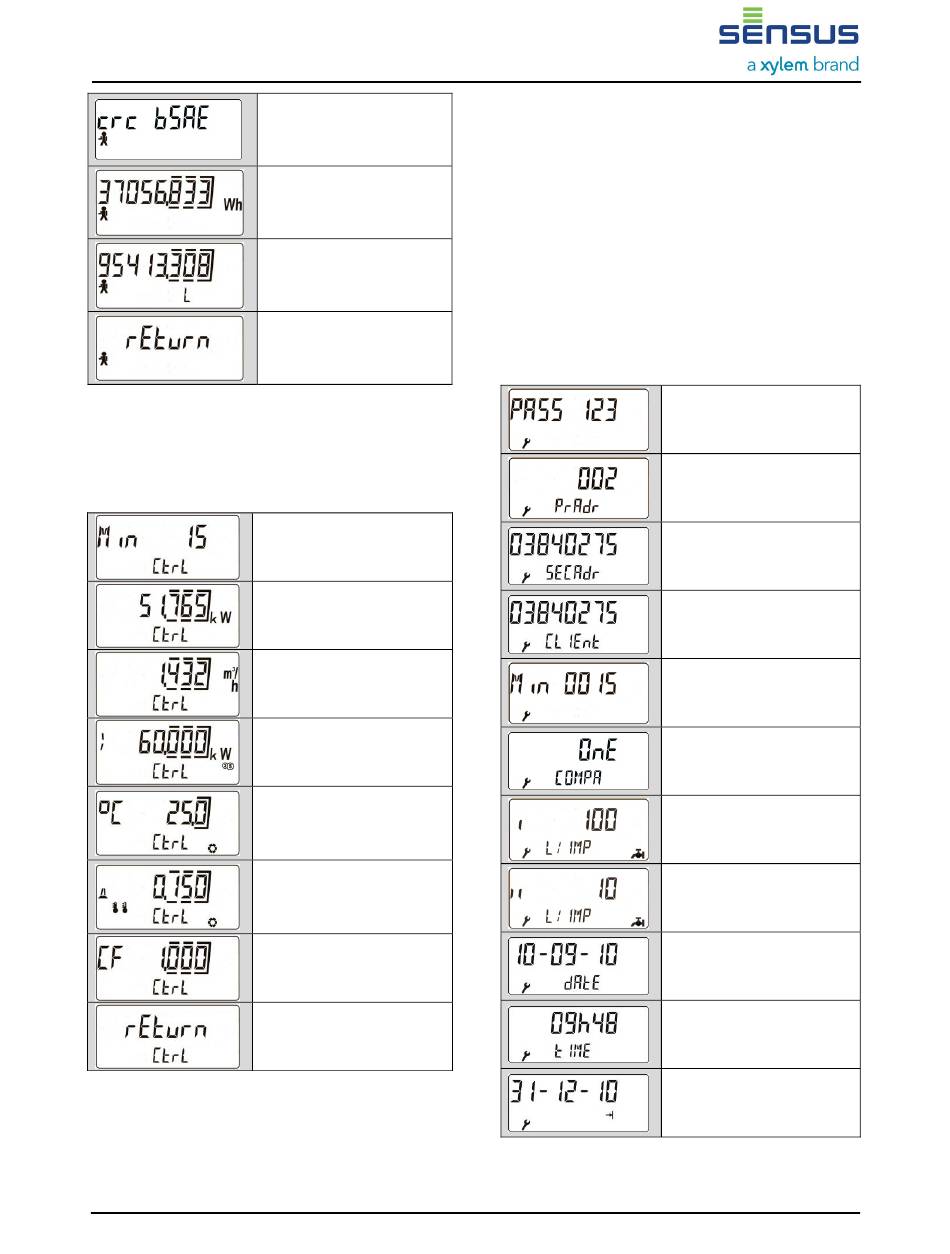

8.5 Control menu for tariff purposes (example)

Each display item is marked with the letters „Ctrl".
The settings for the tariff functions can be
controlled here.
Preset averaging interval
for flow rate and power
Power in current
averaging interval
Flow rate in current
averaging interval
Set tariff 1
(if activated) *
Switchover point for
supply temperature cool
metering
(if activated) *
Switchover point for
negative temperature
difference cool metering
(if activated) *
Correction factor for water-
antifreeze mixtures (if
activated)
Return to selection menu
(push for 2 seconds)

8.6 Parameter menu (example)

Each display item is marked with the tool symbol.
This menu is protected by password. The
password corresponds to the last three digits of
the eight-digit serial number on the meter housing.
At the beginning "000" appears. Push the key for
approx. 2 seconds; the zero on the left side starts
flashing. By continuously pushing the key the
value of the flashing digit can be changed. As
soon as the desired value is obtained release the
key. A short key stroke confirms the set value and
switches to the next position. Proceed as
mentioned in the previous step. After setting the
last digit the level is activated.
The desired positions can now be selected by
short keystroke; adjusting the values is similar to
the password entry procedure.
Default values are read out with the setting "OnE
COMPA". The setting
additionally activates the read out of further
information.
Password scan
Setting
primary M-Bus address
Setting
secondary
M-Bus address
Setting
customer's refernce
number
Setting
averaging interval for flow
rate and power
Setting data transmission
mode (One, All, One Plus,
One Compa)
Input pulse value first
external meter
(0,25 to 10.000 L/pulse) *
Input pulse value second
external meter
(0,25 to 10.000 L/pulse.) *
Set date
Set time *
Set target day
M H 6111 INT PolluTherm, page 9
"OnE, OnE Plus, ALL"
