Heat / Cooling meter integrator PolluTherm
Installation and operation instructions
The factory presetting of the secondary address
and the customer number corresponds to the
serial number shown on the meter housing). The
primary address can be set between 0 and 250
and is preset in the factory to 0.
Battery devices have an M-Bus credit. Depending
on the number of meters the daily reading is
therefore limited. The M-Bus credit will be
switched off when the device is retrofitted from
battery to mains operation; the communication is
then unlimited (see chapter 11.12 "Retrofitting
from battery to power supply unit").

11.3 Remote reading plug-in unit

Remote reading plug-in
number: 68503920) for output of heat quantity and
volume pulses (for mains-operated devices only)
Remote reading plug-in unit FZS/B (order number:
68503922) for output of heat quantity pulses (for
battery-operated devices)
Closing time: ca. 125 ms
Max. voltage: 28 V DC or AC
Max. power: 0,1 A
Bounce- and potential free
11.4 M-Bus plug-in unit with two contact
inputs
Order number: 68504686
In addition to the plug-in units specified in chapter
8.3 there is the possibility to connect two external
consumption meters (cold water, warm water,
electricity, gas, others) with passive remote
reading contact (reed switch or open collector).
Specifications of the contact inputs:
Required closing time:
Input frequency:
Terminal voltage:
Preprogrammed factory setting of both contact
inputs:
- Input 1: cold water meter, pulse value 10 litres,
initial meter reading 0,00 m³
- Input 2: warm water meter, pulse value 10 litres,
initial meter reading: 0,00 m³
The activation of the inputs has to be done via
the service software MiniCom, menu item
"set pulse input parameters".
The meter IDs of the pulse meters have to be set
there as well as the primary M-Bus addresses if
necessary; check "counter 1 (2) visible on the M-
Bus". Starting meter reading and pulse value can
also be adapted. Afterwards the pulse meters are
unit FZS/N (order
> 62,5 ms
< 3 Hz
3 V
available as autonomous M-Bus meters on the M-
Bus. The consumption of the pulse meters will not
be transferred in the M-Bus protocol of the heat
meter.

11.5 USB plug-in unit (for M-Bus slot)

Order number: 68504688
With this plug-in unit the integrator can be
connected with a PC / Notebook or Handheld
Computer with USB input. If an M-Bus plug-in is
installed it has to be removed beforehand. To
connect you need a software driver that is
supplied on a disk (incl. driver installation
description).
11.6 LONWORKS ® -FTT10A (for M-Bus slot)
This plug-in module (order number: 68504857) is
used to implement the meter via LONTALK
protocol into a building automation system. A
driver software is included on a Mini CD. For
detailed information please refer to datasheet LH
6130 INT.
11.7 Inserting the plug-in unit into the heat
meter
Valid modules may only be mounted in the
designated slots.
Remote pulse
plug-in FZS/B
with battery or
FZS/N (Mains)

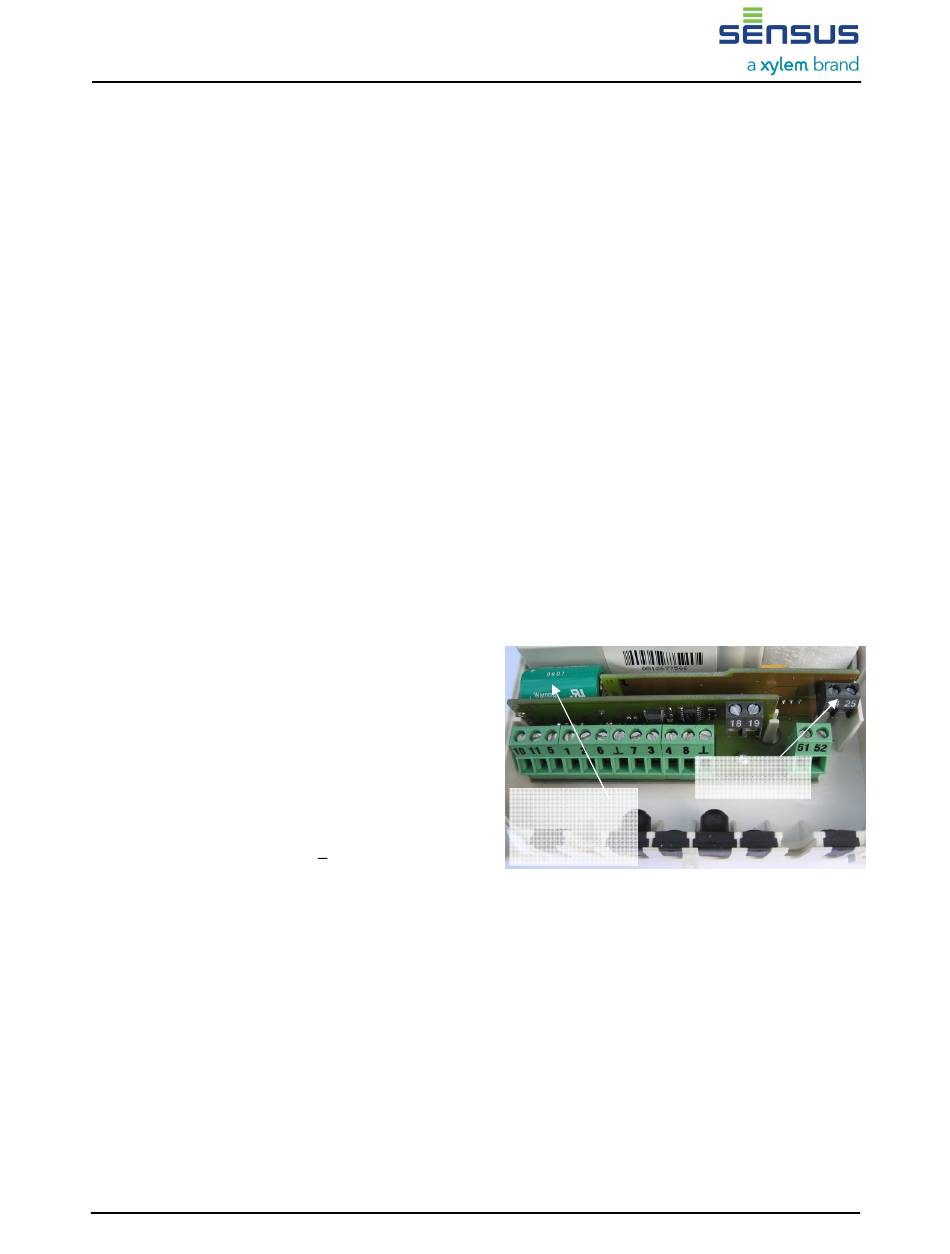

Figure 14: mounting of the plug-in units
Insert the plug-in units in the white plastic slide on
the left and right side.
The contact pins may not be bent; they easily
slide into the appropriate contact sockets.
Lead the contact cable through the hole in the
preshaped rubber part and tie the stain relief with
the supplied cable binder. Connect the cores with
the appropriate terminals and insert the rubber
part again.
11.8 Combined heating/cooling meter
(ordering option)
Description:
PolluTherm H or PolluTherm X H
M H 6111 INT PolluTherm, page 11
®
M-Bus plug-in
(rear slot)
