Electrical Connections, Leds - MICRO-EPSILON C-Box/2A Operating Instructions Manual

Installation and Mounting
4.2

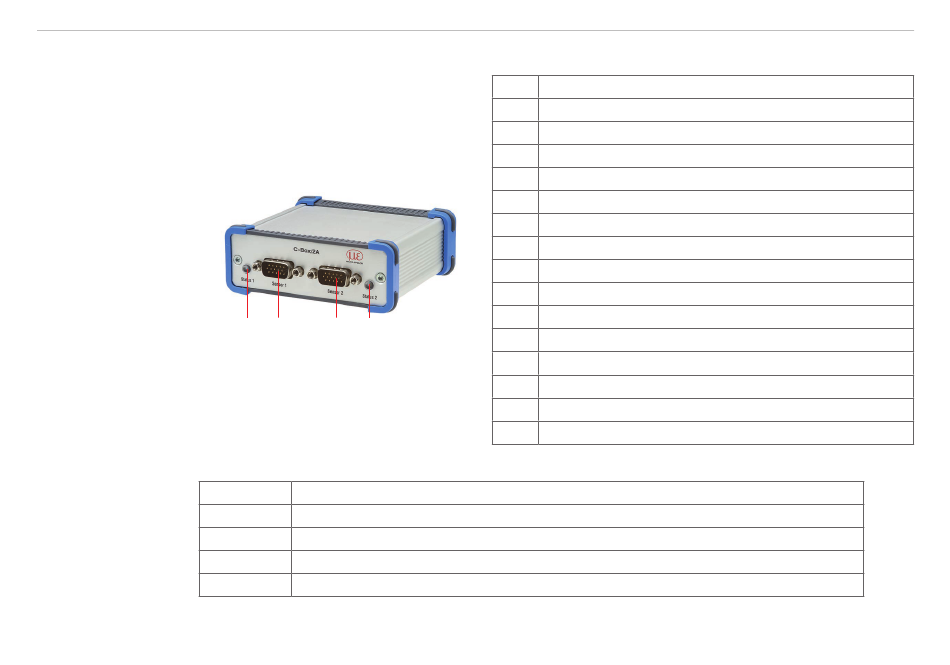

Fig. 2 Pin assignment sensor connector (2), sensor 1 resp. sensor 2
LED color
Off
Green
Red
Orange
Fig. 3 Description LED (1) for sensor 1 resp. sensor 2
C-Box/2A

Electrical Connections, LEDs

1
1 2 2
Description
Sensor not connected
Sensor in measurement mode and within the measurement range
Sensor in measurement mode and sensor outside the measurement range
Sensor in setup mode (no measurement output)
Pin Signal
1 RS422 TxD-
2 RS422 TxD+
3 RS422 RxD-
4 RS422 RxD+
5 GND
6 RS422 TRG+
7 RS422 TRG-
8 5V CMOS output (reserve, do not connect)
9 Power supply +24 V via power connection
10 Power supply +24 V via power connection
11 Multfunction output TTL or HTL compatible
12 Laser on, HTL compatible
13 NC
14 NC
15 GND
Page 14
