EEI –1415

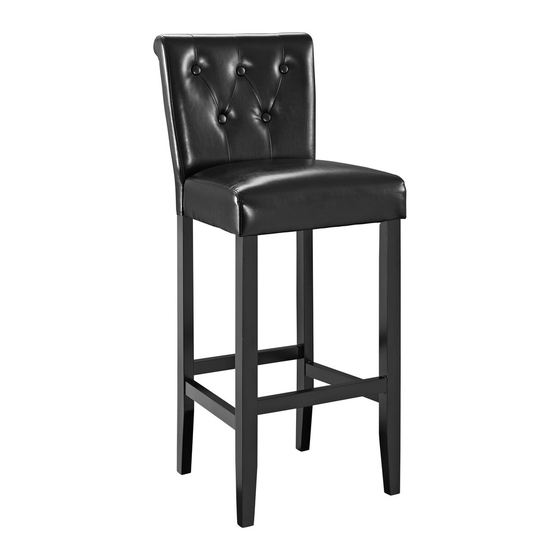

BARSTOOL
Thank you for purchasing the MODWAY BARSTOOL!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the barstool, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
1
Chair Back
x1
5
Left Stretcher
x1
Customer Service 908-368-1025︱www.modwayfurniture.com
2
5
7
3
2
Seat Frame
x1
6
Right Stretcher x1
Hardware:
A
B
C
D
E
F
PHILLIPS HEAD SCREW DRIVER
1
6
4
3
Left Front Leg
x1
7
Front Stretcher x1
Bolt M8x50mm
x 5
Bolt M8x57mm
x 4
Spring Washer M8
x 9
Flat Washer M8
x 9
Screw M4x41mm
x 6
Allen Wrench
x 1
NOT PROVIDED
4
Right Front Leg
Page 1 of 3
x1
Advertisement
Related Manuals for modway EEI-1415
Summary of Contents for modway EEI-1415
- Page 1 EEI –1415 BARSTOOL Thank you for purchasing the MODWAY BARSTOOL! Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the barstool, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –1415 BARSTOOL STEP 1: Please put the Chair Back (1) upside down on a carpeted or padded area. Then open the black fabric which is attached by Velcro from back to front on the bottom of the Seat Frame (2). The inside of the Seat Frame(2) will now be visible.
- Page 3 EEI –1415 BARSTOOL STEP 3: Insert the Front Stretcher (7) into Left Front Leg (3) and Right Front Leg (4) as shown. Secure them by using 2 pieces of Screw (E) with Phillips Head Screw Driver (Not provided). Repeat the same steps for the remaining Left Stretcher (5) and Right Stretcher (6). Do not fully tighten Screws (E) at this step.
