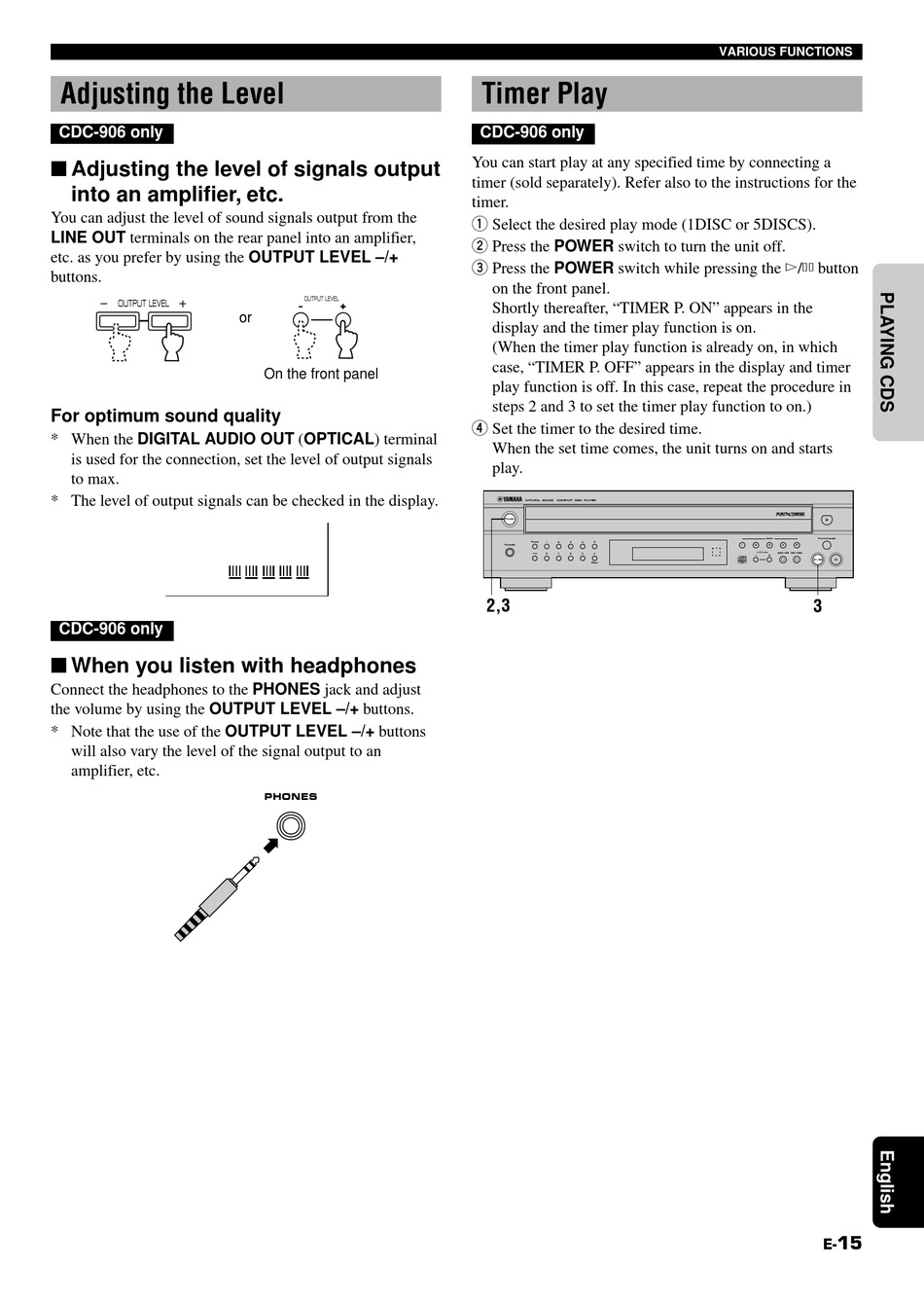

Adjusting the Level

CDC-906 only
Adjusting the level of signals output
into an amplifier, etc.
You can adjust the level of sound signals output from the
LINE OUT terminals on the rear panel into an amplifier,
etc. as you prefer by using the OUTPUT LEVEL –/+
buttons.
— —
OUTPUT LEVEL
For optimum sound quality
* When the DIGITAL AUDIO OUT (OPTICAL) terminal
is used for the connection, set the level of output signals
to max.
* The level of output signals can be checked in the display.
CK
CDC-906 only
When you listen with headphones
Connect the headphones to the PHONES jack and adjust
the volume by using the OUTPUT LEVEL –/+ buttons.
* Note that the use of the OUTPUT LEVEL –/+ buttons
will also vary the level of the signal output to an
amplifier, etc.
OUTPUT LEVEL
or
On the front panel
6 7 8 9 10
11 12 13 14 15
16 17 18 19 20
PHONES

Timer Play

CDC-906 only
You can start play at any specified time by connecting a
timer (sold separately). Refer also to the instructions for the
timer.
1 Select the desired play mode (1DISC or 5DISCS).
2 Press the POWER switch to turn the unit off.
3 Press the POWER switch while pressing the w/d button
on the front panel.
Shortly thereafter, "TIMER P. ON" appears in the
display and the timer play function is on.
(When the timer play function is already on, in which
case, "TIMER P. OFF" appears in the display and timer
play function is off. In this case, repeat the procedure in
steps 2 and 3 to set the timer play function to on.)
4 Set the timer to the desired time.
When the set time comes, the unit turns on and starts
play.
NATURAL SOUND COMPACT DISC PLAYER
POWER
PROG 1 2 3 4 5
PHONES
+10 6 7 8 9 0
PEAK
2,3
VARIOUS FUNCTIONS
DISC PLAYXCHANGE
1 2 3 4 5
OUTPUT LEVEL
3
15
