Page 1: Compact Disc Player

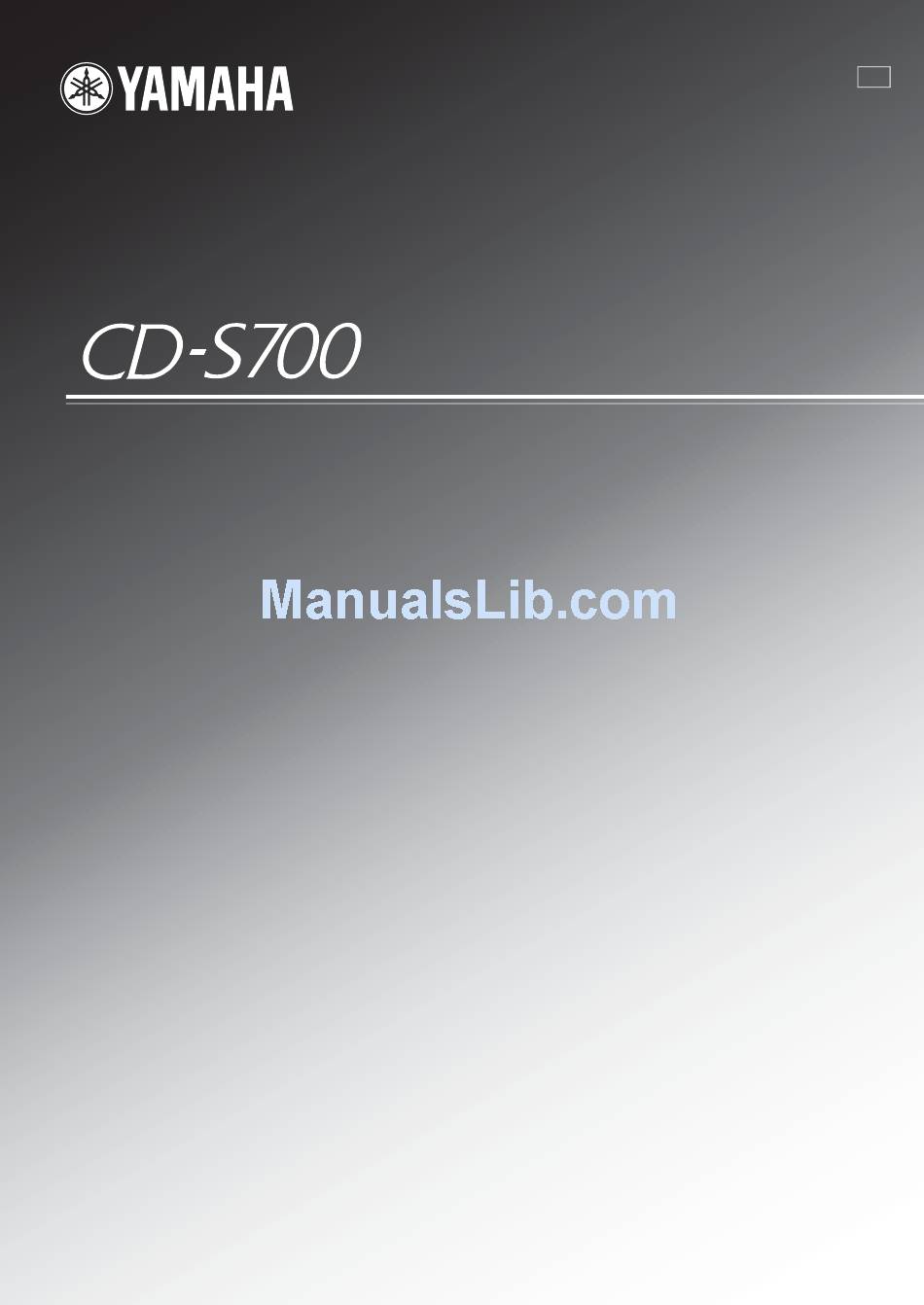

Compact Disc Player Lecteur Compact Disque OWNER’S MANUAL MODE D’EMPLOI... -
Page 2: Important Safety Instructions
We Want You Listening For A Lifetime Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion –... - Page 3 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2 IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
- Page 4 Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
-
Page 5: Table Of Contents
INTRODUCTION FEATURES... 2 SUPPLIED ACCESSORIES ... 2 CONTROLS AND FUNCTIONS ... 3 Front panel ... 3 Front panel display ... 4 Remote control... 5 Installing batteries in the remote control ... 6 Using the remote control ... 6 PREPARATION CONNECTIONS ... 7 Connecting your amplifier... -
Page 6: Introduction
INTRODUCTION ◆ Optical Digital Output ◆ Coaxial Digital Output ◆ CD-R, CD-RW Disc Playability (For details, refer to page 17.) ◆ MP3, WMA Disc Playability ◆ MP3, WMA File Playability Stored on USB Device Please check that you received all of the following parts: Remote control FEATURES ◆... -
Page 7: Controls And Functions
CONTROLS AND FUNCTIONS Front panel 1 POWER Press to turn the power to ON/OFF. The POWER indicator above lights up when this unit is turned 2 USB port Connect your USB device. See page 8 for details. 3 PURE DIRECT Turn PURE DIRECT mode on or off to improve audio quality. -
Page 8: Front Panel Display
CONTROLS AND FUNCTIONS Front panel display Audio CD Data Disc Lights up the icon for the selected playback mode. Shows the time displays. (Refer to page 12.) Shows the track number selected or being played back. Shows the file number. Lights up when this unit is in disc mode (refer to page 9) and also when an Audio CD is recognized on the tray. -
Page 9: Remote Control
Remote control CONTROLS AND FUNCTIONS 1 Infrared signal transmitter (p. 6) Send infrared signals to this unit. 2 CD/USB (p. 9) Switch between disc mode and USB mode. 3 DIMMER (p. 12) Select brightness level for the front panel display. 4 Numeric buttons (p. -
Page 10: Installing Batteries In The Remote Control
CONTROLS AND FUNCTIONS Installing batteries in the remote control Press the part and slide the battery compartment cover off. Insert two supplied batteries (AA, R6, UM-3) according to the polarity markings (+ and –) on the inside of the battery compartment. Slide the cover back until it snaps into place. -
Page 11: Preparation
PREPARATION Connecting your amplifier CAUTION • Before making any connection, switch OFF the power to the unit, the amplifier and any other component. • Connections should be made to the correct input terminals of the amplifier or another component. • If the placement of this unit causes noise to another equipment, such as a tuner, move them further away from each other. -
Page 12: Connecting The Supplied Power Cable
USB port on this unit, only one of the memory cards is recognized. • Yamaha and suppliers accepts no liability for the loss of data saved on the USB devices connected to this unit. As a precaution, it is recommended that the files are made backup copies. -
Page 13: Operation
OPERATION This manual describes how to operate this unit by using the remote control. To operate this unit from the front panel, use the corresponding buttons on the front panel. Audio CD Data Disc used in the operation. Press POWER to turn on the power. Press CD/USB to switch between disc mode and USB mode. -
Page 14: Pausing Playback
BASIC OPERATION ■ Playing back USB devices Connect your USB device to the USB port on the front panel. (For details, refer to page 8.) When USB mode is selected (USB indicator lights up), first filename is displayed in the front panel display (refer to page 12), and playback starts automatically in order by date and time of creation if playable files are in the USB device. -
Page 15: Skipping To The Beginning Of A Desired Track
• Press PURE DIRECT again to turn off PURE DIRECT mode. • This setting is retained even if you turn off this unit. Skipping to the beginning of a desired track Audio CD Data Disc To play back from the beginning of the next track, press once. -
Page 16: Changing Front Panel Display
BASIC OPERATION Changing front panel display ■ When playing back an Audio CD Audio CD You can select the following front panel displays (1 - 3) by pressing DISPLAY. 1 Elapsed time of the current track (Default) 2 Remaining time of the current track 3 Remaining time of the disc ■... -
Page 17: Random-Sequence Play
RANDOM-SEQUENCE PLAY Audio CD Data Disc You can play back the tracks in random sequence. To perform random-sequence play Press , and then, RANDOM. To cancel random-sequence play Press Repeating a selected item Audio CD Data Disc You can play back a single track or all tracks repeatedly by pressing REPEAT during playback. -
Page 18: Repeat A-B
REPEAT PLAY Repeat A-B Audio CD You can repeat a specified section of a track by pressing A/B during playback to set two points (start and end points). Press A/B to select the start point of repeat play. “A-” lights up. Press A/B to select the end point of repeat play. -
Page 19: Program Play
Audio CD You can customize the playback order of up to 50 tracks stored on an Audio CD. This operation is not available for Data Disc and USB. Press s to stop playback. Press PROGRAM. • In this mode, the front panel display shows as normally, even when this unit is in PURE DIRECT mode. -
Page 20: Stopping Program Playback
PROGRAM PLAY Stopping program playback Press s. To restart program play, press h after pressing PROGRAM. Playback starts from the first programmed track number. Clearing programmed track There are several methods, as described below. ■ Clearing the last programmed track Press CLEAR during program input mode. -
Page 21: Additional Information
ADDITIONAL INFORMATION NOTES ABOUT DISCS/MP3, WMA FILES ■ Discs playable with this unit Audio CD Data Disc This player is designed for playing back compact discs bearing the marks shown below. Never attempt to load any other type of disc into the unit. The unit can also play back 8-cm (3-inch) compact discs. - Page 22 NOTES ABOUT DISCS/MP3, WMA FILES ■ Notes about handling compact discs • Always handle a disc with care so that its surface is not scratched. • Compact discs are not subjected to wear during playback, but damage to the disc surface when the disc is being handled can adversely affect the disc playback.
-
Page 23: Troubleshooting
If the unit fails to operate normally, check the following points to determine whether the problem can be corrected by the simple measures suggested. If it cannot be corrected, or if the problem is not listed in the Problems column, disconnect the power cable and contact your authorized Yamaha dealer or service center for help. Problems... -
Page 24: Specifications
TROUBLESHOOTING Problems Wrong distance or angle. The remote control does not work or function properly. Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is striking the remote control sensor of this unit. The batteries are weak. Audio Section •... - Page 25 (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident). The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge for parts or labour.
- Page 26 © 2008 Yamaha Corporation All rights reserved. Printed in Malaysia WQ01730...
