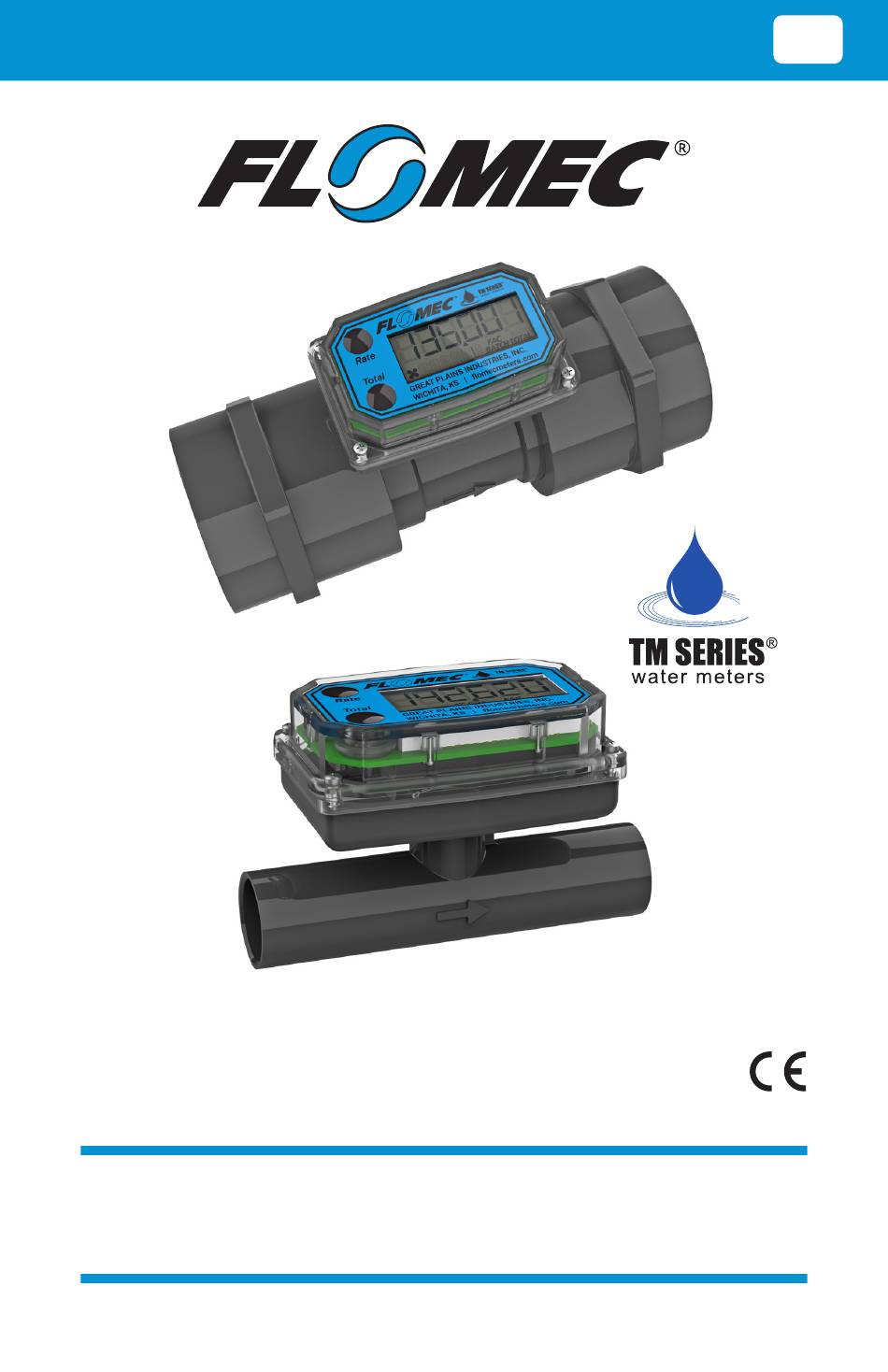

- Page 1 Product Owner’s Manual TM Series Electronic ® Water Flowmeters 1/2 INCH - 2 INCH METER SIZES [TM05XXXXXX - TM20XXXXXX MODELS] 07/16/2020 920786-02 Rev D...
- Page 2 Please save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Please refer to back cover for information regarding this product’s warranty and other important information.
-
Page 3: Before You Begin
• DO NOT use to meter fuel or incompatible chemicals. • TM Series meters are very sensitive to electric noise if operated within 1 to 2 inches of some electric motors or other sources of electronic noise. •... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS IMPORTANT: It is your responsibility to: • Ensure that all equipment operators have access to adequate instructions concerning safe operating and maintenance procedures. Compatibility of this product’s material and the process fluid and/or environment should be considered prior to putting into service. -
Page 5: Specifications
SPECIFICATIONS TM05 - TM07 - TM10 - TM15 - TM20 - 2 INCH 1/2 INCH 3/4 INCH 1 INCH 1-1/2 INCH Type Turbine Flowmeter Unit of Gallon or Litre Measure 1-10 GPM 2-20 GPM 5-50 GPM 10-100 GPM 20-200 GPM Flow Range 3.8-38 L/min 7.6-76 L/min... - Page 6 SPECIFICATIONS ( CONTINUED ) TM Meter Length (A) Height (B) Width (C) Size & Fitting Dimensions 4.3 in. 2.5 in. 2.1 in. TM05S - Spigot (109 mm) (63 mm) (53 mm) 6.0 in. 2.7 in. 2.1 in. TM05N - NPT (152 mm) (68 mm) (53 mm)
-
Page 7: Installation
INSTALLATION IMPORTANT: TM Series meters are available with either a computer for local electronic display, or three versions of output modules (see PARTS section of this manual) to provide a digital signal to customer interfacing equipment. TM Series meters with computer display ship pre-configured from the factory in either gallons or liters. -
Page 8: Operation / Calibration
Q9 Owner’s Manual (Non-Agency) Field Calibration Section for further instructions (see below). NOTE: Make sure you meet the meter’s minimum flowrate requirements: TM Series Meter Minimum Flowrate TM05 - 1/2 inch 1 GPM (3.8 L/min) TM07 - 3/4 inch 2 GPM (7.5 L/min) -
Page 9: Maintenance
MAINTENANCE NOTE: Proper handling and care will extend the life and service of the meter Turbine Rotor The meter is virtually maintenance-free. However, it is important the rotor moves freely. Keep the meter clean and free of contaminants. If the rotor does not turn freely, apply a penetrating lubricant on the rotor, shaft and bearings. Remove any debris or deposits from the rotor using a soft brush or small probe. -
Page 10: Parts And Service
PARTS / ACCESSORIES LIST FOR TM SERIES METERS Part Number Description 116000-1 Calibration container, Large (5 gallon) 901002-52 Seal 113435-10 Conditioned Signal Module (GEN 2) 125060-10 Pulse Access/External Power/Scaled Module (GEN 2) 125100-10 4-20mA Module PARTS & SERVICE For warranty consideration, parts, or other service information, please contact your local distributor. - Page 11 NOTES...
- Page 12 FLOMEC® TWO-YEAR LIMITED WARRANTY Great Plains Industries, Inc. 5252 E. 36 Street North, Wichita, KS USA 67220-3205, hereby provides a limited warranty against defects in material and workmanship on all products manufactured by Great Plains Industries, Inc. This product includes a 2 year warranty.
