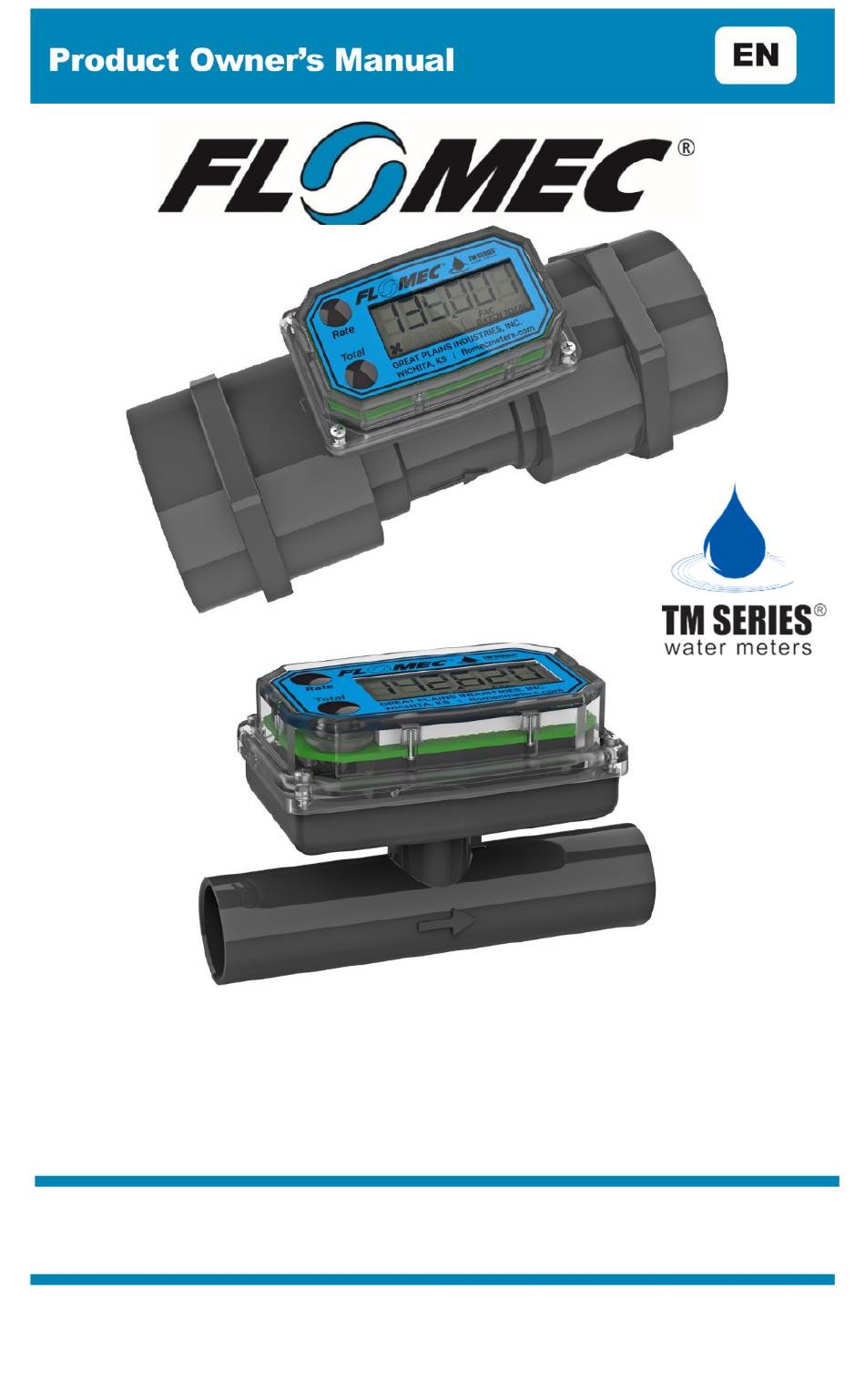

® TM Series Electronic Water Flowmeters 1/2 INCH - 2 INCH METER SIZES [TM05XXXXXX - TM20XXXXXX MODELS] 09/2023 920786-02 Rev. H...
Page 2
Please save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Please refer to back cover for information regarding this product’s warranty and other important information.
DO NOT use to meter fuel or incompatible chemicals. • TM Series meters are very sensitive to electric noise if operated within 1 to • 2 inches of some electric motors or other sources of electronic noise. This meter is not legal for trade applications.
GENERAL SAFETY INSTRUCTIONS IMPORTANT: It is your responsibility to: Ensure that all equipment operators have access to adequate • instructions concerning safe operating and maintenance procedures. Compatibility of this product’s material and the process fluid and/or environment should be considered prior to putting into service.
SPECIFICATIONS TM05 TM07 TM10 TM15 TM20 1/2 INCH 3/4 INCH 1 INCH 1-1/2 INCH 2 INCH Type Turbine Flowmeter Unit of Gallon or Litre Measure 1-10 GPM 2-20 GPM 5-50 GPM 10-100 GPM 20-200 GPM Flow Range 3.8-38 L/min 7.6-76 L/min 19-190 L/min 38-380 L/min 76-760 L/min...
Page 7
SPECIFICATIONS (continued) Dimensions TM Meter Length (A) Height (B) Width (C) Size & Fitting 4.3 in. 2.5 in. 2.1 in. TM05S - Spigot (109 mm) (63 mm) (53 mm) 6.0 in. 2.7 in. 2.1 in. TM05N - NPT (152 mm) (68 mm) (53 mm) 4.4 in.
APPROVAL RATINGS IP65 WEEE DIRECTIVE ROHS COMPLIANT (2011/65/EU) This product is in compliance with the RoHS Directive of the European Parliament and of the Council on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
INSTALLATION TM Series meters are available with either a computer for local electronic display, or three versions of output modules (see PARTS section of this manual) to provide a digital signal to customer interfacing equipment. TM Series meters with computer display ship pre-configured from the factory in either gallons or litres calibration.
If not, refer to the Q9 Owner’s Manual (Non-Agency) Field Calibration Section for further instructions (see below). NOTE: Make sure you meet the meter’s minimum flowrate requirements: TM Series Meter Minimum Flowrate TM05 - 1/2 inch 1 GPM (3.8 L/min) TM07 - 3/4 inch 2 GPM (7.5 L/min)
MAINTENANCE NOTE: Proper handling and care will extend the life and service of the meter. TURBINE ROTOR The meter is virtually maintenance-free. However, it is important the rotor moves freely. Keep the meter clean and free of contaminants. If the rotor does not turn freely, apply a penetrating lubricant on the rotor, shaft and bearings. Remove any debris or deposits from the rotor using a soft brush or small probe.
PARTS / ACCESSORIES FOR TM SERIES METERS PART NUMBER DESCRIPTION 901002-52 Seal 113435-10 Conditioned Signal Module (GEN 2) 125060-10 Pulse Access/External Power/Scaled Module (GEN 2) 125100-10 4-20mA Module SERVICE For warranty consideration, parts, or other service information, please contact your local distributor.
To make a claim against this warranty, or for technical assistance or repair, contact your FLOMEC distributor or contact FLOMEC at one of the locations below. In North or South America contact Outside North or South America contact Great Plains Industries, Inc.
