Graf AquaControl+ User Information page 2

1: LED for power supply display
2: Display
3: LED for drinking water operation
4: LED for faults and malfunction
5: Operating buttons
6: Lower cover of the System Control
7: Main connection cable with coupling for data lead and
8: Alarm indicator contact and valve connection for filter cleaning the rainwater filter
9: Valve connection with power coupling
10: The mains circuit breaker of the system controls are under this cover.
11: Mains power supply cable and pump connection with power coupling

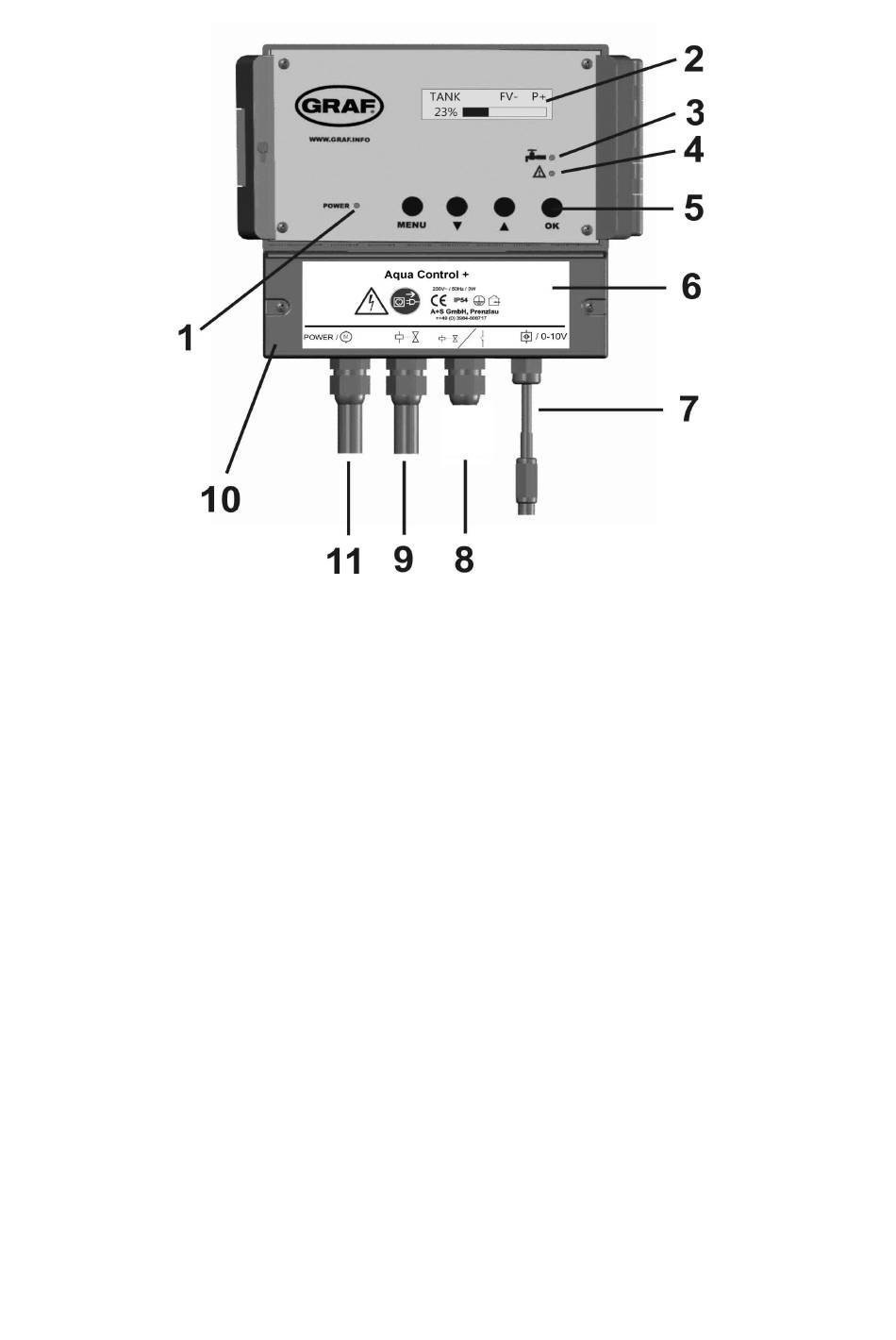

Picture 1: View of equipment
analogue outlet (0-10V)
2
