Summary of Contents for Pyxis ST-765SS-SO3

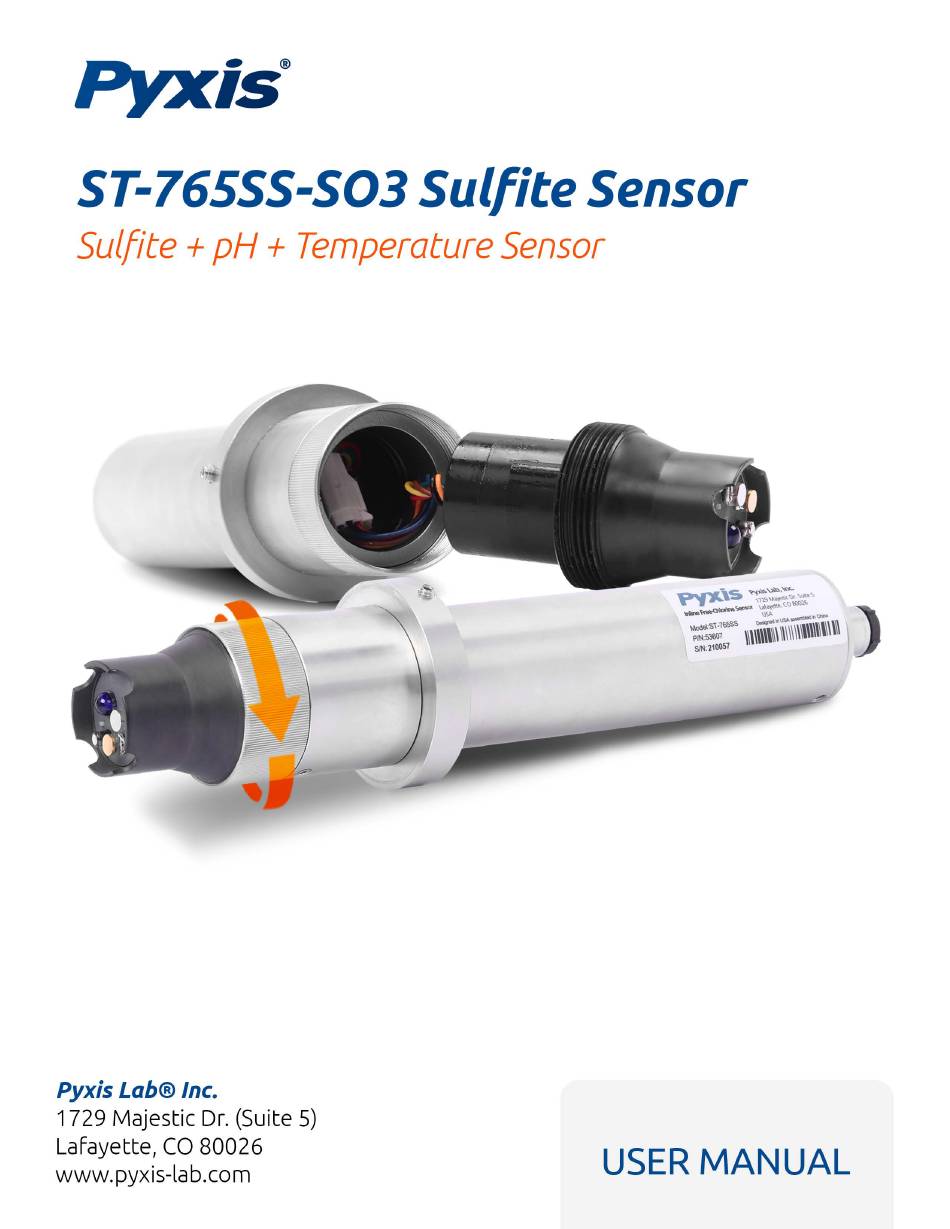

- Page 1 V1.05...
-
Page 2: Table Of Contents
Table of Contents 1. Introducing the Pyxis ST-765SS-SO3 Sensor ..............3 Specifications ......................4 Unpacking the Pyxis ST-765SS ................... 4 Standard Accessories ....................5 Optional Accessories ....................5 2. Dimension & Installation ....................6 3. Quick 4-20mA Start Up....................9 4. - Page 3 Pyxis. The Pyxis warranty term for the EH-765 (electrode reference head) installed on the ST-765SS Series sensor body is six (6) months from original shipment from Pyxis. In no event shall the standard limited warranty coverage extend beyond this timeline from original shipment date.
-
Page 4: Introducing The Pyxis St-765Ss-So3 Sensor
2-years. The flat front-end design of the ST-765SS-SO3 makes this platform less prone to contamination or fouling and is easy to clean. The ST-765SS-SO3 sensor body is composed of 304 stainless steel and is well suited for aggressive environments. -
Page 5: Specifications
Remove the instrument and accessories from the shipping container and inspect each item for any damage that may have occurred during shipping. Verify that all items listed on the packing slip are included. If any items are missing or damaged, please contact Pyxis Customer Service at service@pyxis-lab.com ST-765SS-SO3 Sensor Manual service@pyxis-lab.com... -
Page 6: Standard Accessories
The full instrument manual is available for download at Support Documents - Pyxis Lab, Inc. (pyxis-lab.com) Optional Accessories The following optional accessories can be purchased separately via your preferred Pyxis Lab distributor or Pyxis Customer Service at order@pyxis-lab.com. Accessory Name... -
Page 7: Dimension & Installation
Dimension & Installation The ST-765SS-SO3 should be installed in the ST-007 stainless steel inline sensor tee assembly for optimum accuracy. Sulfite functions an oxygen and chlorine scavenger are highly susceptible to rapid degradation. Stainless steel is recommended to ensure minimal sulfite depletion between injection of treatment and the sensor. - Page 8 Pyxis inline sensors with fully integrated calibration, scaling and measurement protocol. When any Pyxis Lab sensor is connected to the UC-80 in RS-485 Modbus, the UC-80 automatically recognizes the sensor and configuration for immediate data display, data logging and communication.
- Page 9 2 x 4-20 mA / RS-485 Modbus - RTU / Modbus TCP Input RS-485 Modbus - RTU 1 x USB host, for data downloading and screen upgrade Internet RJ-45 socket, Modbus-TCP – For Pyxis CloudLink Panel Operational Temperature 40 – 113 F (4-45 Storage Temperature Instrument: -4 –...
-
Page 10: Quick 4-20Ma Start Up
Follow the wiring table below to connect the ST-765SS series sensor to a controller. *NOTE* The ST- 765SS-SO3 sensor comes preset at 0-5ppm range of measurement and output signal from the Pyxis factory. This may be altered to a maximum of 100ppm using the 4-20mA SPAN ADJUST feature with the uPyxis APP. -
Page 11: Calibration And Diagnosis
Calibration and Diagnosis by uPyxis Mobile App Connect and power the ST-765SS sensor using the MA-CR Pyxis Bluetooth adapter (P/N: MA-CR) as shown in the following connection diagram. The power should be sourced from a 24 VDC power terminal of a controller. - Page 12 Tap the discovered ST-765SS sensor to connect to the sensor. The uPyxis app can identify the sensor type if multiple Pyxis sensors are discovered in the scan. As shown in Figure 6, in the calibration page of uPyxis after connected to the sensor via the MA-CR Bluetooth adapter the current Sulfite, pH and temperature values will be displayed.
-
Page 13: Sulfite Calibration
ST-765SS-SO3 sensor, the user can perform a single-point according to the requirements of the application. Calibration of the ST-765SS-SO3 sensor for Sulfite should be done with the sensor inline exposed to active flowing sample water. Use titration method, colorimeter or fluorometer (i.e.. Pyxis SP-800 / SP-910 or Hach DR1300) to test the active (flowing) water sample in the flow tee assembly. -
Page 14: Ph Calibration
Measure for 1 minute and wait for the measurement result to stabilize before performing calibration, the high pH calibration standard value range acceptable for this step is 8.00-13.00 pH. Figure 8 Figure 9 Enter Low-pH Concentration for Calibration Enter High-pH Concentration for Calibration ST-765SS-SO3 Sensor Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 15: 4-20Ma Span
4.1.3 4-20mA Span The 4–20mA output of the ST-765SS-SO3 sensor is scaled as: • Sulfite: – 4 mA = 0 ppm – 20 mA = 5 ppm Tap 4-20mA SPAN to change the Sulfite value corresponding to the 20mA output to a value below 100ppm as seen in Figure 9. -
Page 16: Calibration And Diagnosis By Upyxis Desktop App
Once the MA-CR screen is powered Press until you arrive at (USB to RS485) screen. b. Press the Button. c. Follow Prompts below to Enable USB feature. Once enabled, you may connect to uPyxis. ST-765SS-SO3 Sensor Manual service@pyxis-lab.com | +1 (866) 203-8397... - Page 17 Alternatively, you may use the Windows Device Manager to identify the Comm Port that the Pyxis USB adapter is using. After the connection is established, the ST-765SS sensor series number and Ozone reading will be displayed on the left of the information page Figure 15.
- Page 18 Figure 14 - Select a Comm port Figure 15 - Connected to a ST-765SS sensor and information page Figure 16 - Calibration Page ST-765SS-SO3 Sensor Manual service@pyxis-lab.com | +1 (866) 203-8397...
-
Page 19: Sulfite Calibration
Calibration of the ST-765SS-SO3 sensor for Sulfite should be done with the sensor inline exposed to active flowing sample water. Use a portable or laboratory colorimeter (i.e.. Pyxis SP-200 / SP-800 / SP-910 or similar) to test the active (flowing) water sample in the flow tee assembly. - Page 20 Figure 18 - pH Low Calibration Figure 19 - pH 7 Calibration Figure 20 - pH High Calibration ST-765SS-SO3 Sensor Manual service@pyxis-lab.com | +1 (866) 203-8397...
-
Page 21: 4-20Ma Span
4.2.3 4-20mA Span The 4–20mA output of the ST-765SS-SO3 sensor is scaled as: • Sulfite: – 4 mA = 0 ppm – 20 mA =5 ppm Tap 4-20mA SPAN to change the Sulfite value corresponding to the 20mA output to a value below 100ppm as seen in Figure 21. -
Page 22: Calibration On The Controller
With the default sensor settings, the controller should be set to convert 4 mA to 0 ppm and 20 mA to 5.00 ppm for ST-765SS-SO3. Calibration of the ST-765SS-SO3 sensor for Sulfite should be done with the sensor inline exposed to active flowing sample water. Use titration method, colorimeter or fluorometer (i.e.. Pyxis SP-800 / SP-910 or Hach DR-1300) to test the active (flowing) water sample in the flow tee assembly of the IK-765SS-SO3 panel. -
Page 23: Sensor Cleaning And Maintenance
Q-tips. If the surface is not entirely clean, continue to soak the sensor for an additional time until clean. Rinse the sensor with distilled water. Pyxis Lab Inline Sensor Cleaning Solution can be purchased at our online Estore/Catalog at https://www.pyxis-... -
Page 24: Replacing Ph And Deoxidizer Electrode Head
Order a replacement electrode head EH-765 (P/N 53061) from Pyxis and follow instructions as below. Order a replacement electrode head EH-765 (P/N 53061) from Pyxis and follow instructions as below. Turn off the sensor if it is powered on. -
Page 25: Contact Us
9. Contact Us Pyxis Lab, Inc 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com Phone: +1 (866) 203-8397 Email: service@pyxis-lab.com ST-765SS-SO3 Sensor Manual service@pyxis-lab.com | +1 (866) 203-8397...
