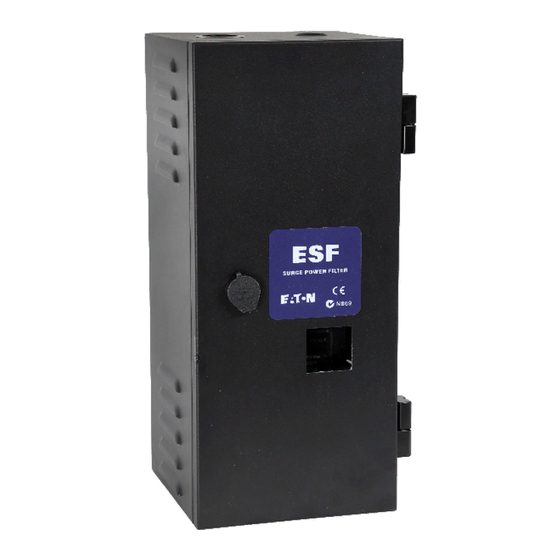

E S F S U R G E P O W E R F I L T E R
Dear Installer,
To ensure you get the maximum benefit from this product, we ask that you carefully
follow this installation specification. This instruction forms part of your installation
record. Please read it thoroughly prior to commencing work and ensure that it is
retained afterward by the equipment owner.
Prior to commencing installation, please read the 'Application Statement' and
complete the supplied checklists. Not completing the checklists may result in
unpredictable performance and/or equipment damage. Eaton shall not be responsible
for any issue arising as a result of the installation not being carried out according to
this document.
If you are unsure about any aspect of installing this product, or require clarification of
any issue, please contact your local Eaton distributor or office.
PREPARATION FOR INSTALLATION
Prior to installation, please read the following application statement then follow the checklist after to make
sure you are ready to commence the job.
Application Statement:
"This Surge Protective Device (SPD) is designed to provide electrical protection to
sites using a conventional, low voltage supply with a grounded neutral. For proper
performance, it must be installed according to the supplied instructions, as well as any
applicable local standards and laws. This unit is intended to reduce the risk of damage
resulting from lightning strikes, power network transients and other associated
phenomena. No product can completely eliminate risk and it is essential that
connected loads also be compliant to the standards applicable to ensure proper
coordination with this unit. Only suitably-qualified personnel shall install this unit."
Please contact your local Eaton distributor or office if you do not agree with the "Application Statement",
otherwise please proceed to the checklist over page.
Eaton Industries Pty Ltd
10 Kent Road, Mascot, NSW 2020, Australia
I N S T A L L A T I O N G U I D E
INSTALLATION SPECIFICATION
August 2010
Page 1 of 13
DOCUMENT# 510091
