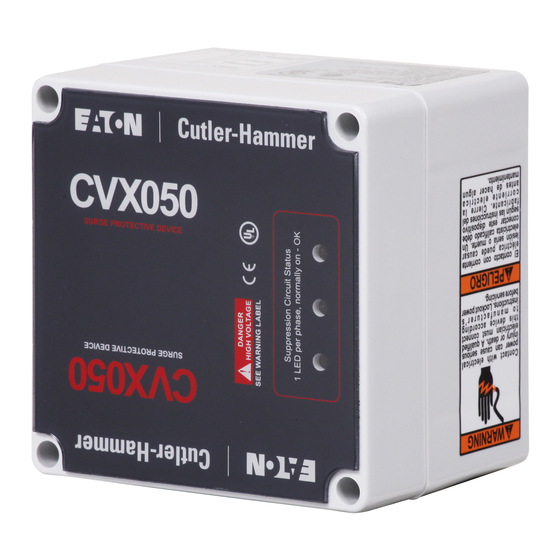

Installation and Operation Effective January 2014 1.0 Introduction 1.2 Catalog Numbering System This manual describes how to install a CVX050 or CVX100 Surge CVX 050 - 480Y Protective Device (SPD) in parallel (shunt) across the electrical sup- Per Phase Peak...
CVX050/100 Surge Protective Device Instruction Manual IM01005016E Installation and Operation Effective January 2014 2.1.1 Conduit Installation Mounting Holes Mount the SPD directly to the electrical panel using a 3/4” chase Under Cover (4) nipple as shown in Figure 1. When mounting the SPD outdoors, use weatherproof conduit and fittings to maintain the enclosure’s NEMA 4X rating.
Page 4
CVX050/100 Surge Protective Device Instruction Manual IM01005016E Installation and Operation Effective January 2014 2.2 Wiring, for AC units PHASE A High Leg PHASE B (High Leg) IMPORTANT (240H) PHASE C • BE SURE TO FOLLOW ALL NATIONAL, STATE, AND LOCAL ELECTRICAL CODES WHEN MAKING WIRING CONNECTIONS.
Page 5
CVX050/100 Surge Protective Device Instruction Manual IM01005016E Installation and Operation Effective January 2014 Before Installation as Secondary Surge Arrestore: Step A: Follow 2.4 Wiring, for DC Units. Step A. Power Direct Current (DC) 48V, 125V Supply Step B: No circuit interrupt device is required.
Operating Temperature –13 to 140 °F (–25 to 60 °C) The CVX050/100 is not repairable and contains no user serviceable ≈2.0 lbs (1.0 kg) Weight parts. If the unit fails, as shown by at least one of the LEDs turning...
THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY prepaid. ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss...
