Summary of Contents for Pace ARM-EVAC 50
- Page 1 ARM-EVAC ® Benchtop Plenum/Arm Extractor MANUAL NO. 8881-0980 REV. B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ……………………………………………………………………. Introduction ……………………………………………………………… Specification. ……………………………………………………………. Features …………………………………………………………………. Set-Up……………………………………………………………………. Operation………………………………………………………………… Maintenance …………………………………………………………….. Troubleshooting………………………………………………………….. Filter Replacement & Spare Parts……………………………………… Warranty…………………………………………………………………… Equipment Registration Form ………………………………………….. WARNING Read the safety & set-up information sections in this manual thoroughly before installing and using your fume extraction system. -
Page 3: Safety
To insure continued effective performance, the following guidelines must be followed. Dangers PACE Fume Extractors are not intended to be used as a substitute for devices such as personal protective respirators which are designed to remove poorly adsorbed substances including carbon monoxide, methane, hydrogen, acetylene and other gases. -
Page 4: Introduction
In addition to offering two types of fume collection from a single unit, the Arm-Evac 50 also offers four levels of Fume Filtration, 1) A General Purpose Filter for normal Soldering applications, 2) A... -
Page 5: Features

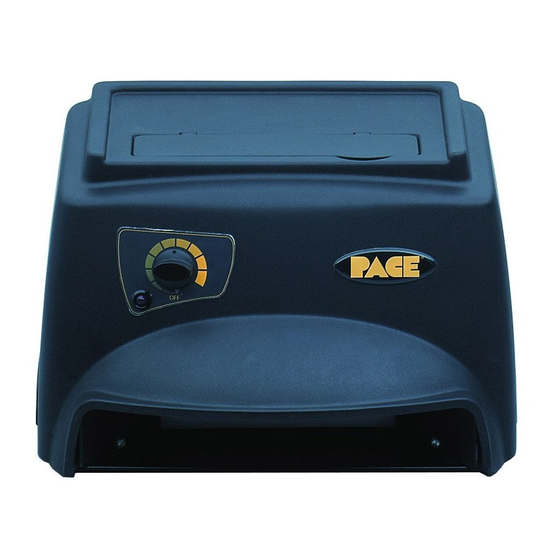

Features Arm-Evac 50 Benchtop Plenum/Arm Extractor Airflow Control Switch Filter Condition Monitoring LED Filter Access Cover Power receptacle / On-Off Switch Utility Platform Arms & adaptor (optional) Fig 1: Arm-Evac 50 Benchtop Plenum/Arm Extractor... -
Page 6: Set-Up
Do not create any sharp bends in the flexible Extraction Arms (optional), as this will reduce airflow. The Arm-Evac 50 will plug into a standard 110v or 230v electrical outlet. A line cord is provided with each system. The Arm-Evac 50 is fitted with Filter Condition Monitoring (LED). As the system filter(s) collect particulates, the LED will illuminate in the following sequence: During normal operation, the LED will illuminate Green. -
Page 7: Operation
The fuse is located in a sliding tray at the rear of the unit, just below the power receptacle. Each Arm-Evac is supplied with one replacement fuse, also located in the sliding tray. Replacement fuses are available for the Arm-Evac 50 systems in packages of 5 fuses. 5a fuse, part number 8884-9965-P5 Fan Assy: The Arm-Evac 50 is fitted with a maintenance free, brush-less fan assembly, which does not require routine maintenance. -
Page 8: Troubleshooting
Arm correctly attachment connection. If the unit does not work after checking the above, please contact PACE, or your Authorized PACE Distributor if outside U.S. Filter Replacement & Spare Parts PACE Fume Extraction Systems are equipped with filters designed to capture particulates and noxious gases and odors that are present in the air being filtered. -
Page 9: Warranty
Warranty service may be obtained by contacting the appropriate PACE Company or local Authorized PACE distributor as set forth below to determine if return of any item is required, or if repairs can be made by the user in the field. -
Page 10: Equipment Registration Form
To register your purchase with PACE, fill in the form below and mail or FAX to the applicable PACE address listed above. EQUIPMENT WARRANTY REGISTRATION CARD Date Model No. Serial No. Of Receipt Purchased from Company Name Mailing Address Telephone number with area code...
