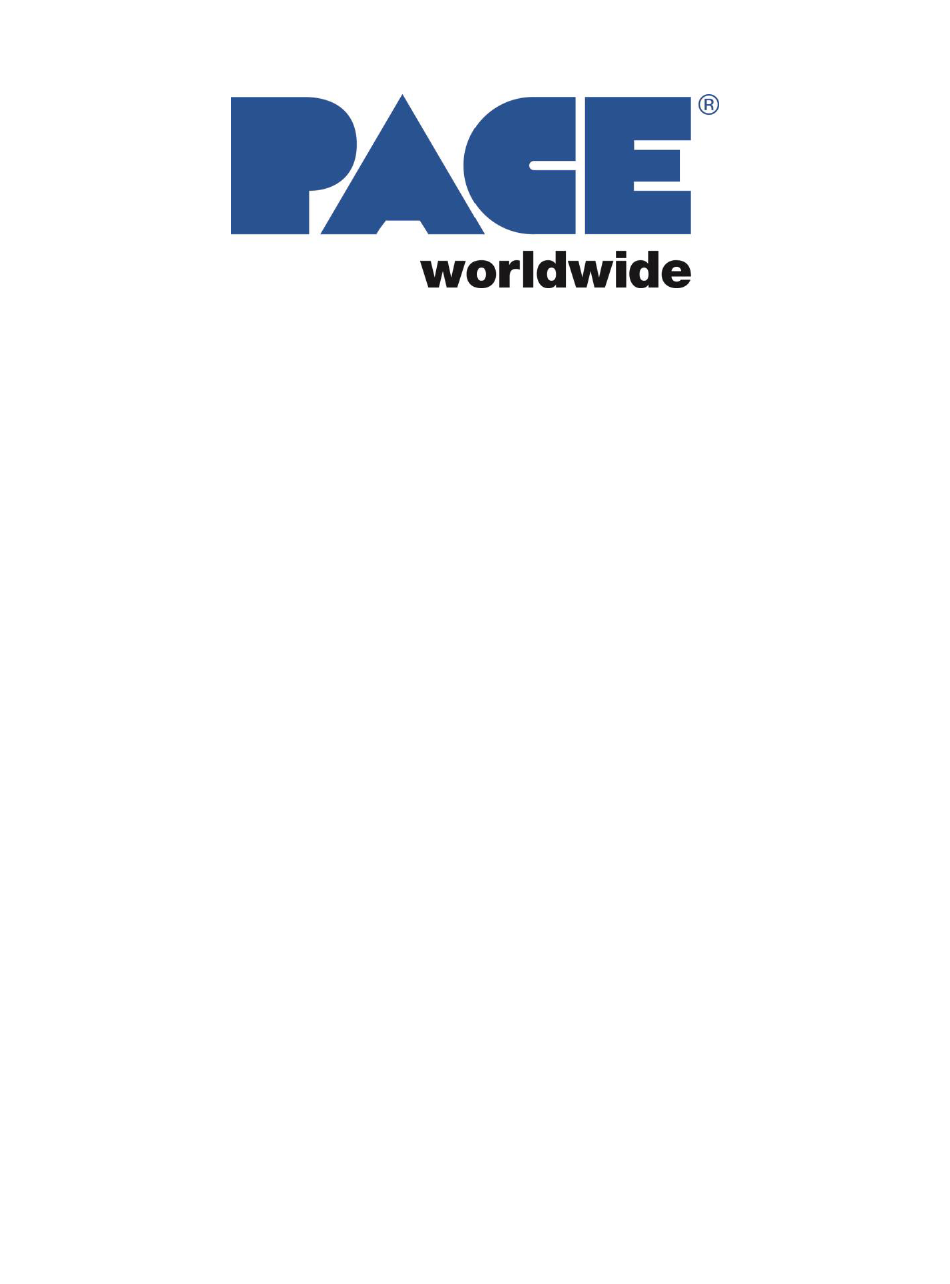

- Page 1 ® ARM-EVAC Central Filter Unit MANUAL NO. 8881-0990 REV. C...
-
Page 2: Table Of Contents
Filter Replacement & Spare Parts ......................5 Warranty ..............................7 WARNING Read the safety & setup information sections in this manual before installing and using your fume extraction system. ©2012 PACE Inc., Vass, North Carolina, All Rights Reserved Page 1... -
Page 3: Safety
To insure continued effective performance, the following guidelines must be followed. Dangers 1. PACE Fume Extractors are not intended to be used as a substitute for devices such as personal protective respirators which are designed to remove poorly adsorbed substances including carbon monoxide, methane, hydrogen, acetylene and other gases. -
Page 4: Introduction
5) An Extended Life Filter and High Capacity Pre-Filter for longer maintenance intervals during normal soldering operations. The Arm-Evac 105 Fume Extractor uses specially designed extraction accessories that can be conveniently mounted on any workbench or tabletop. The Arm-Evac 105 can be used to extract fumes from one or two different work benches/collection points. Specifications... -
Page 5: Features

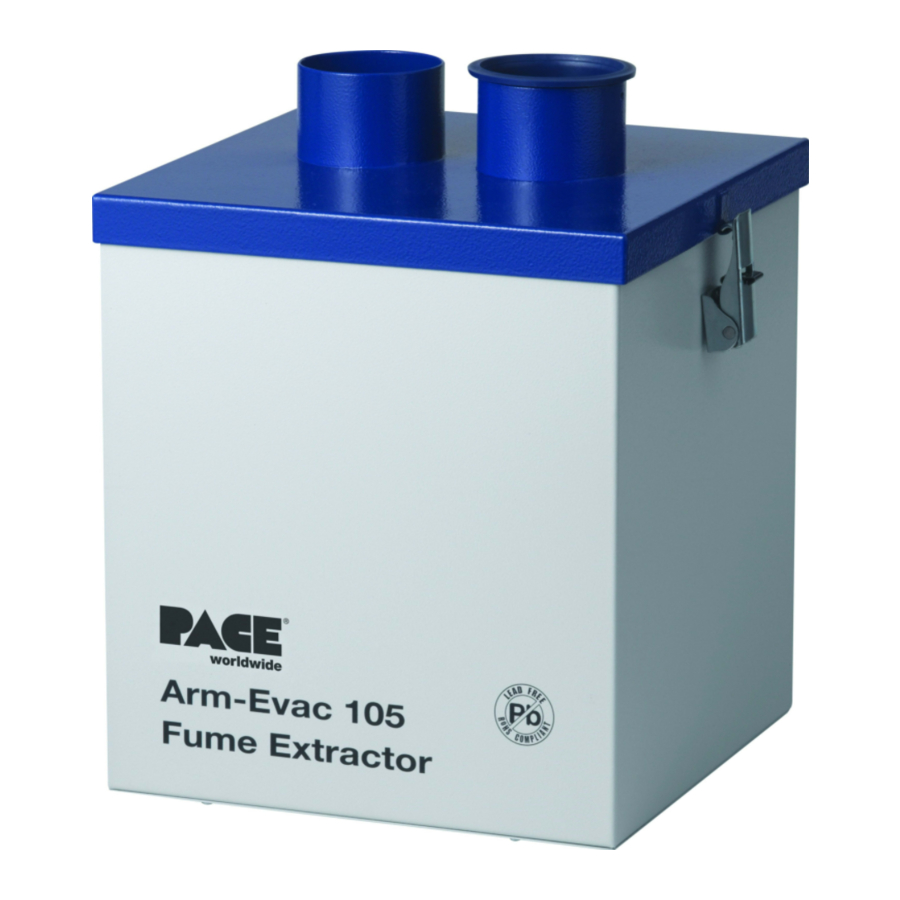

Fig.1 Arm-Evac 105 Central Filter Unit Set up The Arm-Evac 105 has been designed for ease of use and maximum installation flexibility in mind. The major considerations for placement of the unit are: Exhaust Port: This is located on the right side of the unit. When positioning the unit, make sure that the exhaust port is not blocked or that airflow from the exhaust port is not restricted in any way. -
Page 6: Operation
Arm attachment not installed correctly. Make sure all accessories are fully seated. If the unit does not work after checking the above, please contact PACE, or your Authorized PACE Distributor if outside U.S. ©2012 PACE Inc., Vass, North Carolina, All Rights Reserved... -
Page 7: Filter Replacement & Spare Parts
Do not attempt to clean any PACE fume extraction filters for reuse. Cleaning the filters will severely damage the filter media and, consequently, the filter’s performance. This will result in unfiltered, contaminated air being returned to the working environment. - Page 8 Prototyping Operations, Grinding capture. Applications. Replacement Part Numbers Part Part Number Fuse 115 Volts 1159-0280-02-P5 Fuse 230 Volts 1159-0280-01-P5 Motor Fan Assembly 115 Volts 6000-0410-P1 Motor Fan Assembly 230 Volts 6000-0409-P1 ©2012 PACE Inc., Vass, North Carolina, All Rights Reserved Page 6...
-
Page 9: Warranty
Warranty PACE warrants that this equipment will be free of defects in materials and workmanship for a period of one (1) year from the date of receipt by the first user. This warranty does not cover repair of replacement required as a result of misuse, mishandling or improper storage.
