- Page 1 ® ARM-EVAC Benchtop Plenum/Arm Extractor MANUAL NO. 8881-0980 REV. C ©2013 PACE Inc., Vass, North Carolina. All rights reserved. www.paceworldwide.com...
-
Page 2: Table Of Contents
Troubleshooting ..............................6 Filter Replacement & Spare Parts ......................... 6 Warranty ................................7 WARNING Read the safety & setup information sections in this manual before installing and using your fume extraction system. ©2013 PACE Inc., Vass, North Carolina. All rights reserved. www.paceworldwide.com... -
Page 3: Safety
To insure continued effective performance, the following guidelines must be followed. Dangers 1. PACE Fume Extractors are not intended to be used as a substitute for devices such as personal protective respirators which are designed to remove poorly adsorbed substances including carbon monoxide, methane, hydrogen, acetylene and other gases. -
Page 4: Introduction
Static-Safe system, filtered and returned to the work environment as clean air. In addition to offering two types of fume collection from a single unit, the Arm-Evac 50 offers two choices of filtration, 1) A General Purpose Filter for normal Soldering applications. 2) A Clean room Filter for use in clean room environments. -
Page 5: Features

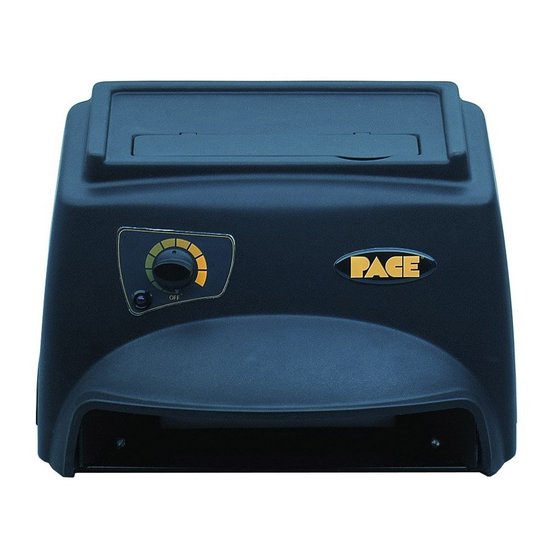

Arm-Evac 50 Benchtop Plenum/Arm Extractor Airflow Control Switch Filter Condition Monitoring LED Filter Access Cover Power receptacle / On-Off Switch Utility Platform Arms & adaptor (optional) Fig 1: Arm-Evac 50 Benchtop Plenum/Arm Extractor ©2013 PACE Inc., Vass, North Carolina. All rights reserved. www.paceworldwide.com... -
Page 6: Set Up
Proximity to work area: The unit should be placed as close to the work area as possible. Do not create any sharp bends in the flexible Extraction Arms (optional), as this will reduce airflow. The Arm-Evac 50 will plug into a standard 110v or 230v electrical outlet. A line cord is provided with each system. -
Page 7: Maintenance
Housing: The housing of the Arm-Evac 50 is manufactured from a static safe ABS material, which may collect a build up particulates and flux fume residue. We recommend the use of a mild, plastic safe cleaner with a soft cloth to clean the unit, should it be required. -
Page 8: Troubleshooting
Check & change filter(s) Arm attachment not installed correctly. Make sure all accessories are fully seated. If the unit does not work after checking the above, please contact PACE, or your authorized PACE distributor. Filter Replacement & Spare Parts PACE f ume extraction s ystems are equipped with filters designed to capture particulates and noxious gases and odors. -
Page 9: Warranty
Defective products may not be returned to PACE without a Service Authorization (“SA”) Number. Any warranty or other claim with respect to the products must be made in writing delivered to PACE (or local Authorized PACE distributor for Buyers outside the USA and the United Kingdom) within a reasonable time of the expiration date of this warranty with sufficient evidence of purchase and date of receipt, otherwise user’s rights under this warranty shall be deemed waived.
