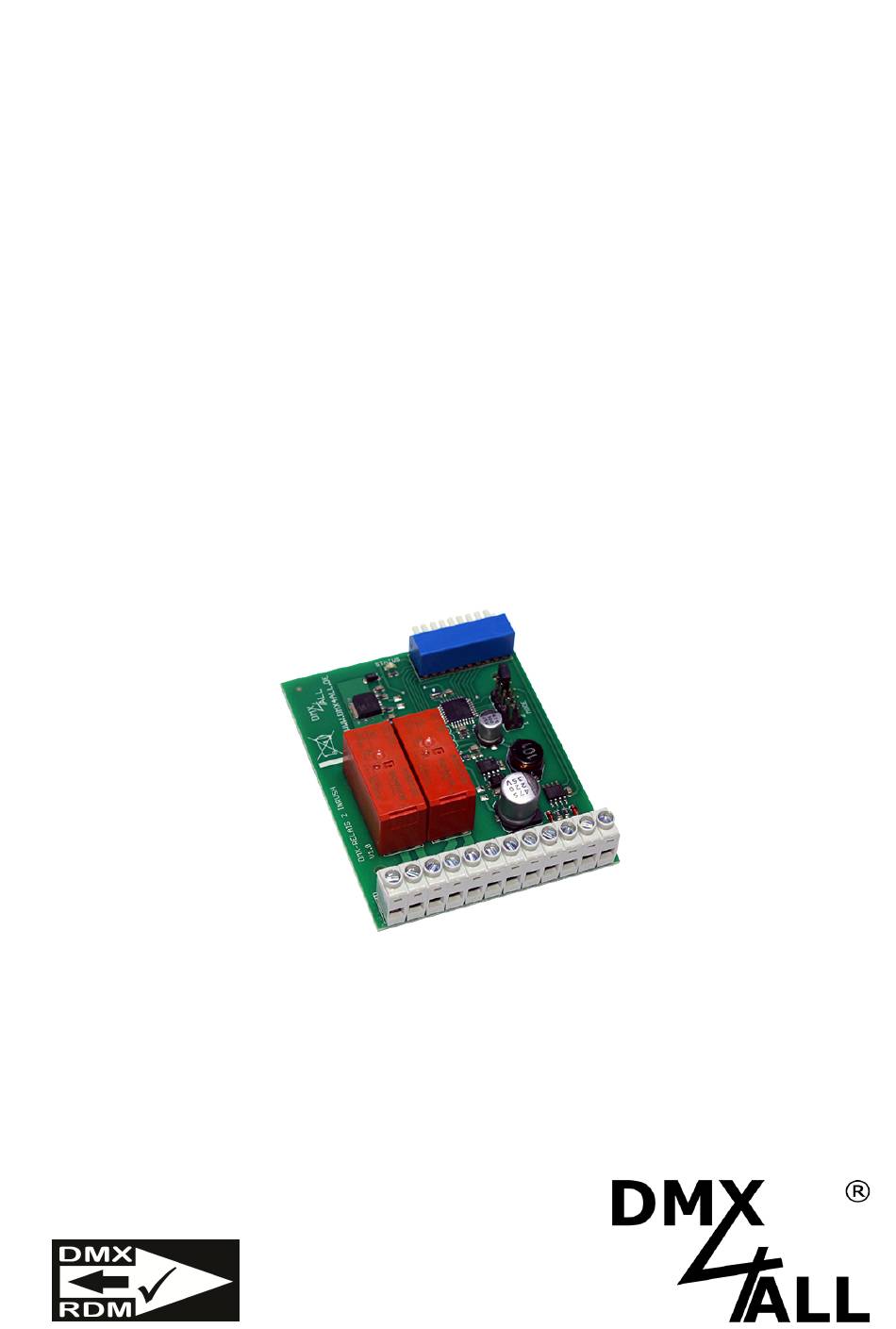

- Page 1 DMX-RELAIS 2 INRUSH User manual...
- Page 2 The INRUSH version is suitable to control direct or alternating voltage. For voltages from 12V up to 24V The DMX-Relais 2 INRUSH works with supply voltages from 12V up to 24V DC. DMX FAIL-Function An adjustable DMX FAIL function offers the option to hold the current state (HOLD) or to adopt a predefined value if the DMX signal fails.
-
Page 3: Data Sheet
DMX-RELAIS 2 INRUSH Data sheet Power supply: 12-24V DC (150mA@12V / 100mA@24V) Protocol: DMX512 DMX-Channels: 1 or 2 channels (depend on operation mode) DMX-FAIL: HOLD / 0-100% Operation modes: Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second FogControl Output: 2 potential free switching contacts NO each max. - Page 4 DMX-RELAIS 2 INRUSH Connection Switching contacts each max. 8A (165A@20ms peak inrush current)
- Page 5 DMX-RELAIS 2 INRUSH LED-Display-Codes The integrated LED is a multifunctional display. During the normal operation the LED lights continuously. In this case the device is working. If the LED is permanently dark, there is no DMX512-signal at the entry. Furthermore, the events are signaled via the LED. In this case the LED lights up in short pitches and then is missing for a longer time.
- Page 6 DMX-RELAIS 2 INRUSH DMX-FAIL Function The DMX-RELAIS 2 INRUSH has a DMX-FAIL-Function which stores the last value in the case of a DMX signal loss and left the relays unchanged in its conditions. If the HOLD-Function is not activated, all relays will be shut down by a loss DMX- Signal.
-
Page 7: Select Operating Mode
DMX-RELAIS 2 INRUSH Select operating mode Select operating mode Hysteresis 127/128 In this operating mode, both relays switch independently of each other each via one In this operating mode, both relays switch independently of each other each via one In this operating mode, both relays switch independently of each other each via one DMX channel. - Page 8 DMX-RELAIS 2 INRUSH Hysteresis 100/150 In this operating mode, both relays switch independently of each other each via one In this operating mode, both relays switch independently of each other each via one In this operating mode, both relays switch independently of each other each via one DMX channel.
- Page 9 DMX-RELAIS 2 INRUSH Monostable 1Second (Impulse) (Impulse) In this operating mode, both relays switch independently of each other each via one In this operating mode, both relays switch independently of each other each via one In this operating mode, both relays switch independently of each other each via one DMX channel.
- Page 10 DMX-RELAIS 2 INRUSH (from hardware V1.3 with firm ware V1.3 or higher) RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings can be occur remotely via RDM command due to the uniquely assigned UID. An direct access to the device is not necessary.
- Page 11 DMX-RELAIS 2 INRUSH Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number. Send: PDL=0 Receive: PDL=21 (21 Byte ASCII-Text)
-
Page 12: Factory Reset
Factory Reset Before running the Factory Reset, read all steps carefully. To reset the DMX-RELAIS 2 INRUSH to delivery state, proceed as follows: Turn off device (turn off power supply !) Set DIP switch 1 up to 10 to ON Turn on the device (turn on power supply) The LED lights up 20x during ca. - Page 13 DMX-RELAIS 2 INRUSH Dimensions All details in mm...
- Page 14 DMX-RELAIS 2 INRUSH Accessory Top-hat rail housing 700 Power supply 12V / 20W...
- Page 15 DMX-RELAIS 2 INRUSH CE-Conformity This This assembly (board) is controlled by a microprocessor and is controlled by a microprocessor and uses high frequency. In order to maintain the properties o uses high frequency. In order to maintain the properties o uses high frequency.
- Page 16 DMX-RELAIS 2 INRUSH Risk-Notes You purchased a technical product. Conformable to the best You purchased a technical product. Conformable to the best You purchased a technical product. Conformable to the best available technology the following risks should not excluded: available technology the following risks should not excluded:...
- Page 17 Germany Last changes: 16.06.2020 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
