Summary of Contents for DMX4ALL PixxRangeExtender 12V

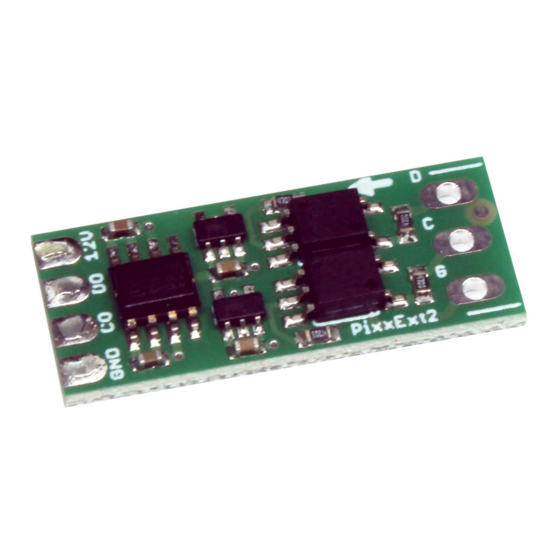

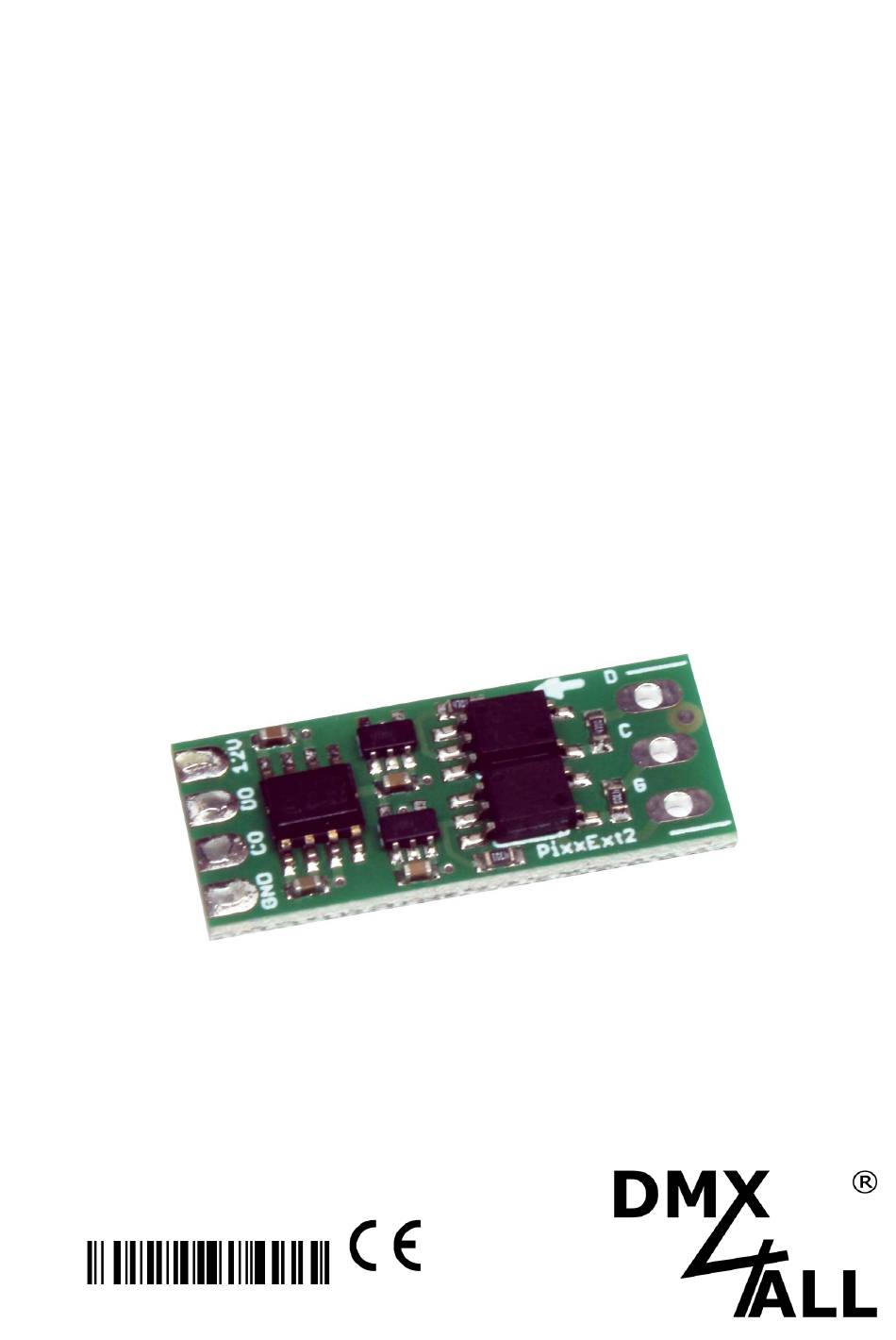

- Page 1 PixxRangeExtender 12V Art.-Nr.: 90-0892 3420...
- Page 2 The PixxRangeExtender 12V is an optimal tool to bridge longer distances by using digital LED-Stripes. Therefore, the PixxRangeExtender 12V is to connect in front to the signal input of the digital LED-Stripe. Digital LED-Stripes with separated DATA- and CLOCK-Signal as well as digital LED- Stripes with only one DATA-Signal can be combined with the PixxRangeExtender 12V.
- Page 3 PixxRangeExtender 12V Connection Connection between Controller and digital LED-Stripe PixxRangeExtender 12V Digital LED-Stripe Controller Using the LED-Stripe LC8808: D1 must be connected to GND PixxRangeExtender 12V Digital LED-Stripe Controller Using the LED-Stripe GS8208: D1 must be open ! For other LED stripe types, the connection is made according to the manufacturer's instructions.
- Page 4 PixxRangeExtender 12V Compatible digital LED-Stripes The PixxRangeExtender 12V is compatible with digital LED strips with only one signal line or separate signal and data line. These are for example: GS8208 LC8808...
- Page 5 PixxRangeExtender 12V...
- Page 6 PixxRangeExtender 12V CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
- Page 7 PixxRangeExtender 12V Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
- Page 8 D-44869 Bochum Germany Last changes: 08.06.2022 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
