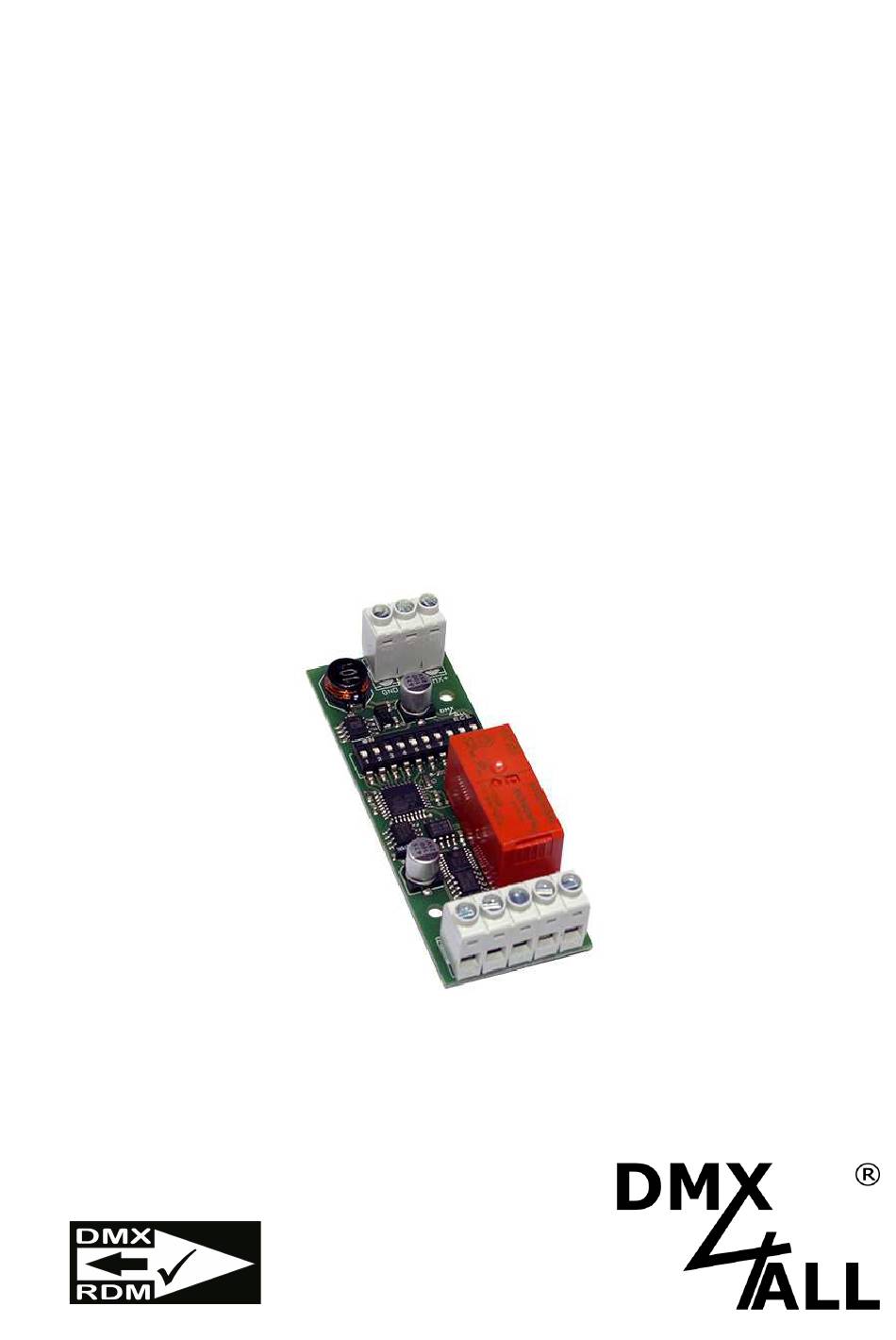

- Page 1 DMX Relais/Analog 1 User Manual...
-
Page 2: Table Of Contents
DMX Relais/Analog 1 For your own safety, please read this user manual and warnings carefully before installation. Contents Description ........................3 Data sheet ........................4 Max. DC load ......................4 Connection ......................... 5 LED-Display-Codes ....................6 DMX-Addressing ......................7 Operation mode settings .................... 8 Operation modes ...................... -
Page 3: Description
Relay & Analog 8Bit 0-10V Relay & Analog 8Bit 1-10V Relay & Analog 12Bit 0-10 Relay & Analog 12Bit 1-10V Top hat rail mounting available Suitable for the DMX Relais/Analog Interface 1 the DIN rail housing 350 is available as accessory. -
Page 4: Data Sheet
DMX Relais/Analog 1 Data sheet Power supply: 12-24V DC 100mA@12V / 70mA@24V Protocol: DMX512 DMX-Channels: 1 or 2 channels Output: 1 switch contact (normally open / NO) 165A@20ms peak switch-on current AC: each max. 8A / 250V~ DC: According to the max. DC load graph 1 analog signal 0-10V or 1-10V Operation modes: Relay + Analog 8Bit 0-10V... -
Page 5: Connection
DMX Relais/Analog 1 Connection DMX IN DMX OUT ADDRESS 12-24V POWER ANALOG OUT max. 10mA Switch contact AC: each max. 8A / 250V~ DC: According to the max. DC load graph (165A@20ms peak switch-on current) -
Page 6: Led-Display-Codes
DMX Relais/Analog 1 LED-Display-Codes The integrated green LED is a multi functional display. During the normal operation the LED lights permanently. In this case the device is working. Furthermore, the LED shows the current status. In this case the LED lights up in short pitches and then is missing for longer time. -
Page 7: Dmx-Addressing
DMX Relais/Analog 1 DMX-Addressing The start address is set via RDM or via switch 1-9. Thereby, switch 1 has the valency 2 (=1), switch 2 the valency 2 (=2) and so on, up to switch 9 with the valency 2 (=256). -
Page 8: Operation Mode Settings
DMX Relais/Analog 1 Operation mode settings The DMX Relais/Analog Interface 1 has several operation modes (MODE), which can be set per RDM or described as follows: • Turn on the device • Set switch 9 and 10 on OFF • Set switch 10 on ON •... -
Page 9: Operation Modes
DMX Relais/Analog 1 Operation modes Relay + Analog 8Bit 0-10V (Personality 1) Relay and analog output are controlled each with one DMX channel. The analog output has an 8 Bit resolution and an output voltage of 0-10V. Function Channel Value 0-127 Relay OFF 128-255... - Page 10 DMX Relais/Analog 1 Relay + Analog 12Bit 1-10V (Personality 4) Relay and analog output are controlled each with one DMX channel. The analog output has a 10 Bit resolution and an output voltage of 1-10V. Function Channel Value 0-127 Relay OFF 128-255 Relay ON 0-255...
- Page 11 DMX Relais/Analog 1 Relay & Analog 12Bit 0-10V (Personality 7) Relay and analog output are controlled with the same DMX channel. The analog output has a 10 Bit resolution and an output voltage of 0-10V. Function Channel Value 0-255 Analog output 0-10V HIGH DMX channel 1 and 2 = 0 ...
-
Page 12: Dmx-Fail Funktion
DMX Relais/Analog 1 DMX-FAIL Funktion The DMX Relais / Analog Interface 1 has a DMX-FAIL Function which stores the last value in the case of a DMX signal loss (HOLD) or left the relay unchanged with a predefined value in its conditions. The DMX-HOLD function can be activated via RDM or by switch 10 during the operation mode settings. -
Page 13: Rdm
DMX Relais/Analog 1 RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary. If the DMX start address is set via RDM, all address switches must be set to OFF ! A DMX start address set by the address switches is always prior ! This device supports the following RDM commands:... - Page 14 DMX Relais/Analog 1 Parameter ID Discovery ANSI/ Command Command Command PID: SERIAL_NUMBER 0xD400 1) Manufacturer depending RDM control commands (MSC - Manufacturer Specific Type) Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number. Send: PDL=0 Receive: PDL=21...
-
Page 15: Factory Reset
Factory Reset Before running the Factory Reset, read all steps carefully. To reset the DMX Relais/Analog Interface 1 to delivery state, proceed as follows: Turn off device (turn off power supply !) Set DIP switch 1 up to 10 to ON Turn on the device (turn on power supply) The LED lights up 20x during ca. -
Page 16: Dimensions
DMX Relais/Analog 1 Dimensions (all details in mm) -
Page 17: Accessory
DMX Relais/Analog 1 Accessory Top-hat rail mounting 350 Power supply 12V... -
Page 18: Ce-Conformity
DMX Relais/Analog 1 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. -
Page 19: Risk-Notes
DMX Relais/Analog 1 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. Initiation risk: For the installation of the board, the board must be connected and adjusted to foreign components according to the device paperwork. - Page 20 Germany Last changes: 18.04.2024 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
