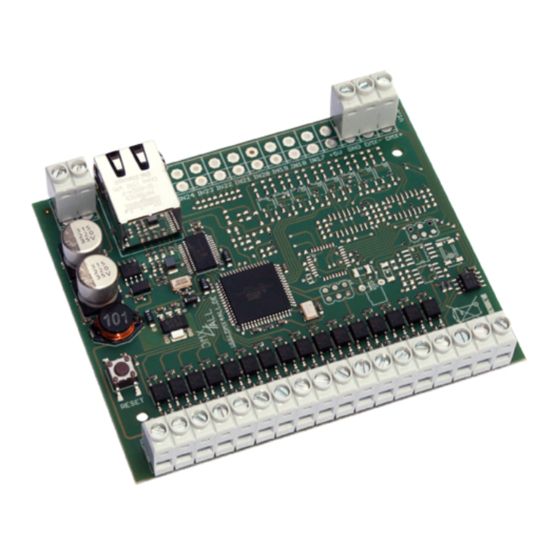

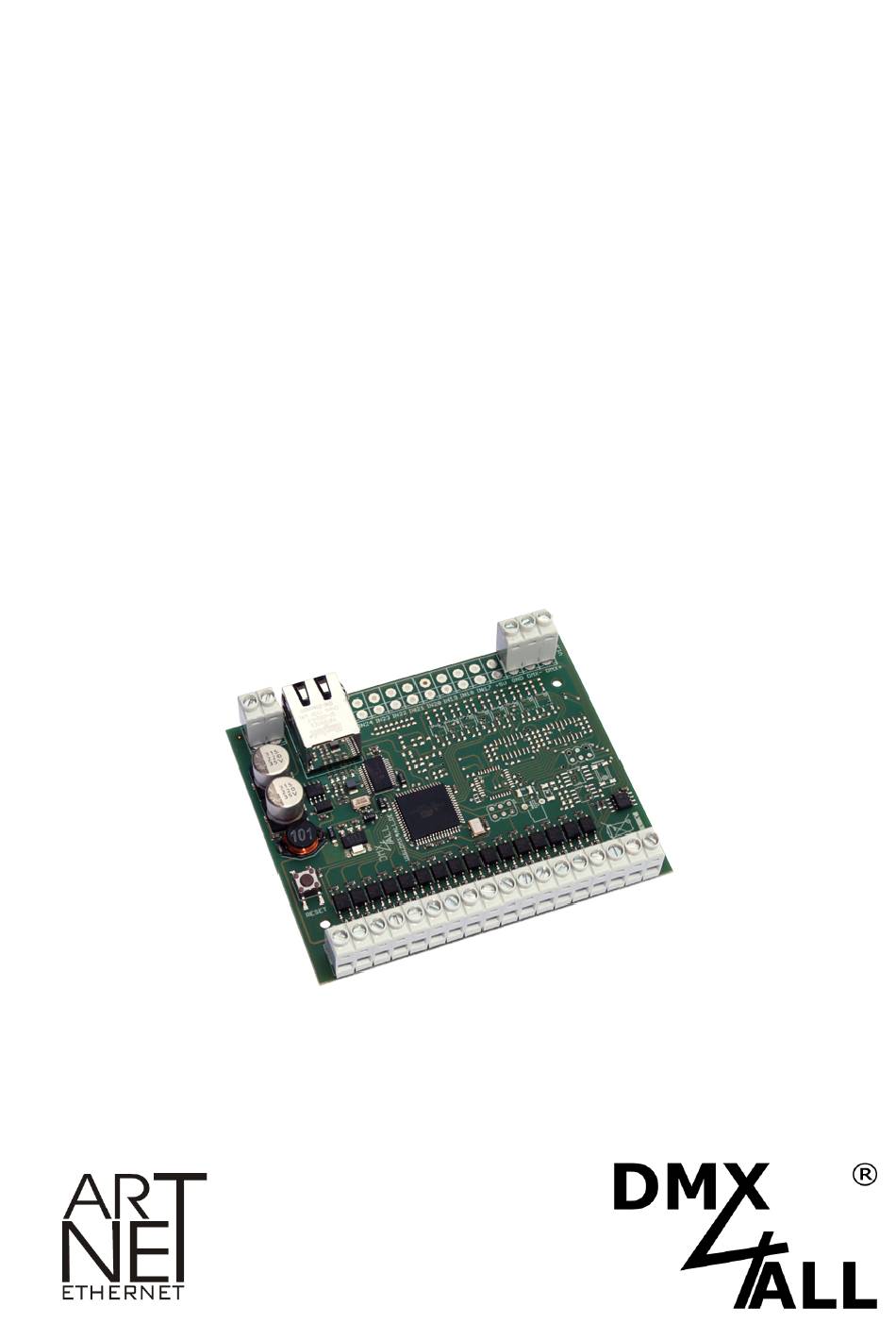

- Page 1 ArtNet-DMX Mux16 User Manual Art-Net™ Designed by and Copyright Alderamin Group Ltd.
- Page 2 To use future functions the ArtNet-DMX Mux16 offers a firmware update function. This can be started from the web browser so no access to the device is necessary! Top hat rail housing available The top-hat rail housing 1050 is available as accessory for the ArtNet-DMX Mux16.
-
Page 3: Data Sheet
ArtNet-DMX Mux16 Data sheet Power supply: 7-24V DC 0,4A@12V / 0,2A@24V Ethernet: RJ45 Output: DMX512 with 512 DMX channels Art-Net™ with 512 DMX channels Inputs: 16 Long Distance Digital Inputs Modes: Switch Button Switch button Dimmer UP Dimmer DOWN Dimmer UP/DOWN... - Page 4 ArtNet-DMX Mux16 Connection Ethernet POWER 12-24V DC DMX OUT ArtNet-DMX Mux16...
-
Page 5: Led Display
Set the IP with IP-Configurator The IP-Configurator allows the setting of the IP-Address and net mask also, if the net work settings of the PC are not in the IP-Range of the ArtNet-DMX Mux16. Install the program IP-Configurator Connect the ArtNet-DMX Mux16 with the net work and turn on the device. - Page 6 ArtNet-DMX Mux16 Set the IP with web browser The assigned IP-Address which will be used for the web-interface as well as for the ArtNet is within the delivery status 2.0.0.5 . Set the net work card of your PC to this IP-Range to call the IP-Address 2.0.0.5 via the web browser.
-
Page 7: Device Configuration
ArtNet-DMX Mux16 Device Configuration Call, via the address task at the web browser, the IP of the ArtNet-DMX Mux16 (delivery state: 2.0.0.5) to get the following configuration site: Main Device Parameter Each device needs an own IP-Address that the assignment occurs clearly within the network. - Page 8 ArtNet-DMX Mux16 ArtNet Output Parameter The ArtNet Output Parameter specify the values for the ArtNet™-Output. Net / SubNet / Port/Universe are the ArtNet™-Paramtere which define the aim. The Transmit Mode defines the data output via Art-Net™. Broadcast activates the ArtNet™ data output to all ArtNet™ devices.
-
Page 9: Digital Inputs
ArtNet-DMX Mux16 Digital Inputs The digital inputs are designed as LONG DISTANCE inputs which allow using longer supply pipes to the switching element. The inputs are controlled (actuated) with a switch or push-button against GND: For the LONG DISTANCE inputs we recommend not to exceed cable lengths of 25m. -
Page 10: Configure The Inputs
ArtNet-DMX Mux16 Configure the inputs The inputs are configured via web interface. Therefore, both configuration sides Input 1-8 and Input 9-6 are available. Per Input (Input) the Mode can be selected separately. The entering field Parameter specifies which function is to execute, e.g. which DMX channel is to set to which value. - Page 11 ArtNet-DMX Mux16 The entering field Parameter outputs the DMX channel as well as the DMX value The channel input occurs as decimal value from 1 up to 512. If several channels should be controlled via input, the single values must be entered separate and with a comma.
- Page 12 ArtNet-DMX Mux16 The following modes can be selected for each input: Switch (Switch) The mode Switch sets the DMX channels to the determined value as long as the input is controlled (activate). If the input is not controlled (not activate), so the value is 0 (0% / OFF).
- Page 13 ArtNet-DMX Mux16 Use digital inputs as binary inputs For the digital inputs there are the possibilities to build one output value away several inputs. In this case the input must be configured as Switch. The specification for the channels needs than a +=VALUE.
- Page 14 ArtNet-DMX Mux16 Send Wakeup On Lan (WOL) The ArtNet-DMX Mux 16 can send a Wakeup On Lan (WOL) message via ethernet in case of activate (press) an input For this the mode Button (Button) is to select and as parameter „WOL (xx-xx-xx-xx- xx-xx).
- Page 15 ArtNet-DMX Mux16 DMX-Output The ArtNet-DMX Mux 16 has a DMX-Output which can be used to connect DMX able devices directly. DMX OUT ArtNet-DMX Mux16 At the DMX-Output a DMX-Signal with 512 DMX channels will be outputted. The values of the DMX-Channels will be determined via the digital inputs and the configuration.
-
Page 16: Factory Reset
ArtNet-DMX Mux16 Factory Reset The ArtNet-DMX Mux 16 can be set into the delivery status via the button. Please proceed as follows: Turn off the device Push button and hold Turn on the device The yellow LED flashes Release button Push button again and hold The green and yellow LED flashes now for ca. - Page 17 ArtNet-DMX Mux16 Execute an Update The ArtNet-DMX Mux16 has an Update-Function which allows transferring prospective Firmware-versions. Please proceed as follows: Turn off the device Push button and hold Turn on the device The yellow LED flashes Loose button Generate a net-work connection to the PC...
- Page 18 ArtNet-DMX Mux16 Accessory Top-hat rail housing 1050 Power supply 12V / 20W Net work cable...
- Page 19 ArtNet-DMX Mux16 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
- Page 20 ArtNet-DMX Mux16 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
- Page 21 Germany Last Change: 27.05.2020 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
