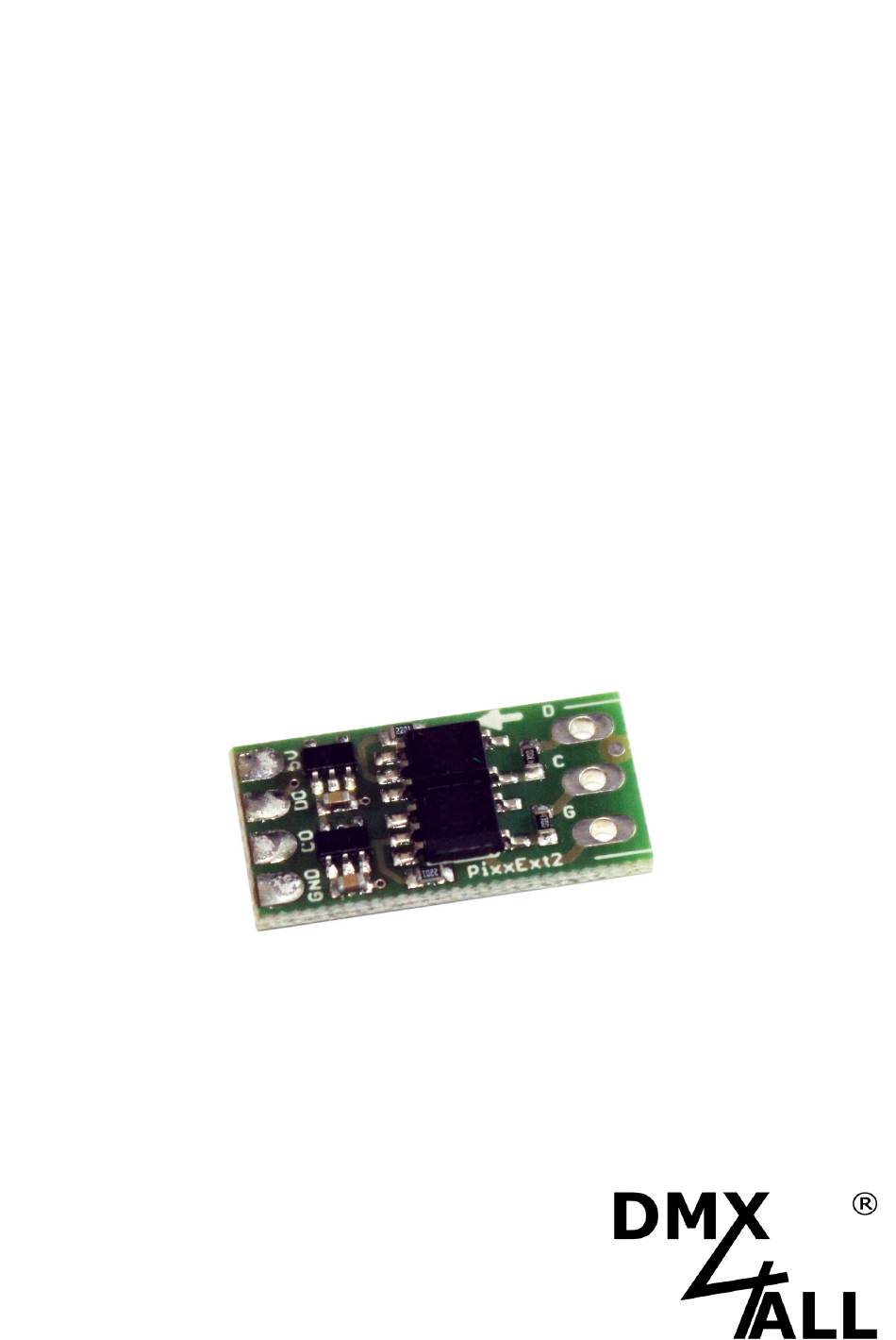

- Page 1 PixxRangeExtender 5V...

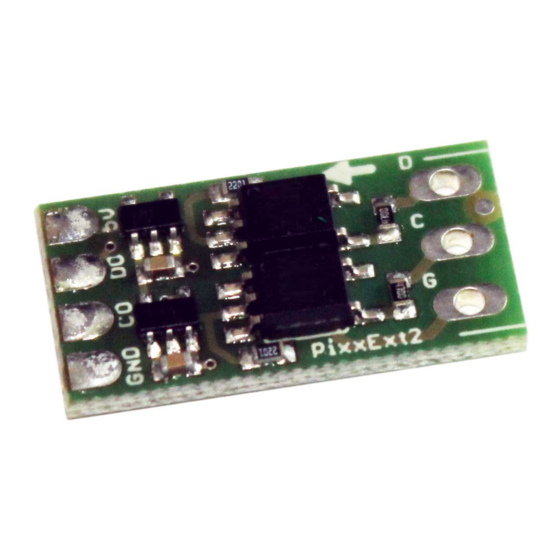

- Page 2 The PixxRangeExtender 5V is an optimal tool to bridge longer distances by using digital LED-Stripes. Therefore, the PixxRangeExtender 5V is to connect in front to the signal input of the digital LED-Stripe. Digital LED-Stripes with separated DATA- and CLOCK-Signal as well as digital LED- Stripes with only one DATA-Signal can be combined with the PixxRangeExtender 5V.
- Page 3 PixxRangeExtender 5V Connection Connection between Controller and digital LED-Stripe (CLOCK + DATA) PixxRangeExtender 5V digital LED-Stripe Controller Power supply Power supply Connection between two digital LED-Stripes (CLOCK + DATA) PixxRangeExtender 5V digital LED-Stripe digital LED-Stripe Power supply Only digital LED strips with 5V operation voltage of the same type may be...
- Page 4 PixxRangeExtender 5V Connection between Controller and digital LED-Stripe (DATA) PixxRangeExtender 5V max. 5 cm Controller LED-Stripe (e.g. SK6812) Power supply Power supply Connection between two digital LED-Stripes (DATA) PixxRangeExtender 5V max. 5 cm LED-Stripe (e.g. SK9822) LED-Stripe (e.g. SK9822) Power supply Only digital LED strips with 5V operation voltage of the same type may be used.
- Page 5 PixxRangeExtender 5V Compatible digital LED-Stripes The PixxRangeExtender 5V is compatible with digital LED strips with only one signal line or separate signal and data line. These are for example: APA-102 APA-104 SK6812 SK9822 WS2811 WS2812(B) TM1804 TM1812 TM1829 TLS3001 TLS3008...
- Page 6 PixxRangeExtender 5V CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
- Page 7 PixxRangeExtender 5V Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
- Page 8 D-44869 Bochum Germany Last changes: 08.06.2022 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
