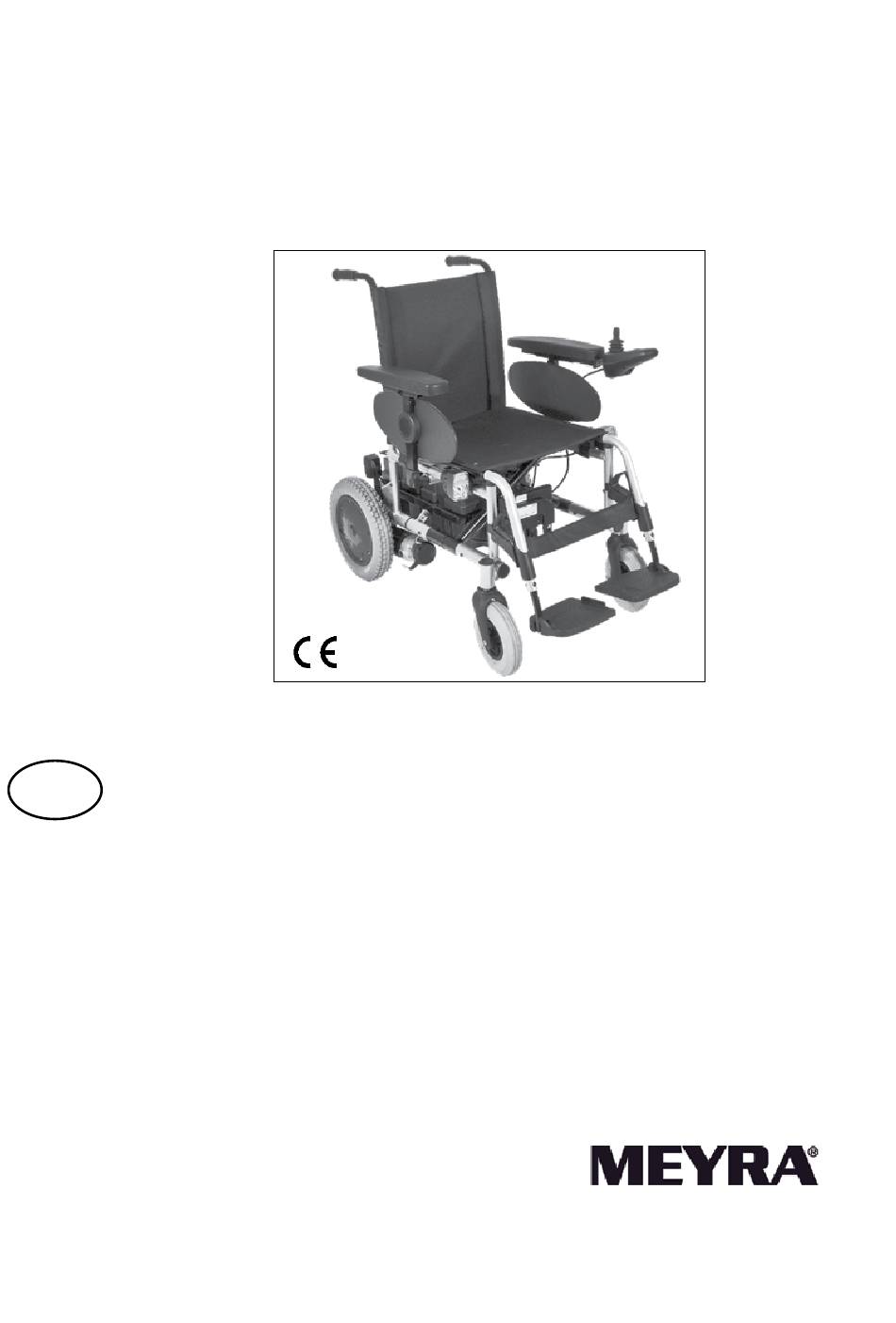

- Page 1 OPERATING MANUAL ELECTRIC WHEELCHAIR Model 9.500 from 2012-08 m o v e p e o p l e .
-
Page 2: Table Of Contents
Use ......................... 7 Life span ......................7 Information for the specialist dealer ..............8 Programming the driving behaviour .............8 Overview ....................... 9 Model: 9.500 ......................9 Driving behaviour ..................10 Handling the electric wheelchair .............. 10 Securing the electric wheelchair ...............10 Functional checks ....................10 Brakes ...................... - Page 3 Arm supports ....................16 Removing the arm support ................16 Inserting the arm support ................16 Adjusting the seat width ................16 Back support ....................17 Removing the back support .................17 Inserting the back support ................17 Adjustable back ....................18 Removing the back support upholstery ............18 Placing the back support upholstery ............18 Adjusting the angle of the back support ............19 Seat ......................
- Page 4 Fault correction ....................40 Technical data ..................... 41 Kilometric performance ..................41 Hill climbing ability ..................41 Model 9.500 ......................42 Meaning of the labels on the electric wheelchair ...........45 Meaning of the symbols on the type plate ............46 Inspection certificate ................. 47 Notes ......................48 Warranty / Guarantee .................
-
Page 5: Introduction
The model of your selection, fulfils PDF-files of the above mentioned doc- the wish for mobility and more inde- uments can be accessed on our web- pendence by way of a new styling of site < www.meyra.com >. the proven MEYRA technology. ☞ Contact your... -
Page 6: Indications
INDICATIONS ADJUSTMENT If the following indications occur we ☞ Note: recommend the application of this The first adjustment of the electric mobility product: wheelchair to the user as well as the required handling introduc- ☞ Walking disability resp. extremely tion is carried out by educated per- limited walking ability as part of sonnel. -
Page 7: Specifications
SPECIFICATIONS LIFE SPAN The electric wheelchair is an environ- We expect an average life span of ment-friendly electronic vehicle. It about 5 years for this product, as far was developed to extend the mobility as the product is applied for its des- of persons with health-related or age- ignated purpose and all maintenance related restrictions. -
Page 8: Information For The Specialist Dealer
Information for the special- Programming the driving behav- iour ist dealer The driving behaviour of the electric A service manual containing a check wheelchair can be adjusted through list for the annual inspection is avail- the programming device. able on request. ☞... -
Page 9: Overview
OVERVIEW Model: 9.500 The overview shows the most important components and operating devices of the electric wheelchair. Pos. Description 9 Push handle 1 Operating module 10 Drive battery 2 Back support upholstery 11 Support castor 3 Arm support 4 Drive wheel... -
Page 10: Driving Behaviour
DRIVING BEHAVIOUR HANDLING THE ELEC- TRIC WHEELCHAIR Optimising the driving characteristics of the electric wheelchair to your per- Securing the electric wheel- sonal situation is carried out by your chair specialist dealer. The electric wheelchair is to be se- The adaptability offers sufficient driv- cured as follows to prevent it from ing comfort as well as a high operat- rolling off unintentionally:... -
Page 11: Brakes
BRAKES Operating brake The motors work electrically as oper- ating brake and carefully brake the electric wheelchair down without jerks to stillstand. Braking the wheelchair For allotted braking of the wheelchair slowly guide the joystick (steering and lever) can otherwise lead to an driving lever) back to the centre posi- uncontrolled start of the electric tion (zero-setting). -
Page 12: Drive-/Push Mode
Drive-/push mode Attention: Only switch the electric wheelchair to push mode when it is standing still for positioning or in case of emergencies, but not on slopes/ hills. ☞ The electric magnetic brakes are switched off in the push mode. –... -
Page 13: Pre-Operation Checks
PRE-OPERATION CHECKS Before starting to drive, the following should be checked: – The battery charge level. – The preselected maximum final speed setting. ☞ For this observe the operating manual < Operating module >. – Position of the operating module. ☞... -
Page 14: Operating Module
OPERATING MODULE Function description You will find a detailed description of the keys and symbols in the operating manual for < Operating module >. Positioning the operating module Removing the operating module The position of the operating module can be adjusted to suit the individual To remove the operating module, size of the user. -
Page 15: Turning The Operating Module To The Side
Turning the operating module to the side With the optional swivel away operat- ing module adapter (1) the operating module can be swivelled back to the side (2) so that it is located parallel to the arm support. This makes it possi- ble, for example: –... -
Page 16: Arm Supports
ARM SUPPORTS The arm supports can be adjusted to your requirements in height by your specialist dealer. Attention: Do not use the arm supports to lift or carry the wheelchair. • Do not drive without the arm sup- ports! Removing the arm support Loosen the clamping screw (1) and re- move arm support toward the top. -
Page 17: Back Support
BACK SUPPORT The standard back support (1) can be removed for transport or storage pur- poses. Removing the back support Screw the attachment screws far out on both sides in order to remove the standard back support (3). Afterwards pull the back support off toward the top [2]. -
Page 18: Adjustable Back
Adjustable back The adjustable back is adjustable through a velcro strap on the span- ning straps (2). Removing the back support up- holstery For removal, first pull off the rear part of the back support upholstery (1), then fold it over to the front and pull it off of the adjustable back strap (3). -
Page 19: Adjusting The Angle Of The Back Support
Adjusting the angle of the back support Manual back angle adjustment with pneumatic spring The continuous angle adjustment of the back support is achieved through two pneumatic springs [1]. In order to adjust the back support, keep hold of the push handles and activate the release lever with the fin- gers. -
Page 20: Seat
SEAT Seat cushion The seat cushion is aligned with the anti-slip nodes to the front and placed onto the seat surface [1]. Unhooking the sear belt For folding or maintenance the seat belt can be unhooked on one side [2]. Inserting the seat Stretch the seat strap and press the re- taining pins of the seat belt bar into... -
Page 21: Leg Supports
LEG SUPPORTS Attention: Before any actions on the leg sup- ports the wheelchair is to be se- cured against unintentional rolling motions. ☞ Therefore observe chapter Se- curing the electric wheelchair on page 10. Calf belt The removable calf belt (1) prevents the feet from sliding off the back of the footplates. -
Page 22: Lower Leg Support
Lower leg support The footplates are to be folded up for entering or exiting the wheelchair [1]. ☞ Check the locking points! – Remove both feet from the foot- plates. – Remove the calf belt (2), if re- quired. ☞ Therefore observe chapter Calf belt on page 21. -
Page 23: Leg Support Upper Part
Leg support upper part The upper leg support with an in- serted lower leg support is termed leg support. Turning the leg supports to the side For easy transfer out of/into the elec- tric wheelchair as well as driving clos- er to a closet, bed or bathtub the leg supports can be swivelled away to- ward the in-/outside [1] and [2]. -
Page 24: Swivelling In The Leg Supports
Swivelling in the leg supports For inward swivelling, let the leg sup- ports swivel forward until the lock au- dibly engages [1]. ☞ Note: After audibly swivelling the leg supports inward check the respec- tive locking device. ☞ Afterwards observe chapter Lower leg support on page 22. -
Page 25: Removing The Leg Supports
Removing the leg supports For easy transfer into and out of the electric wheelchair as well as a re- duced wheelchair length (important for transport) the leg supports can be removed [1]. ☞ Note: Remove the calf belt before swivel- ling away the leg supports. -
Page 26: Mechanically Height-Adjustable Leg Supports
Mechanically height-adjust- able leg supports Attention: Never put the free hand into the adjustment mechanism while ad- justing the height adjustable leg support. – Danger of jamming! • Have the leg support that is to be adjusted secured against falling away by an accompanying person. -
Page 27: Stick-In Support Castors
STICK-IN SUPPORT CAS- TORS The insertable support castors [1] in- crease the stability against tipping over to the rear when crossing an ob- stacle or driving on a rising gradient as well as an anti-tipping device in push mode. They can be inserted [3] or pulled off for transport or storage. -
Page 28: Retaining Strap
RETAINING STRAP The retaining strap is placed behind the rear seat tube receptacle around the frame tube (1) and reattached with the sliding buckle. ☞ Note: The retrospective assembly of a re- taining strap is only to be carried out by a specialist workshop! Attention: The retaining strap is not part of the retaining system for the elec-... -
Page 29: Folding/Unfolding
FOLDING/UNFOLDING The electric wheelchair is also fold- able for transportation in an automo- bile [1]. Folding the electric wheelchair 1. Switch the operating module off ☞ Observe the operating manual < Operating module >. ☞ Therefore observe chapter 2. Remove the operating module Inserting / pulling out the in- (only necessary if there is insuffi- sertable support castors on... - Page 30 9. Lift out the batteries First you need to open the bat- tery retaining straps by pushing together the springs of the snap- catch [1]. Then lift out the batteries with their carrying strap and place them carefully to one side (2). 10 Fold the wheelchair For this pull up the ends of the bat- tery securing strap.
-
Page 31: Unfolding The Electric Wheelchair
Unfolding the electric wheelchair You unfold as follows: 1. Unfold the wheelchair Tip the electric wheelchair slightly to one side for unfolding. At the side resting on the floor, press the seat tube down to the end stop [1]. ☞ You may need to press down both seat tubes with the hands in order to do this. - Page 32 3. Reassemble previously removed components ☞ Carefully reattach all parts that were removed for folding! The procedure for assembly can be found in reverse order in chap- ter Folding the electric wheel- chair on page 29 Attention: Do not use the electric wheelchair without mounted leg supports, back support as well as arm sup- ports!
-
Page 33: Loading And Transportation
LOADING AND TRANS- PORTATION ☞ Do not use the back support, leg supports, arm supports or revet- ments to lift the electric wheel- chair! Attention: The electric wheelchair must be switched off before lifting! ☞ Therefore observe chapter Re- Loading moving the arm support on page 16. -
Page 34: Transport Security
☞ Note: Observe the guideline < Safety with Meyra-wheelchairs, also dur- ing transport in motor vehicles >! – This document and further in- formation can be accessed on our website < www.meyra.com > in the < Download Archive >. -
Page 35: Maintenance
MAINTENANCE An incorrect or neglected cleaning and maintenance results in a limita- tion of the product liability. Maintenance The following maintenance schedule gives you a guide for carrying out the maintenance. ☞ They do not give information about the actual extent of work required on the vehicle. -
Page 36: Maintenance Schedule
Maintenance schedule WHEN WHAT REMARK Before starting General Carry out test yourself or with a helper. Test for faultless op- eration. Checking the mag- Carry out test yourself or with a helper. netic brake If the electric wheelchair Move the selection le- can be pushed, have the ver for the drive/push brakes... - Page 37 WHEN WHAT REMARK Do it yourself or with the Every 6-8 weeks Wheel attachments aid of a helper. (depending on dis- Wheel nuts or screws tance covered) Securely tighten any loos- are to be checked for ened wheel nuts or screws tight fit and retighten again af- ter 10 operating hours or...
-
Page 38: Fuses
Fuses Replacing the fuses Before replacing fuses[1], park the electric wheelchair on a level surface and move the selection lever to the drive mode position to prevent the wheelchair from moving. Switch off the operating module. Attention: Only replace the safety fuse with a safety fuse of the same type! New fuses are available at gas stations or at specialist dealers. -
Page 39: Lighting
Lighting The lighting (1)+(2) is equipped with longlife LED-technology. ☞ Note: If a turn-signal bulb is defective, the remaining one blinks at double frequency. ☞ Immediately have a defective LED-lamp repaired by a special- ist workshop. Headlights The housing of the light (1) must be adjusted so that the light cone is vis- ible on the driving surface. -
Page 40: Fault Correction
Fault correction Fault Cause Remedy Battery indicator on Battery fuse is defec- Replace defective fuse the operating module tive or not correctly in- or clean contacts and does not light up after serted. insert correctly. the switch-on. Plug connection of the Check the plug connec- power supply without tions. -
Page 41: Technical Data
TECHNICAL DATA – reduced driving speed (especially at walking speed). Kilometric performance In practical use, the kilometric perfor- mance under 'normal conditions' is Kilometric performance depends to a then reduced to approx. 80 % – 40 % large extent on the following factors: of the nominal value. -
Page 42: Model 9.500
Model 9.500 All data within the following table relates to the standard version of the stated model. Dimensional tolerance ± 1 cm, ± 2°. Model: .......................9.500 Type plate: ........... rear, right at the bottom on the side frame Class of use as per DIN EN 12184: .............Class A + B Life span: ...................... - Page 43 Wheels: Steering wheel: ø 200 x 50 mm (8“) pneumatic tyres: ........(35 psi) max. 2.5 bar ø 200 x 50 mm (8“): ................puncture safe Drive wheel: ø 320 x 60 mm (12.5“) pneumatic tyres: ........(35 psi) max. 2.5 bar ø 320 x 60 mm (12.5“): .................puncture safe Transport dimensions: Length (incl.
- Page 44 Performance - mechanical (view Kilometric performance): obstacle height upwards: ............... max. 60 mm obstacle height downwards: ..............max. 50 mm Ground clearance (lowest component): ............55 mm Turning radius: ................approx. 1250 mm Turning area: .................. approx. 1250 mm max. permissible rising gradient: ............... 7° (12 %) max.
-
Page 45: Meaning Of The Labels On The Electric Wheelchair
Meaning of the labels on the electric wheelchair Attention! Read the operating manuals and other provided doc- umentation. Do not lift the electric wheelchair at the arm sup- ports or leg supports. Removable parts are not suited for carrying the ve- hicle. -
Page 46: Meaning Of The Symbols On The Type Plate
Meaning of the symbols on the type plate Manufacturer Order number Serial number Production date (Year – Calendar week) Permitted user weight Max. permissible total weight Permitted axle loads Max. permissible rising gradient Max. permissible falling gradient Max. permitted final speed The product is approved as a seat within a motor vehicle The product is not approved as a seat within a motor vehicle. -
Page 47: Inspection Certificate
INSPECTION CERTIFICATE Recommended safety inspection 1st year (at least every 12 months) Vehicle data: Stamp of specialist dealer: Model: Signature: Delivery note no.: Place, date: Serial-no. (SN): Next safety inspection in 12 months Date: Recommended safety inspection 2nd year Recommended safety inspection 3rd year (at least every 12 months) (at least every 12 months) Stamp of specialist dealer:... -
Page 48: Notes
NOTES... - Page 49 NOTES...
-
Page 50: Warranty / Guarantee
WARRANTY / GUARAN- Interferences through radiation sources such as mobile phones with high transmission power, HiFi-equip- ment and other extreme interference We accept legal liability for this prod- radiators outside of norm specifica- uct within the scope of or general tions cannot be declared as warranty terms and conditions and warranty or guarantee claims. -
Page 51: Warrantee / Guarantee Section
Warrantee / Guarantee section Please fill out! Copy if necessary and send the copy to the specialist dealer. Warranty / Guarantee Model designation: Delivery note no.: SN (view type plate): Date of delivery: Stamp of the specialist dealer: Inspection certificate for transfer Vehicle data: Serial-no. - Page 52 Your specialist dealer: MEYRA GmbH Meyra-Ring 2 · D-32689 Kalletal-Kalldorf P.O. Box 1 210 · D-32586 Vlotho Fon +49 (0)5733 922-311 Fax +49 (0)5733 922-9311 info@meyra.com www.meyra.com m o v e p e o p l e . 1 073 337 (Status: 2013-10) Original operating manual! Subject to technical modifications! •...
