- Page 1 Release Date: 2016 - 12 - 30 Instruction Manual High-Definition Link for Lexus Latest Firmware Date 2016 - 09 - 06 Manual Version Rev. 3.9 support@car-solutions.com car-solutions.com Language English...
-
Page 2: Table Of Contents
Contents • Cautions ______________________________________________________________ 3 • Dimension & Exterior __________________________________________________ 4 • Components & Optional Parts __________________________________________ 5 • Full Installation Diagram _______________________________________________ 6 • HDMI Connection Diagram _____________________________________________ 7 • Navigation Connection Diagram(Type B) ________________________________ 8 • Compatibility Chart for Navigation(GPS) Box Models ____________________ 9 •... -
Page 3: Cautions
Cautions Device related • You should check the names and colors of each wires exactly, before you connect the wires. ex) CAN HIGH: White wires / CAN LOW: Blue wires • The ‘POWER / CAN Cable’ should always be connected last and be disconnected first. •... -

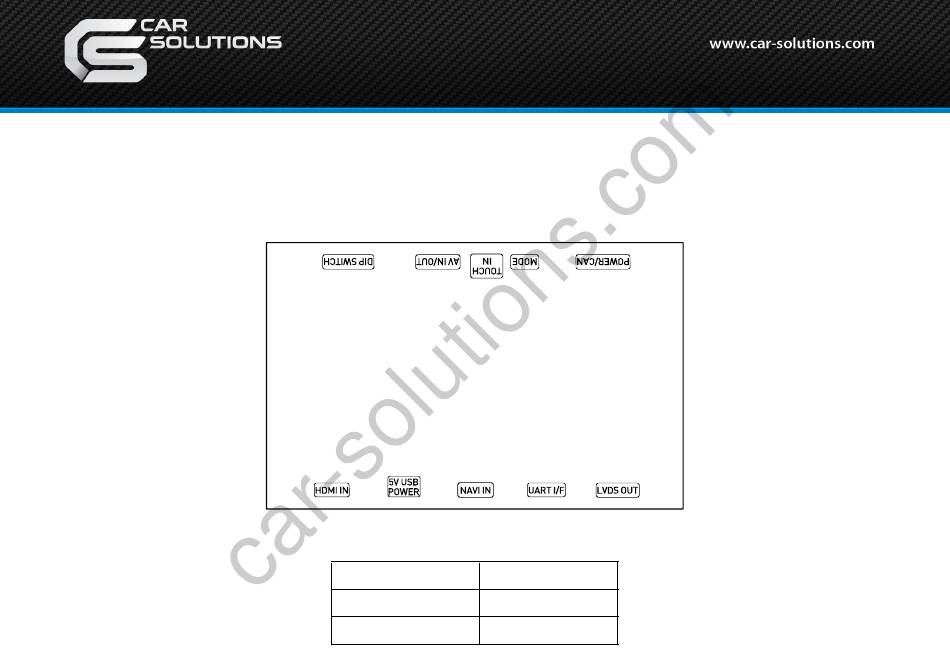

Page 4: Dimension & Exterior
Width: 142 mm Dimension Height: 22 mm Length: 91 mm ⓐ ⓑ ⓒ ⓓ ⓔ Exterior ⓐ DIP SWITCH ⓑ AV IN / OUT ⓒ TOUCH IN (Not Used) ⓓ MODE ⓔ POWER / CAN ⓕ HDMI IN ⓖ 5V USB POWER ⓗ... -
Page 5: Components & Optional Parts
Components POWER / CAN Cable GVIF-IN Cable GVIF-OUT Cable GVIF PCB HDMI Cable AV IN / OUT Cable 5-Pin Micro USB Cable (For GVIF) Optional Parts (sold separately) HDMI Cable HDMI Extender Mode Switch (Male to Male) (For stick type HDMI device) support@car-solutions.com car-solutions.com... -
Page 6: Full Installation Diagram
※ Cut the genuine No.2 wire(Blue)! Full Installation Diagram *24-Pin Connector Pin # 2 = Blue Wire ※ Optional External Devices Mode Switch (optional) RV-CAM Video Input NAVI 12V Power Output (NAVI 12V OUT) External Rear View 12V Power Output &... -
Page 7: Hdmi Connection Diagram
HDMI Connection Diagram HDMI Device HDMI Device HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI HDMI HDMI (5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device) (Male) (Female) (HDMI Extender) -
Page 8: Navigation Connection Diagram(Type B)
Navigation Connection Diagram(Type B) Navigation(GPS) Box Navigation(GPS) Box HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI Touch Screen Panel Touch screen panel (USB Cable is connected with the ‘N-Link’, only) I-NAVI X1 CUBE MICROCITY - N-Link support@car-solutions.com... -
Page 9: Compatibility Chart For Navigation(Gps) Box Models
Compatibility Chart for Navigation(GPS) box models Dip S/W Model Country Required Parts (Navigation) MICROCITY South Korea N-Link HDMI Cable USB A-A Cable (HDMI to HDMI) (USB to USB) ↑ MYVI South Korea MS1400 Digital OFF(↓): 1, 2, 3 HDMI Cable ON(↑) : 4 (HDMI to HDMI) ↓... -
Page 10: Gvif In / Out Connection Diagram
GVIF Connection Diagram GVIF Connection HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER ‘Display Audio’ Head Unit(OEM) HDMI (Provided GVIF IN Cable) GVIF (OEM GVIF Cable) IN / OUT (Provided GVIF OUT Cable) Cable • 'Genuine(OEM) GVIF Connector' should be connected to ‘GVIF IN Connector'. -
Page 11: Body Connector Specifications
Body Connector specifications MODE TOUCH-IN DIP SWITCH AV IN / OUT POWER / CAN Length: 20 cm Length: 100 cm Length: 150 cm BATTERY POWER INPUT RV-CAM VIDEO INPUT GND(RV-CAM VIDEO) GND INPUT RV-CAM POWER OUT GND OUTPUT(RV-CAM) NAVI 12V POWER OUTPUT REVERSE DETECTION IR OUT NAVI AUX INPUT R... -
Page 12: Car Compatibility Chart
Car Compatibility Chart Production Car Models Specific Models Year ES 300h 2014 - XV60 ES 350 2014 - XV60 CT 200h 2014 - IS 250 2014 - XE30 The device is used in combination with Lexus DISPLAY AUDIO SYSTEM. ES 300h PREMIUM (8-inch) ES 350 PREMIUM (8-inch) CT 200h SUPREME (7-inch) IS 250 PREMIUM (7-inch) -
Page 13: Activation By Original Buttons
Activation by original buttons Button Function Operation Remarks Changing Press the button 2 seconds Order: HDMI → NAVI → AV1 → AV2 → OEM Modes long. DISP < OEM → NAVI > Press the button 2 times quickly. Shortcut to <... -
Page 14: Dip Switch Settings
DIP Switch Settings ON: ▼ OFF:▲ No.6 No.7 No.8 No.9 No.10 Car Models ON(▼) OFF(▲) HDMI Mode Skip HDMI Mode OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) ES 300h, CT 200h, IS 250 ES 300h Navigation Mode Skip Navigation Mode OFF(▲) OFF(▲) OFF(▲) ON(▼) OFF(▲)
