Woodland MONTEREY 501 Assembly Instruction

Assembly Instruction for MONTEREY - Nr. 501

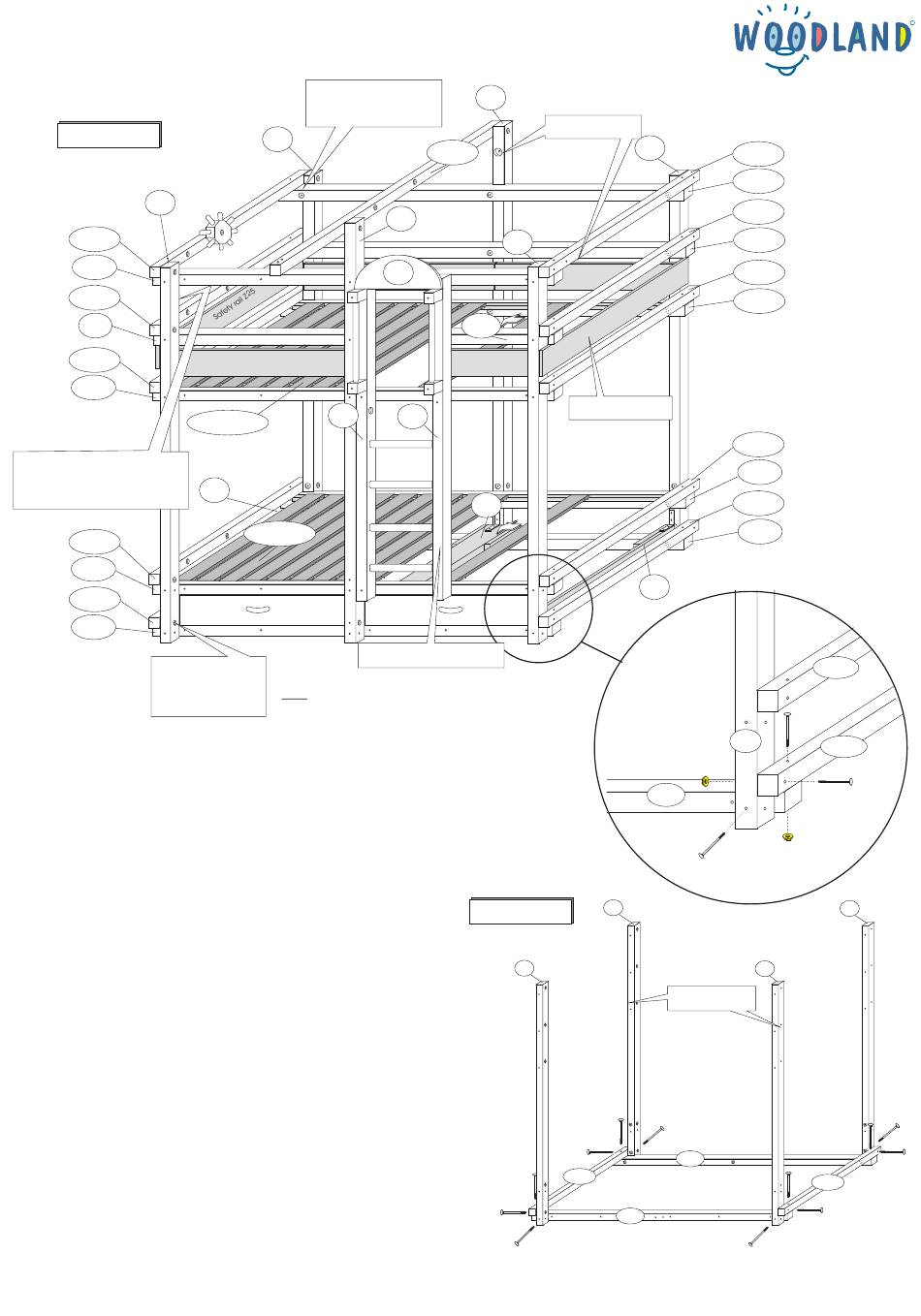

Diagram1.1 Diagram1.1
S1
W17
W7
W16
Z4
W15
W3
The upper surface of the
mattress may not go over the
marking on the beam S1.
W13
W2
W14
W1
Beam sides of
S1,S5,S6 and S8
with round indentations
should be facing to the
inside of the bed.
To begin:
1. Please take a moment to see how everything fits together
by using the diagram above. All the important building parts
have stickers to help you see how they fit into the overview.
Please note that there is a separate beam list as an
additional assembly aid. All beams are shown horizontally or
vertically as they should be positioned and assembled
together. The labels on the packages also help you to find
the content.
2. Wooden parts, if necessary, can be treated with wax or oil
before the assembly of the bed.
Advice: We advise you not to treat the bed to sustain better environment for
children (regulating humidity in the air). In addition it saves wax and oil costs
and offers the advantage that it is easy to clean with tissues and cloth. Two
further benefits: Untreated wood is easier for childrens hands to grip and
the natural colour of the wood stays longer.
3. For the assembly of the bed you need the following tools:
a ratchet with a size ten socket, a cross-end screwdriver
(better yet a cordless screwdriver with a changeable head
and size ten ratchet attachment) and a hammer.
Assistance is only necessary when assembling the corner
beams of the bed.
W-Beam sides with the most
indentations shold be placed
facing the inside of the bed!
S8
Safety rail Z24
screwed from inside
S3
B17-B32
F3
B1-B16
Ladder can be attached on the
left side next to S2.
Tip:
If you assemble back and arm rest-
boards please read the separate
assembly instruction before you start
building the bed!
S7
Conter-bored hole
for wall attachment.
W18
S2
S5
P1
Z11
Safety rail Z27
S4
F2
Diagram 1.2 Diagram 1.2
S1
WOODLAND reserves the right for printing errors © Copyrights by WOODLAND 1998
S6
Safety rail
Z26
Safety rail Z25
screwed from outside
F1
S5
W1
110mm-Flathead bolt
S8
Bolts at the lower part of S-Beams
should be screwed tightly, while the
upper part should be left loose to fit
Round indentations
facing inside
W8
W14
W1
R
W23
W12
W22
W11
W21
W10
W20
W9
W19
W8
W20
W19
flange
nut M6
S6
S5
W19
