Woodland WINNIPEG 505 Assembly Instruction

Assembly Instruction WINNIPEG No. 505

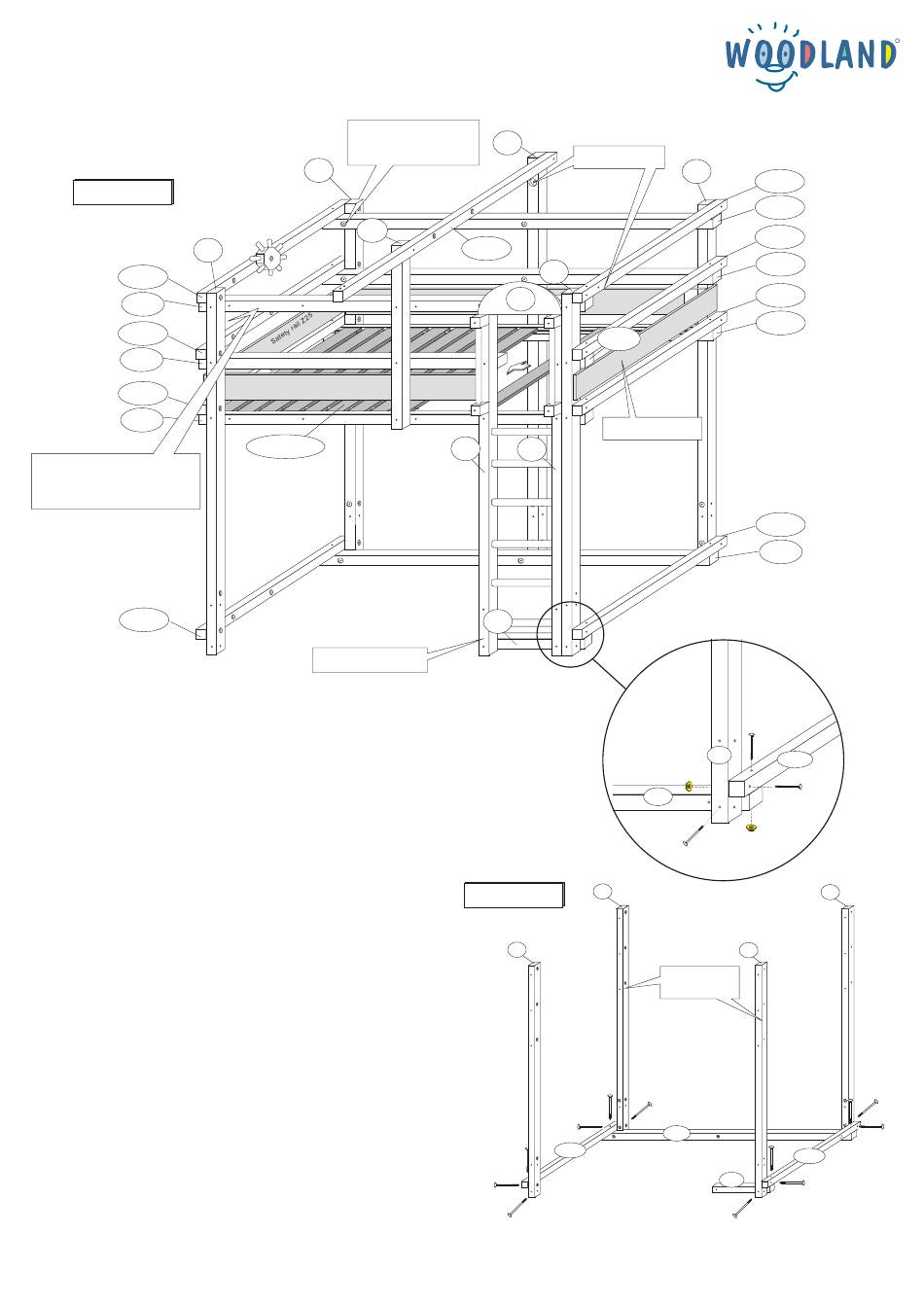

Diagram 1.1 Diagram 1.1
S1
W17
W7
W16
W5
W15
W3
The upper surface of the
mattress should not go over
the marking on S1 beam.
W13
To begin:
1. Please take a moment to see how everything fits together
by using the diagram above. All the important building parts
have stickers to help you see how they fit into the overview.
Please note that there is a separate beam list as an
additional assembly aid. All beams are shown horizontally or
vertically as they should be positioned and assembled
together. The labels on the packages also help you to find the
content.
2. Wooden parts, if necessary, can be treated with wax or oil
before the assembly of the bed.
Advice: We advise you not to treat the bed to sustain better environment for
the children (regulating humidity in the air). In addition it saves wax and oil
costs and offers the advantage that it is easy to clean with tissues and cloth.
Two further benefits: Untreated wood is easier for childrens hands to grip
and for the maintenance of the natural colour of the wood .
3. For the assembly of the bed you need the following tools: a
ratchet with a size ten socket, a cross-end screwdriver
(better yet a cordless screwdriver with a changeable head
and size ten ratchet attachment) and a hammer. Assistance
is only necessary when assembling the corner posts of the
bed.
W-Beams sides with most round
indentations should be facing
to the inside of the bed.
S8
S11
Safety rail
Z26
Safety rail Z23
attached from inside
B17-B32
Ladder can be set up
next to S5 or S1
S7
Large bored hole
for wall attachment
W18
S5
Safety rail
P1
Z26
W6
Safety rail Z24
attached from outside
Z1
Z2
Z6
S8
Diagram 1.2 Diagram 1.2
S1
W13
WOODLAND reserves the right for printing errors © Copyrights by WOODLAND 1998
S6
W23
W12
W22
W11
W21
W10
W19
W8
S5
W19
Z6
flange
nut M6
110mm-Flathead Bolt
Bolts at the lower part of S-Beams
should be screwed tightly, while the
upper part should be left loose to fit
mattress slats.
S5
Round
indentations
facing inside
W8
W19
Z6
R
S6
