Woodland AMARILLO 504 Assembly Instructions

Assembly Instructions for AMARILLO Pos. 504

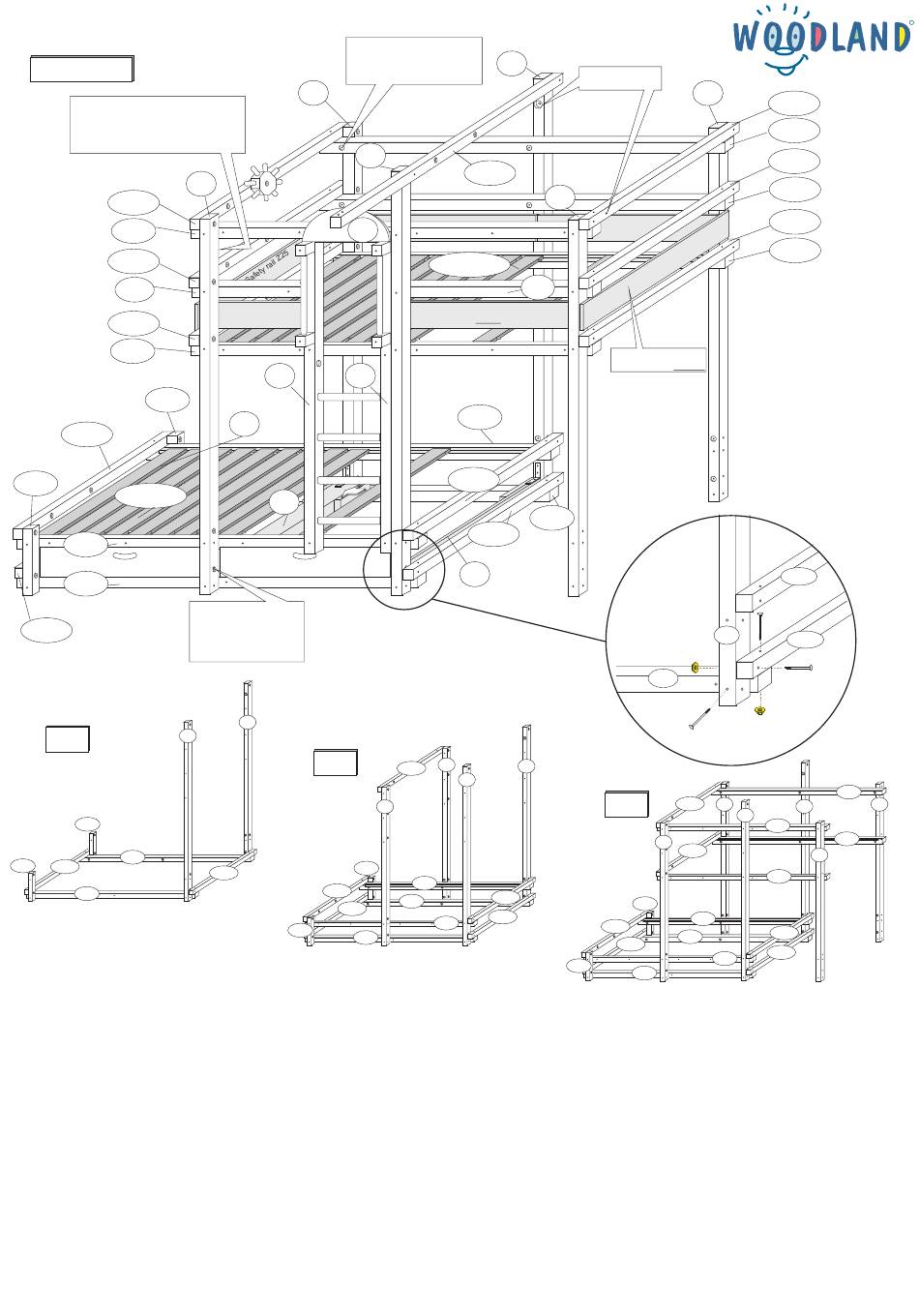

Diagram 1.1
The top side of the mattress
should not go over the
marking on the beam S1.
W17
W7
W16
Z11
W15
W3
Z30
W13
Z31
B1-B16
W2
W1
W14
1.
S2
Z30
W8
Z31
W14
W1

Before you start:

1. Before you start with the assembly take a look at each diagram. Every important beams have stickers on the end of the beam
so that you could easily recognise them. Please use the beam list as an additional help. Also there is a label on the boxes to
indicate the content of the box.
2. Wooden boards (if necessary) can be treated with wax or oil before assembly. Our tip: Untreated bed is better for the
environment of the room (regulating humidity in the air). Also you can save money and it is easier to clean and repair! Furthermore,
untreated wood is easier for the childrens hand to grip and better for the maintenance of natural colour.
3. For the assembly of the bunk bed the following tools are required: a ratchet with size 10 socket, a cross-end screwdriver (better
yet a cordless screwdriver with a changeable head and size 10 attachment) and a hammer. An assistant is necessary when
assembling the corner posts.
The side on W-Beams with
the most round indentations
should face the inside of the
bed.
S8
S2
S1
P1
Safety rail
Z27
S3 S4
F3
F2
Beams S1,S5,S6 and
S8 with round
indentations should
face the inside of
the bed.
S7
2.
Z30
W19
W13
W14
Z31
W1
S7
W18
S5
Safety rail Z26
B17-B32
Z4
Safety rail Z24
screwed from inside
W9
W20
W8
W19
F1
S8
S7
W17
S2
S1
W9
W20
W8
W19
W2
Not all specifications are guaranteed.
Hole for wall
attachment
S6
Safety rail
Z26
Safety rail Z25
screwed from outside
S2
W1
110mm Flathead Bolt
3.
W17 S8
S2
S1
W15
Z30
W9
W13
W8
W14
W2
Z31
W1
R
W23
W12
W22
W11
W21
W10
W20
W19
flange
nut M6
W12
S6
S7
W7
W10
S5
W3
W20
W19
© Copyrights by WOODLAND 1998
