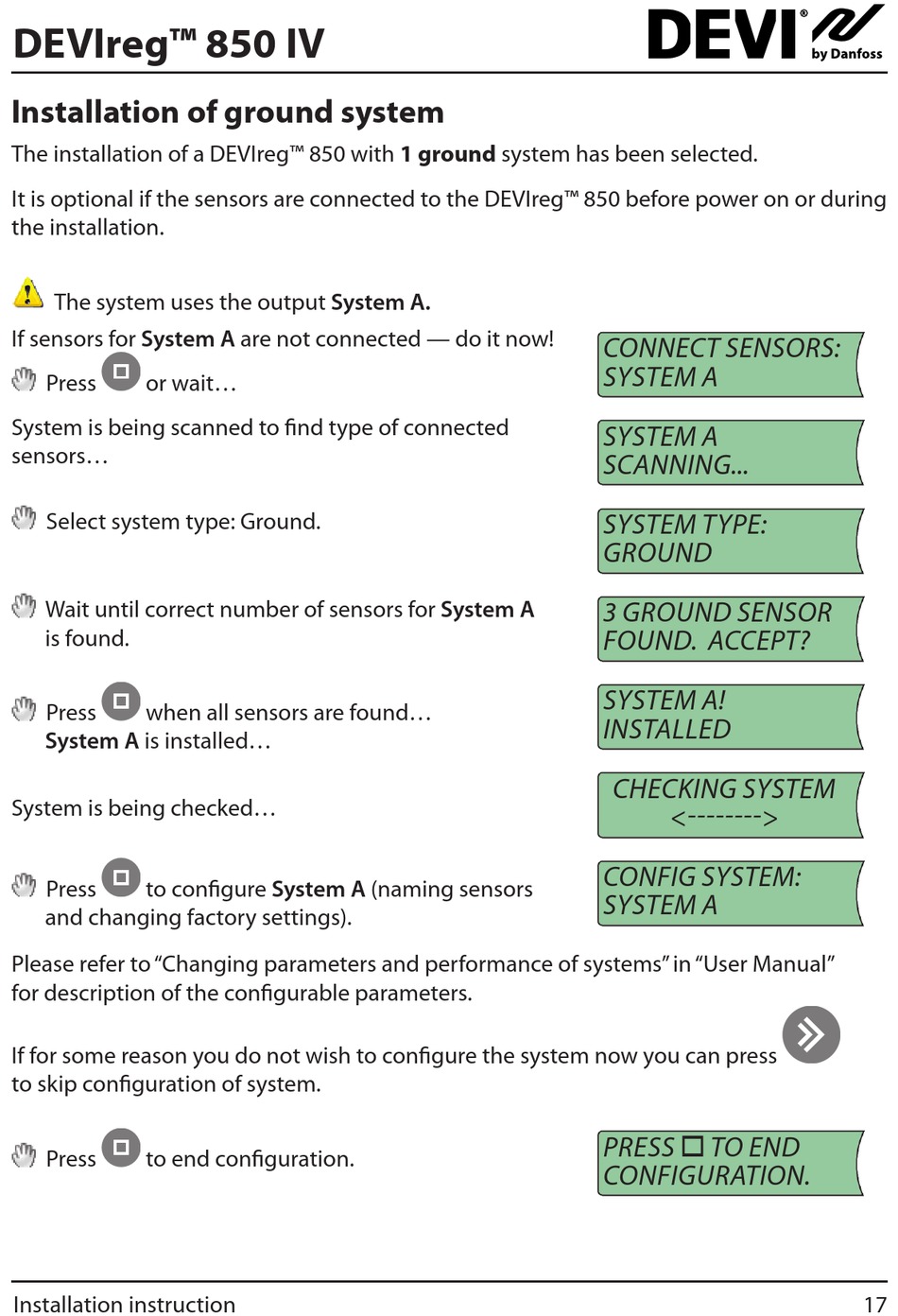

Danfoss DEVIreg 850 IV Installation Instruction page 17

DEVIreg™ 850 IV
Installation of ground system
The installation of a DEVIreg™ 850 with 1 ground system has been selected.
It is optional if the sensors are connected to the DEVIreg™ 850 before power on or during
the installation.
The system uses the output System A.
If sensors for System A are not connected — do it now!
Press or wait...
System is being scanned to find type of connected
sensors...
Select system type: Ground.
Wait until correct number of sensors for System A
is found.
Press when all sensors are found...
System A is installed...
System is being checked...
to configure System A (naming sensors
Press
and changing factory settings).
Please refer to "Changing parameters and performance of systems" in "User Manual"
for description of the configurable parameters.
If for some reason you do not wish to configure the system now you can press
to skip configuration of system.
Press to end configuration.
Installation instruction
CONNECT SENSORS:
SYSTEM A
SYSTEM A
SCANNING...
SYSTEM TYPE:
GROUND
3 GROUND SENSOR
FOUND. ACCEPT?
SYSTEM A!
INSTALLED
CHECKING SYSTEM
<-------->
CONFIG SYSTEM:
SYSTEM A
PRESS  TO END
CONFIGURATION.
