Sase PDG 3000 Manual

Planetary edger
Hide thumbs

Advertisement

Quick Links

Download this manual

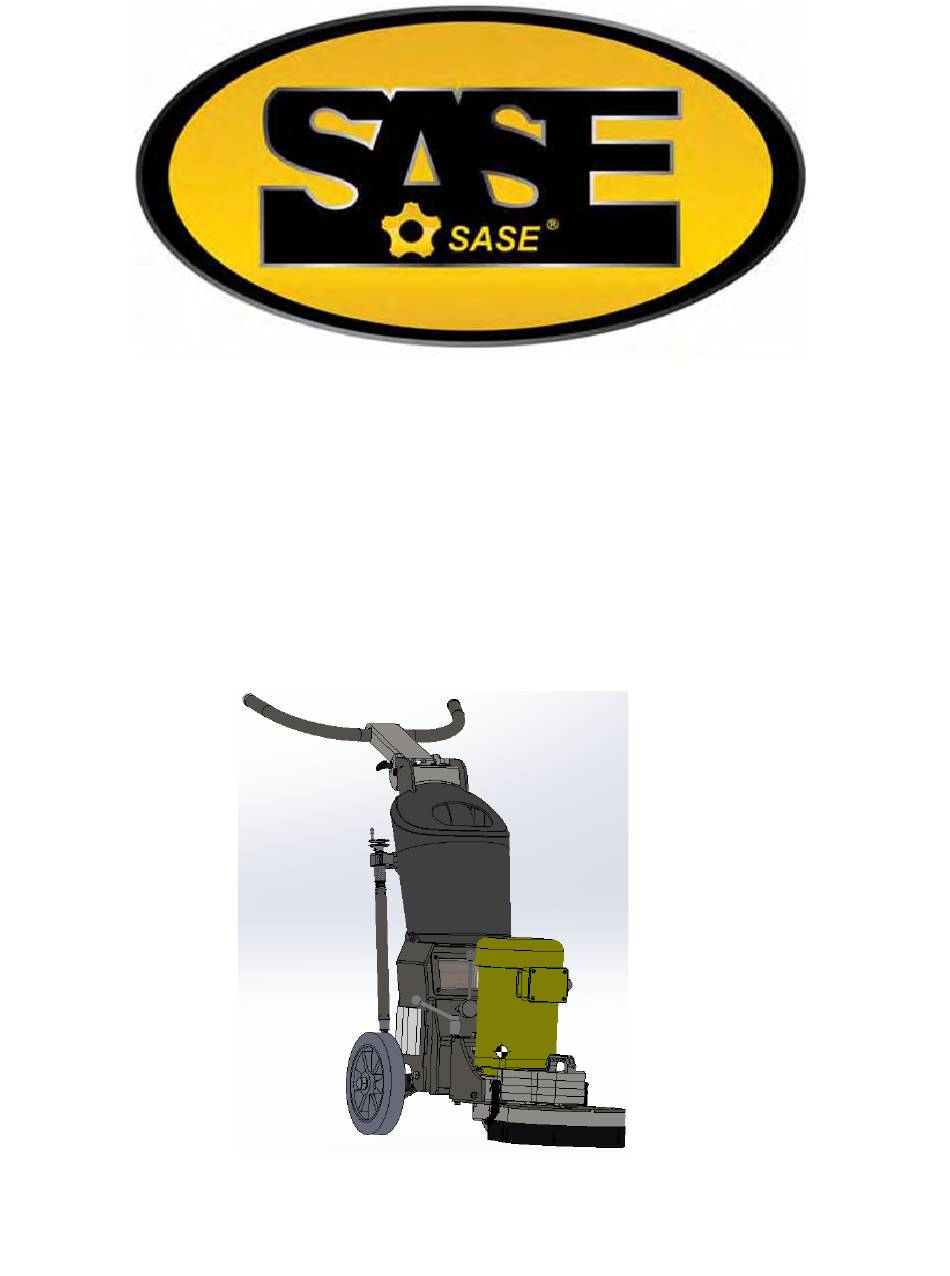

PDG 3000
230V / 460V
PLANETARY
EDGER
SASE Company, Inc.
Phone 800.522.2606 or Fax
877.762.0748
Version 2.0
www.SASECompany.com
01/01/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the PDG 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sase PDG 3000

Summary of Contents for Sase PDG 3000

  • Page 1 PDG 3000 230V / 460V PLANETARY EDGER SASE Company, Inc. Phone 800.522.2606 or Fax 877.762.0748 Version 2.0 www.SASECompany.com 01/01/2020...
  • Page 3 At SASE we engineer and manufacture our own equipment, which allows us to be in control of the quality of the equipment we sell. SASE offers a complete line of concrete preparation and polishing equipment, our newest intro- duction being our new line of PDG planetary diamond grinders, which is setting a new standard for the concrete grinding and polishing industry.

  • Page 5: Preventative Maintenance

    Set-Up Position the grinder in the working area. Make sure there are diamonds The SASE PDG 3000 planetary diamond grinder is designed to grind edges and underneath the machine, and that the head locks are tight. under toe kicks. Their applications range from rough grinding through to a polished finish.
  • Page 6 Determining Diamond Selection Proper diamond selection is one of the most important step in creating the perfect floor finish. Changing of Diamonds Diamond Background Different applications often require different selections of diamond tooling. Diamond abrasives usually consist of 2 components: There will be many occasions when the grinding discs need to be changed.

  • Page 7: Personal Safety

    Never use a machine that has been modified in any way from its safety instructions. original specification. Should the user fail to comply with these suggestions, SASE Company Inc. or its  Be on your guard for electrical shocks. Avoid having body contact with representatives are free from all liability both directly and indirectly.

  • Page 8: Safety Hazards

    Much care and attention has been given by Never use the machine if the cord is damaged, hand it in to an SASE to ensure maximum protection is given to the drive. authorized service workshop for repair.
  • Page 10 16 2X 16 2X 17 2X 14 4X 14 8X EXPLODED REAR VIEW EXPLODED FRONT VIEW P/N: PDG.33000.00 SASE COMPANY, LLC 26423 79TH AVE S, KENT, WA 98032 TITLE: PDG 3K FINAL SCALE: NONE WEIGHT: 273.4 lbs SHEET 2 OF 2...
  • Page 11 PDG3000 FINAL Item No. Part No. Description Qty. SEE PAGE 12 PDG 3K EDGER FRAME SUBASSEMBLY SEE PAGE 18 3K EDGER FRONT END ASSEMBLY PDG.45059.00 TANK DECAL, SET 3000 PDG.32105.00 PLUG, WATER FITTINGS PDG.32104.00 PDG.33010.00 PDG 3K EDGER INVERTER COVER PDG.30045.00 INVERTER KBVF-45 SEE PAGE 32...
  • Page 12 P/N: PDG.33001.10 SASE COMPANY, LLC 26423 79TH AVE S, KENT, WA 98032 TITLE: PDG 3K EDGER FRAME SUBASSEMBLY SCALE: NONE WEIGHT: 81.8 lbs SHEET 2 OF 2...
  • Page 13 PDG3000 FRAME Item No. Part No. Description Qty. PDG.33001.00 PDG 3K EDGER FRAME SEE PAGE 12 PDG 3K EDGER TILT PLATE ASSEMBLY PDG.33002.00 PDG 3K EDGER FRAME TILT PLATE ASSEMBLY PDG.33023.00 BEARING 6201-2RS SEE PAGE 16 PDG 3K EDGER BALL SCREW ASSEMBLY PDG.33003.00 PDG 3K EDGER FRAME SWIVEL BRIDGE PDG.33011.00...
  • Page 14 ZONE REV. DESCRIPTION DATE APPROVED 11 2X 10 2X ISOMETRIC VIEW (P/N: PDG.33012.03) EXPLODED VIEW SASE COMPANY, LLC 26423 79TH AVE S, KENT, WA 98032 TITLE: PDG 3K EDGER WHEEL ASSEMBLY SCALE: NONE WEIGHT: 14.9 lbs SHEET 1 OF 1...
  • Page 15 PDG3000 WHEEL Item No. Part No. Description Qty. SC.10.801 MOUNT, AXLE PDG.33012.00 PDG 3K EDGER SWINGARM LINK PDG.20255.60 AXLE BUSHING 5K PDG.45077.00 PDG5000 WHEEL NB.10.253 SCREW, HEX M20-2.5 X 160 ZINC NB.20.110 NUT, JAM M20 - 2.5 PDG.33021.00 BEARING, OIL EMBEDED FLANGED SLEEVE 20OD X 16 ID SC.10.802 AXLE, BRACKET SC.10.805...
  • Page 16 EXPLODED VIEW SASE COMPANY, LLC PDG.33005.00 26423 79TH AVE S, KENT, WA 98032 TITLE: PDG 3K EDGER BALL SCREW ASSEMBLY SCALE: NONE WEIGHT: 3.1 lbs SHEET 1 OF 1...
  • Page 17 PDG3000 BALL SCREW Item No. Part No. Description Qty. PDG.33015.00 BALL SCREW ASSEMBLY PDG.33006.00 PDG 3K EDGER BALL SCREW TOP ANCHOR PDG.33008.00 PDG 3K EDGER BALL SCREW BOTTOM ANCHOR PDG.33007.00 PDG 3K EDGER BALL SCREW ROD WELDMENT PDG.33020.00 KNURLED-RIM KNOB PDG.33009.00 PDG 3K EDGER BALL SCREW BRAKE KNOB NB.12.124...
  • Page 18 PLUG:1 RED X / 2 WHITE Y / 3 BLACK Z PDG.32102.00 X3; to inverter > Power-In (795.00.30 1/2 inch on each) PDG.32103.00 X1; to inverter > ground (795.00.30 1/2 inch on each) PDG 3000 Upper Box on Carriage SCALE: 1:6 WEIGHT: 109.40 SHEET 4 OF 4...
  • Page 19 Upper Box on Carriage Item No. Part No. Description Quantity Pages 26-27 GRIND HEAD ASSEMBLY Pages 30-31 FLEX HEADS NB.30.214 WASHER, LOCK M6 NB.12.108 SCREW, SOCKET HEAD CAP M6 -1.0 X 12 ZINC PDG.32055.00 BREATHER PDG.32096.00 GASKET, GEAR ACCESS COVER PDG.32022.00 COVER, GEAR ACCESS NB.11.104...
  • Page 20 PDG 3000 PLANETARY EDGER HEAD W/MOTOR SCALE: 1:6 WEIGHT: 109.38 SHEET 2 OF 2...
  • Page 21 MOTOR SET-UP Item No. Part No. Description Quantity PDG.32061.00 MOTOR NB.59.101 GRIP, CORD CONNECTOR 90 MALE 0.50-0.63 NB.20.146 NUT, 3/4" METAL CONDUIT LOCK NB.18.141 SET SCREW, M5 .8 X 8 CUP POINT PDG.32021.00 SHEAVE, MOTOR PDG.32025.00 HOUSING, UPPER BELT NB.30.212 WASHER, LOCK M8 ZINC NB.10.114 SCREW, HEX M8 X 20 ZINC...
  • Page 22 Default Torque Torque 20 ft-lb Silicone after cover is on You need to take it easy with these Just Close the lock washer 14 14 13 13 PDG 3000 GRIND HEAD ASSEMBLY SCALE: 1:8 WEIGHT: 108.77 SHEET 1 OF 7...
  • Page 23 GRIND HEAD ASSEMBLY Item No. Part No. Description Quantity PDG.32005.00 GEAR, RING NB.50.155 PIN, DOWEL M6 X 10MM PDG.32095.00 GASKET, RING GEAR PDG.32064.00 CARRIAGE, WELDED FRAME PART SCREW, FLAT HEAD TORX SOCKET CAP M6 -1.0 X 20 NB.13.116 PDG.32060.00 SEAL, V-RING 220 VL R NB.13.214 SCREW, FLAT HEAD SOCKET CAP M8-1.25 X 14 10.9 ZINC Pages 26-27...
  • Page 24 READ TAPER LOCK INSTRUCTIONS FOR TORQUE PROCESS OF SET SCREWS PDG 3000 TRANSFER SHAFT TORQUE 10 FT*LB ASSEMBLY Red LocTite SCALE: 3:7 WEIGHT: 2.83 SHEET 1 OF 1...
  • Page 25 TRANSFER SHAFT Item No. Part No. Description Quantity PDG.32017.10 HOUSING, TRANSFER SHAFT BEARING PDG.32043.00 BEARING, 32005X PDG.32048.00 SEAL, 40 X 47 X 4 PDG.32019.10 RING, IDLER SHAFT SPACER PDG.32018.00 SHAFT, TRANSFER NB.70.123 KEY, SQUARE M8 X 20 PDG.32044.00 SPROCKET, P22-8MGT-30-1108 PDG.32045.00 BUSHING, TAPER LOCK 1108 25MM PDG.32020.00...

  • Page 26: Carrier Assembly

    Default Torque Red LocTite Silicone PDG 3000 No Specified Torque CARRIER ASSEMBLY Blue LocTite SCALE: 1:5 WEIGHT: 14.62 SHEET 1 OF 1...
  • Page 27 CARRIER ASSEMBLY Item No. Part No. Description Quantity PDG.32003.00 CARRIER PDG.32041.00 BEARING, 3206 PDG.32007.01 SPACER, STATIONARY BEARING (NO LONGER A RETAINING RING AS SHOWN) PDG.32004.00 SPINDLE, STATIONARY NB.50.157 PIN, DOWEL M8 X 16MM NB.40.134 RING, SMALLEY EXTERNAL RETAINING M30 Pages 28-29 PLANETARY ASSEMBLY PDG.32042.00 SEAL, 35 X 42 X 4...

  • Page 28: Planetary Assembly

    Default Torque PDG 3000 PLANETARY ASSEMBLY SCALE: 1:5 WEIGHT: 0.39 SHEET 1 OF 1...
  • Page 29 PLANETARY ASSEMBLY Item No. Part No. Description Quantity NB.50.155 PIN, DOWEL M6 X 10MM PDG.32000.00 AXLE, PLANETARY PDG.32040.00 BEARING, 3204 NB.70.122 KEY, SQUARE M5 X 16 PDG.32001.00 GEAR PDG.32002.00 RETAINER NB.13.218 SCREW, FLAT HEAD SOCKET CAP M8 -1.25 X 20...
  • Page 30 DRIVING PLATE FASTENS TO SPRINGS DRIVING PLATE AND SPRINGS FASTEN TO DRIVEN PLATE W/PINS PDG 3000 FLEX HEAD ASSEMBLY SCALE: 1:10 WEIGHT: 0.87 SHEET 1 OF 1...
  • Page 31 FLEX HEAD ASSEMBLY Item No. Part No. Description Quantity SCREW, HEX M6 X 8 NB.10.141 PDG.32010.10 SPRING, FLEX HEAD PDG.32008.00 PLATE, DRIVING PDG.32012.00 STANCHION, FLEX HEAD SCREW, HEX M6 X 10 NB.10.142 PDG.32011.00 BUMPER, FLEX HEAD PDG.32009.00 PLATE, DRIVEN PDG.32059.00 MAGNET SET SCREW, M5 .8 X 8 CUP POINT NB.18.141...
  • Page 32 SASE COMPANY, LLC 26423 79TH AVE S, KENT, WA 98032 TITLE: PLANETARY EDGER WEIGHT ASSEMBLY SCALE: NONE WEIGHT: 17.66 lbs SHEET 1 OF 1...
  • Page 33 WEIGHT Item No. Part No. Description Quantity PDG.32062.30 PLANETARY EDGER WEIGHT LAYERED PDG.32093.00 PLANETARY EDGER WEIGHT RUBBER RFOOT PDG.20274.00 JEEP RUBBER STRAP PDG.80134.00 PULL HANDLE NB.12.095 SCREW, SOCKET HEAD CAP M5 -1.0 X 35 ZINC...
  • Page 34 230V TRIM POTS DEC/B COMP 460V TRIM POTS DEC/B COMP SASE COMPANY Inc. EDGER CONTROLLER SETTINGS...
  • Page 35 (1) year from original date of purchase. In the event that you should have a claim SASE shall repair, replace or remedy the defective parts resulting from the faulty design, materials or workmanship. Note: This warranty is only valid for equipment either sold by SASE or by an authorized wholesaler or distributor.

  • Page 36: Product & Warranty Registration

    SASE PRODUCT & WARRANTY REGISTRATION WARRANTY IS VOID IF NOT RETURNED AND REGISTERED WITH SASE WITHIN 30 DAYS OF PURCHASE COMPANY NAME AND TITLE STREET ADDRESS CITY STATE COUNTRY PHONE EMAIL DATE OF PURCHASE SERIAL NUMBER INVOICE NUMBER OF PURCHASE...
